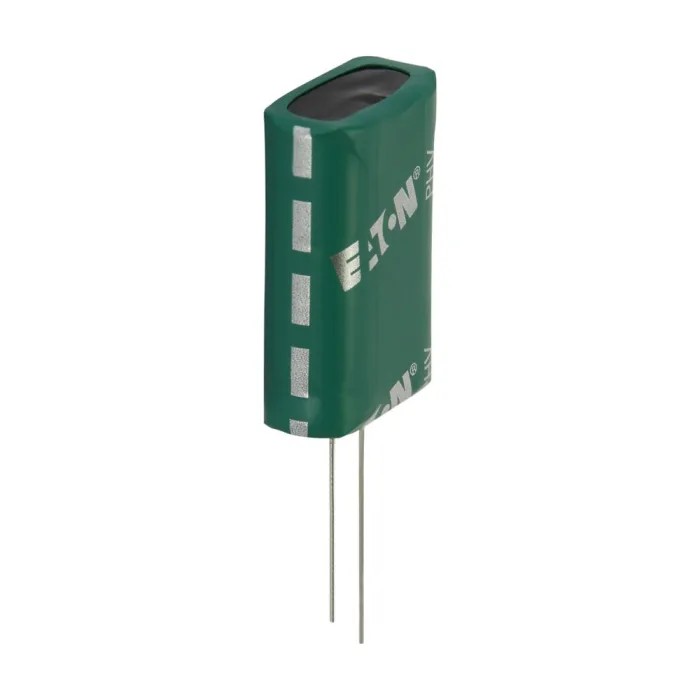

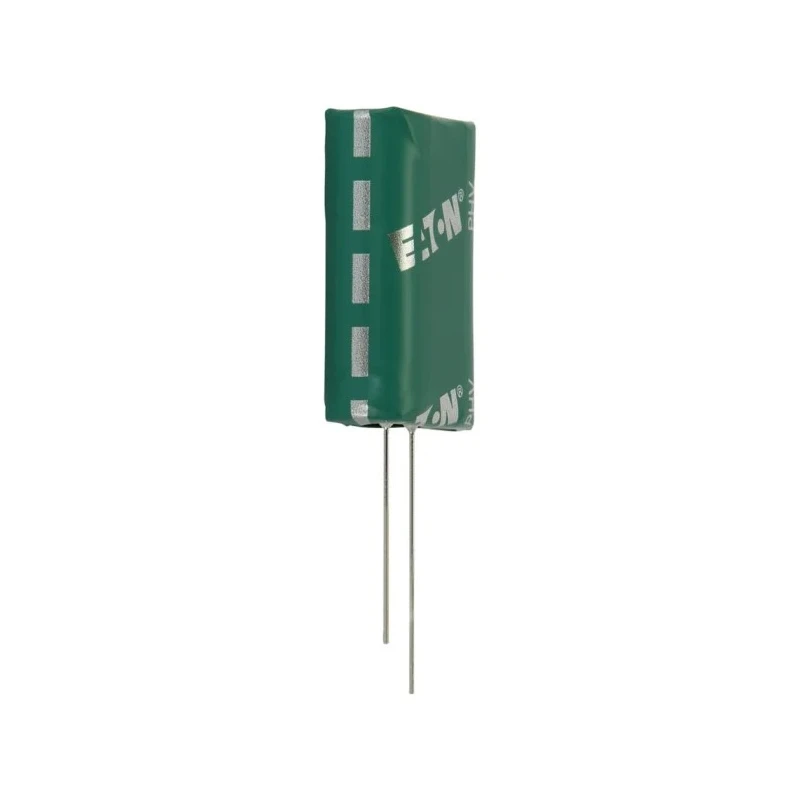

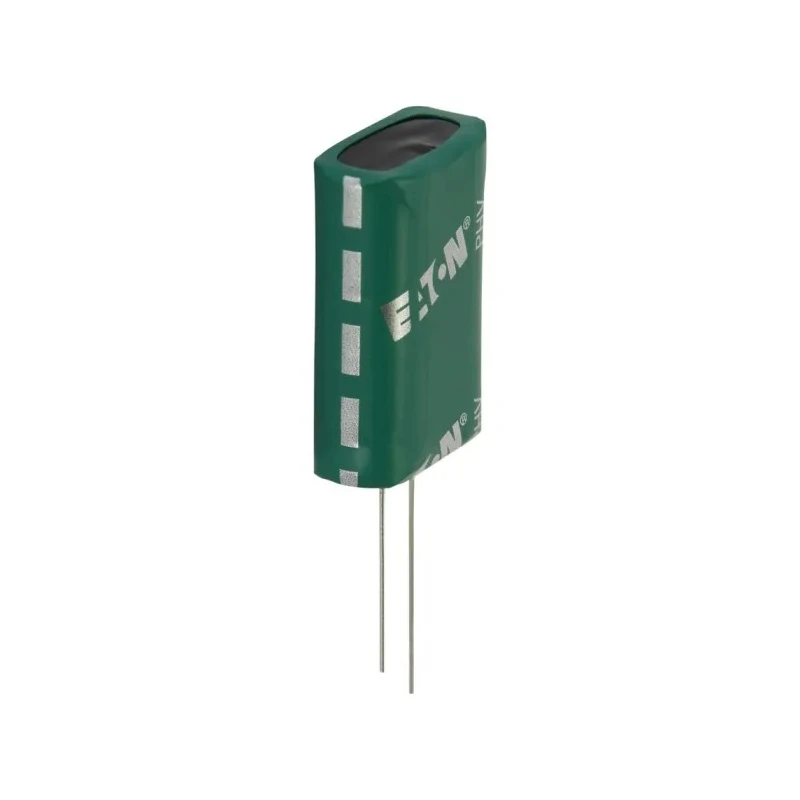

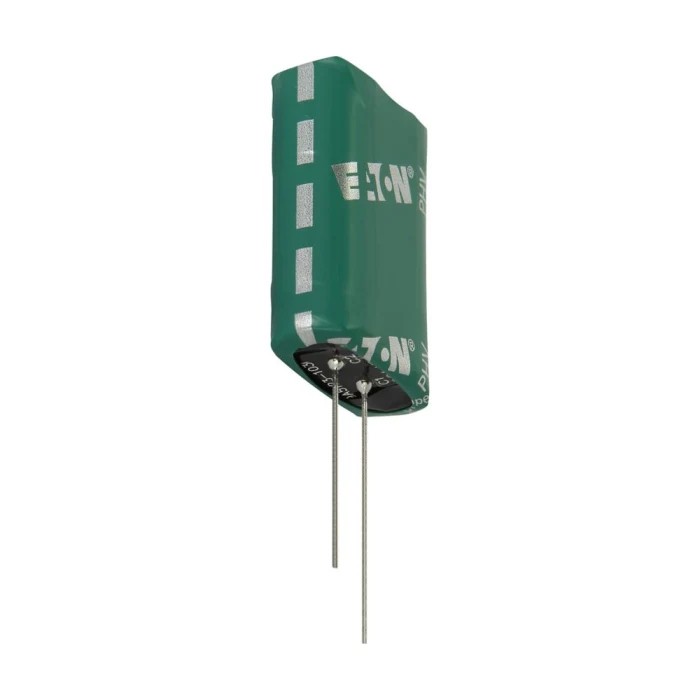

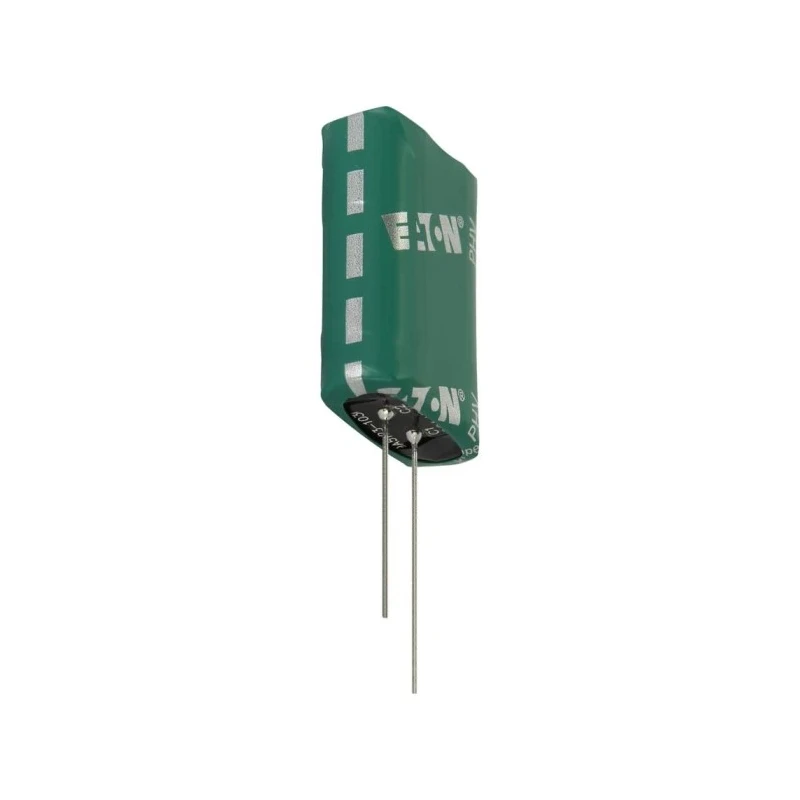

Eaton 5 F Supercapacitor -10 to 30 % Tolerance, 5.4V DC Through Hole PHV-5R4V505-R

Eaton PHV-5R4V505-R is a 5 F supercapacitor from the Supercap PHV series offering a capacitance tolerance of -10 to +30% and a rated voltage of 5.4V DC. This through-hole mounted supercapacitor features a robust cylindrical package with a diameter of 21.3mm and height of 32.5mm, ideal for incorporation into electronic assemblies that require high capacitance in compact form.

The device benefits from ultra-low equivalent series resistance (ESR) of 70mΩ, minimizing power loss and enhancing charge/discharge efficiency. It operates reliably across a wide temperature range of -40°C to 65°C, enabling use in demanding industrial, automotive, and power electronics applications. Polarity is clearly marked to prevent installation errors, and it withstands surge voltages up to 6V, contributing to enhanced operational safety.

Constructed with advanced carbon electrodes and corrosion-resistant aluminium foil, the supercapacitor delivers long-term reliability with a rated lifetime of 1000 hours. Leakage current is maintained at a low 28μA, ensuring efficient performance without significant energy loss. The component is packaged in a solder terminal with 0.6mm lead diameter and 5.3mm lead pitch, facilitating easy PCB integration.

Compliant with RoHS directives, the Eaton PHV-5R4V505-R supercapacitor is free from lead and halogen, making it safe and environmentally responsible. Its application spectrum spans industrial electronics, power supply decoupling, energy harvesting, and backup power circuits.

Ultra-low ESR minimizes energy loss and improves charge efficiency. Wide operating temperature range of -40°C to 65°C ensures endurance in harsh conditions. Clearly marked polarity for reliable and accurate installation.

6V surge voltage rating for enhanced safety of user and equipment. Compact cylindrical package with dimensions suitable for dense PCB layouts. RoHS compliant, free from hazardous substances like lead and halogen. Low leakage current supports long-term stable operation.

Advanced carbon electrodes and aluminium foil improve corrosion resistance and durability.

This supercapacitor is ideal for industrial, automotive, laboratory, and power electronics applications demanding high capacitance, fast charge/discharge ability, and stable performance under varying environmental stresses. Browse Eaton Supercapacitors and related components for reliable energy storage solutions at EnvMart.
