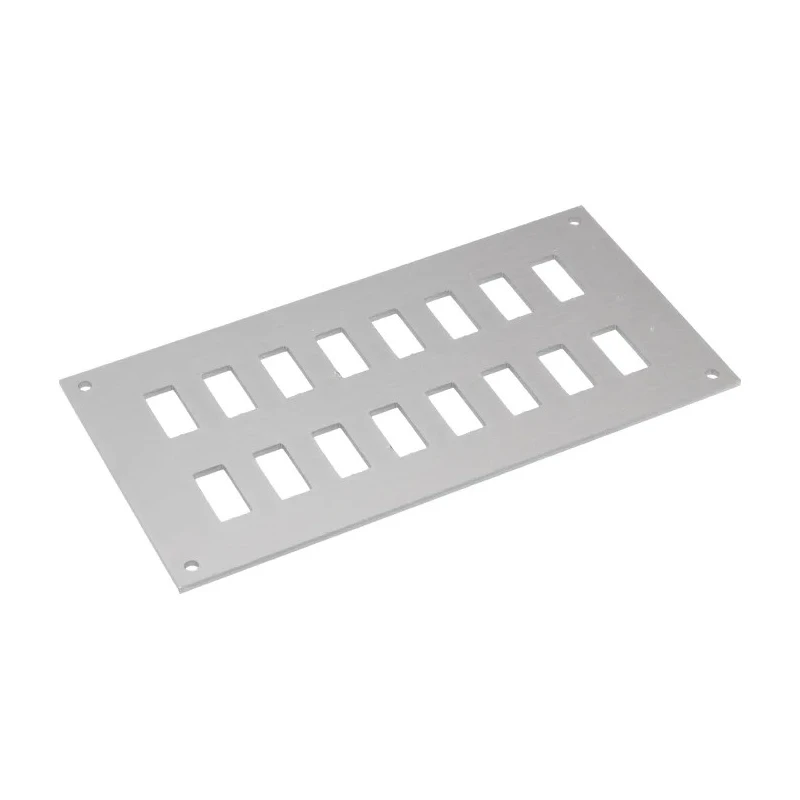

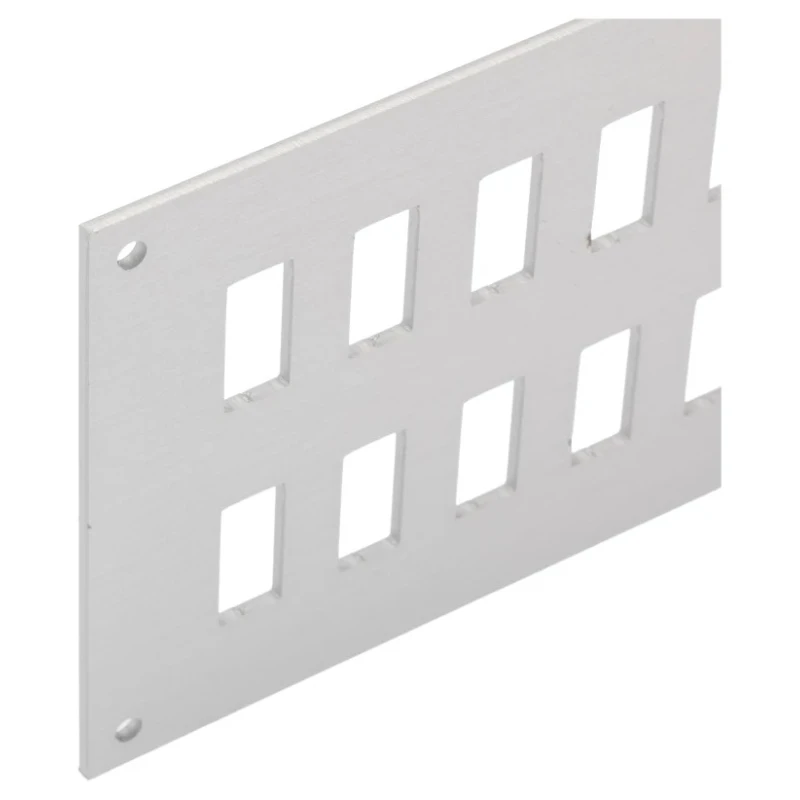

RS PRO Thermocouple Panel for Use with Up To 16 Fascia Sockets, RoHS Standard 762-1156
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Height | Standard 66mm, Miniature 45mm |
| Model | 762-1156 |
| Accessory Type | Thermocouple Panel |
| For Use With | Up To 16 Fascia Sockets |
| Standards/Approvals | RoHS |
Key Features
- Anodised aluminium faceplates with etch matt and satin finish provide durability and corrosion resistance.
- Faceplates suitable for mounting standard 66mm height and miniature 45mm fascia panel thermocouple sockets.
- Features 4 fixing holes of 3.25mm diameter spaced 5mm from each edge for secure mounting.
- Available in miniature panels from 2 to 24 ways and standard panels from 1 to 6 ways with various row configurations.
- Designed for installation in industrial automation, electrical control panels, and sensor accessory applications.
Product Description
RS PRO 762-1156 Thermocouple Panel is a high-quality accessory designed for mounting thermocouple sockets with compatibility for up to 16 fascia sockets. Manufactured with anodised aluminium, the panel faceplates offer robust construction with an etch matt and satin anodised finish that ensures long-lasting durability and corrosion resistance.
The panel accommodates both miniature fascia panels (45mm height) and standard fascia panels (66mm height). Its length can be accurately determined using the formula: Standard panels length is (19 x n) + 31 mm and miniature panels length is (15 x n) + 25 mm, where 'n' represents the number of ways or sockets to be mounted. The panel includes four fixing holes, each 3.25mm in diameter and positioned 5mm from the edge, facilitating reliable and easy panel mounting.
The miniature size panels are available in various configurations ranging from 2, 4, 6, 12, 16, 20, to 24 ways, while the standard size panels come in 1, 2, 3, 4, and 6 way configurations. For capacities of up to 12 ways, panels are arranged in a single row; larger panels include two rows to accommodate the additional sockets (e.g., 16 ways in two rows of eight).
Designed to meet RoHS regulatory standards, this thermocouple panel is ideal for use in industrial automation, control panels, HVAC systems, laboratory sensor equipment, and electrical monitoring applications. Its compatibility with a wide range of fascia sockets makes it a versatile component in sensor accessory installation.
Anodised aluminium faceplates providing resistance to corrosion and wear. Compatible with both miniature and standard fascia thermocouple sockets. Configurable panel lengths based on number of socket ways using standardized formulas.
Multiple fixing holes ensure secure and precise mounting. A range of panel size options from 1 to 24 ways accommodating different installation needs. RoHS compliant for environmentally safe use in industrial and electrical environments.
Explore a variety of Sensor Accessories and related industrial electrical components on EnvMart for your automation and control gear requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermocouple panel can accommodate up to 16 fascia sockets.
The faceplates are available in two heights: standard at 66mm and miniature at 45mm.
The panel is constructed from anodised aluminium, providing durability and corrosion resistance.
The panel features four fixing holes, each 3.25mm in diameter, spaced 5mm from each edge for secure mounting.
Miniature panels are available in configurations of 2, 4, 6, 12, 16, 20, and 24 ways.
Standard panels come in configurations of 1, 2, 3, 4, and 6 ways.
This thermocouple panel is designed to meet RoHS regulatory standards, ensuring environmentally safe use.
It is suitable for use in industrial automation, electrical control panels, HVAC systems, and laboratory sensor equipment.
The length of the standard panels is calculated using the formula: (19 x n) + 31 mm, and for miniature panels, it is (15 x n) + 25 mm, where 'n' is the number of sockets.
It is compatible with both standard 66mm height and miniature 45mm height fascia thermocouple sockets.
The thermocouple panel is manufactured in India.
The accessory type of this product is a thermocouple panel.
