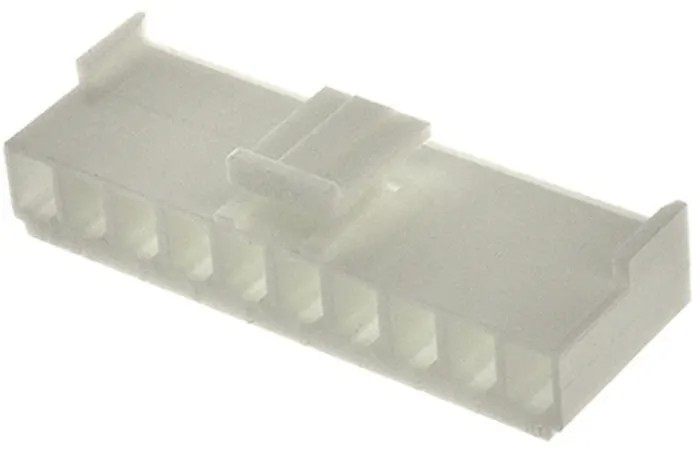

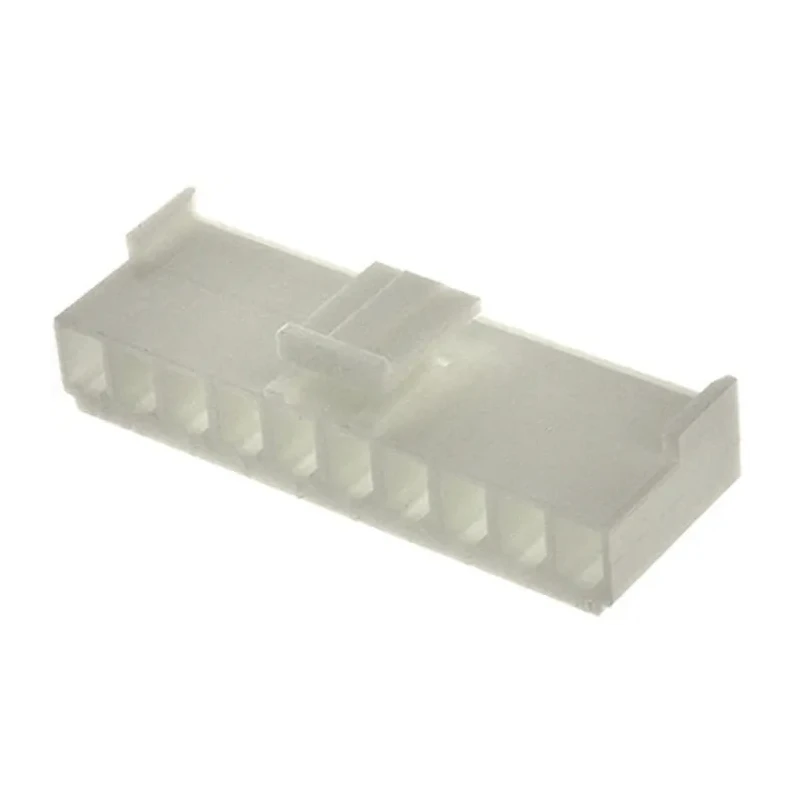

JST VH Female Connector Housing 3.96 mm Pitch 10 Way 1 Row Side Entry VHR-10N
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Orientation | Side Entry |
| Temperature range | -25 → 85 °C |
| Length | 39.54mm |
| Model | VHR-10N |
| Width | 10.5mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | VH |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | Compact Power Connector |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- Constructed with durable polyamide material for reliable performance.
- Features side entry orientation for compact wire to board connections.
- Compatible with compact power connectors, ideal for varied electronic applications.
- Operating temperature range from -25 to 85 °C supports diverse environmental conditions.
- Provides secure friction-lock contacts and mounting for stable electrical connections.
- Compact size with 10 contacts and 1 row layout optimizes space on printed circuit boards.
- Used widely in industrial, household appliance, and networking applications.
- Natural white color housing conforms to UL94V-0 flammability rating.
Product Description
JST VHR-10N VH Female Connector Housing is a precision-manufactured PCB connector housing supporting 10 contacts in a single row with a 3.96 mm pitch. It features a side entry design enabling efficient wire-to-board connections within compact spaces. The housing is fabricated from robust polyamide material, engineered to meet UL94V-0 flame retardant standards, ensuring safety and durability in various electrical assemblies.
Operating reliably within a temperature range of -25 to 85 °C, this connector housing is suited for demanding industrial, household appliance, networking, and storage system environments. Its secure friction-lock mounting mechanism provides stable engagement, minimizing disconnections in vibration-prone applications.
The compact dimensions of 39.54 mm length and 10.5 mm width enable precise integration onto printed circuit boards, saving valuable PCB real estate. The VH series’ high current carrying capability broadens its applicability across signal, power supply, and output circuits.
Applications include use in electronics manufacturing for PCB assembly, industrial control systems, white goods appliances, and networking equipment where reliable power and signal interfacing are vital. The natural white color housing facilitates easy visual inspection and identification during assembly.
Durable polyamide housing complies with UL94V-0 flame retardant standard. 3.96 mm wire-to-board pitch with friction-lock contact mounting. Side entry orientation optimizes wiring and PCB layout. Operating temperature from -25 °C to 85 °C ensures versatility.
Designed for compact power connectors with 10 way single row configuration. Length 39.54 mm and width 10.5 mm for accurate PCB fit. Widely used in industrial, household appliance, and networked electronic systems. Natural white color for assembly ease and inspection.
VH series connectors provide high current capacity and secure locking.
This JST connector housing exemplifies reliable connectivity solutions in demanding industrial and commercial electronic assemblies. Browse other Connector Housings and electronic components at EnvMart for complete system design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JST VHR-10N connector housing has a pitch of 3.96 mm.
This connector housing operates within a temperature range of -25 to 85 °C.
It supports 10 contacts in a single row configuration.
The housing is constructed from polyamide material.
The dimensions are 39.54 mm in length and 10.5 mm in width.
It uses PCB mounting for installation.
This model features a side entry orientation for efficient wiring.
It belongs to the VH series of connectors.
It is widely used in industrial, household appliance, and networking applications.
Yes, it conforms to the UL94V-0 flammability rating.
It is designed for use with compact power connectors.
The country of origin for this connector housing is India.
