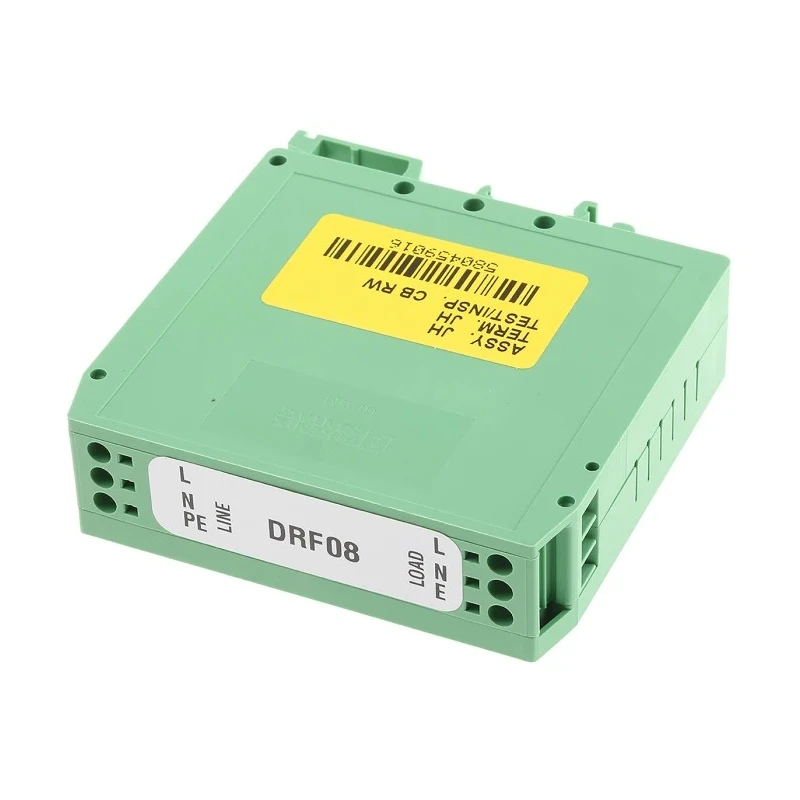

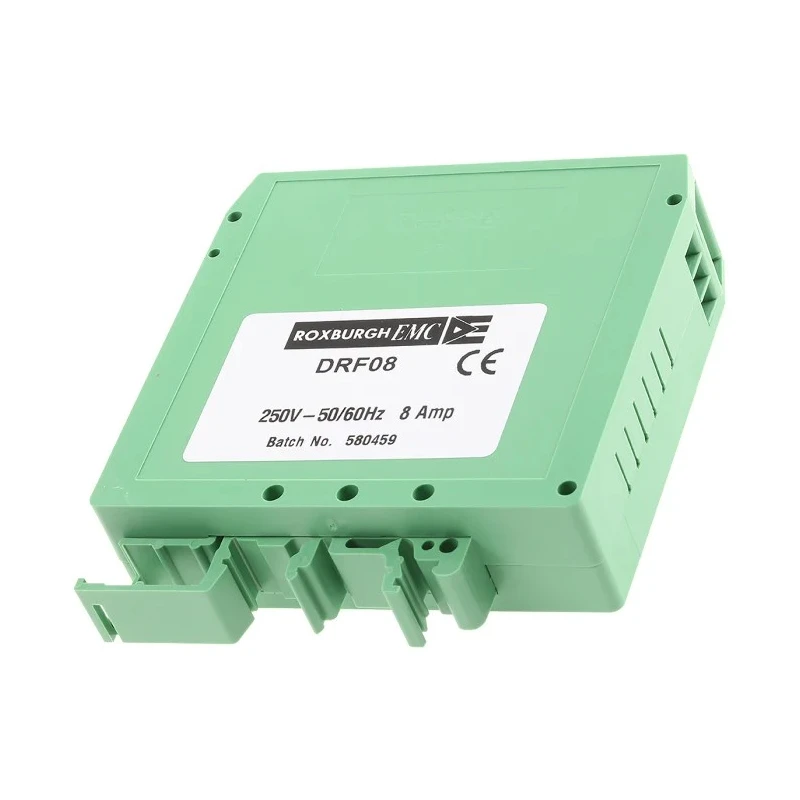

Deltron DIN Rail EMI Filter 1 Phase 8A 250V AC 440Hz Screw Termination DRF08

Free Delivery in India | Lowest Global Shipping Charges

Deltron DIN Rail EMI Filter 1 Phase 8A 250V AC 440Hz Screw Termination DRF08

Name: Deltron DIN Rail EMI Filter 1 Phase 8A 250V AC 440Hz Screw Termination DRF08
Brand: Deltron
SKU: 365165
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Deltron Condition New

Specifications

Country of Origin	United Kingdom
Brand	Deltron
Height	93mm
Length	80mm
Model	DRF08
Depth	22.5mm
Mount Type	DIN Rail
Operating Frequency	440Hz
Series	DRF
Maximum Operating Temperature	85°C
Resistance	15mΩ
Capacitance	1μF
Minimum Operating Temperature	-25°C
Maximum Current	8A
Number of Phases	1
Leakage Current	750μA
Maximum Voltage	250V ac
Inductance	1.5mH
Standards/Approvals	EN 60939
Termination Style	Screw
Power Loss	0.96W

Key Features

Designed for both AC and DC applications up to 250V and 440Hz frequency.
Makes use of DIN Rail mount facilitating universal fitting on 'Top Hat' and 'G-Type' rails.
Capacitance of 1μF and inductance of 1.5mH for effective noise suppression.
Leakage current limited to 750μA ensuring safety and minimal interference.
Wide operating temperature range from -25°C to 85°C with power loss of 0.96W.
Compact dimensions measuring 80mm length, 93mm height, and 22.5mm depth.
Resistant to electrical resistance of 15mΩ with spike and surge protection features.
Standard compliant to EN 60939 guaranteeing industrial reliability and quality.

Product Description

Deltron DRF08 is a robust DIN Rail mounted EMI filter designed to provide effective electromagnetic interference suppression in both AC and DC applications up to 250V and 440Hz frequency. This 1 phase filter operates with a maximum current rating of 8A and features a screw termination style ensuring secure and reliable electrical connections.

The filter fits universally on DIN Rails, compatible with both 'Top Hat' and 'G-Type' rail standards, simplifying installation in industrial and electrical enclosures. Equipped with a capacitance of 1μF and an inductance value of 1.5mH, it effectively filters noise in the range of 150 kHz to 30 MHz, providing stable performance in various electrical environments.

Designed to operate efficiently in temperature ranges from -25°C to 85°C, the filter maintains a low power loss of 0.96W and a leakage current of only 750μA. Its compact dimensions (80mm length, 93mm height, 22.5mm depth) and low resistance of 15mΩ contribute to its suitability for space-constrained installations while ensuring minimal impact on circuit performance.

With compliance to EN 60939 standards, this EMI filter ensures high industrial quality and durability, making it ideal for use in industrial, laboratory, construction, HVAC systems, manufacturing units, and power line protection applications. Manufactured in the United Kingdom, the DRF08 filter offers spike and surge protection enhancing equipment longevity and reliability.

Designed for both AC and DC applications up to 250V and 440Hz frequency. Fits universally on DIN Rails, compatible with 'Top Hat' and 'G-Type' rails. Capacitance of 1μF and inductance of 1.5mH provide effective EMI suppression.

Leakage current limited to 750μA for improved safety. Operates effectively in temperature ranges from -25°C to 85°C. Compact size with dimensions 80mm x 93mm x 22.5mm. Low resistance of 15mΩ and power loss of 0.96W ensure efficient performance.

Compliant with EN 60939 industrial standards. Offers spike and surge protection to safeguard connected equipment. Explore a wide range of EMI filters at EnvMart for industrial and commercial applications to secure your electrical installations.
