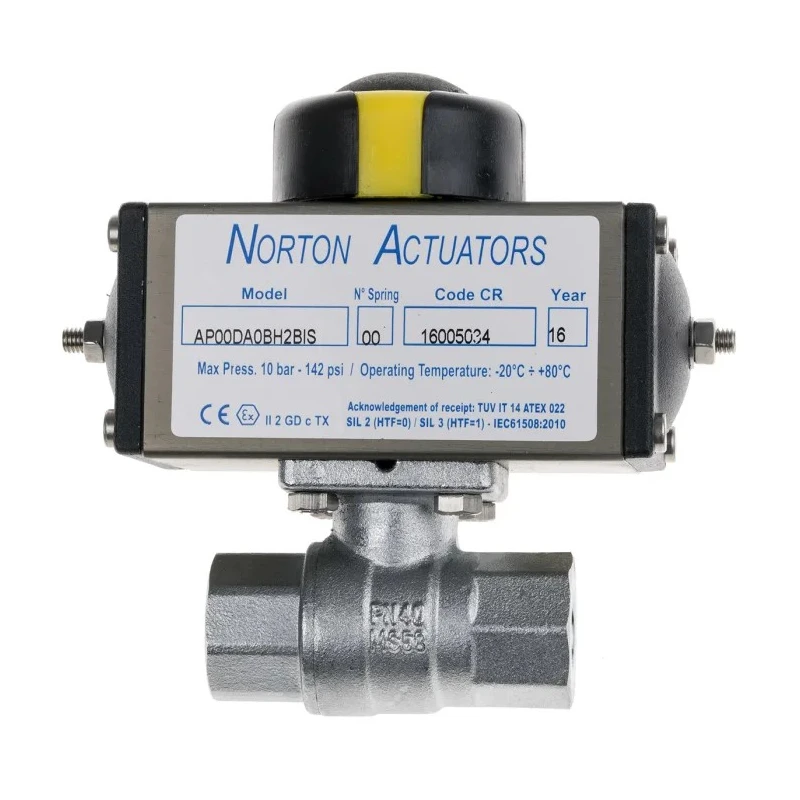

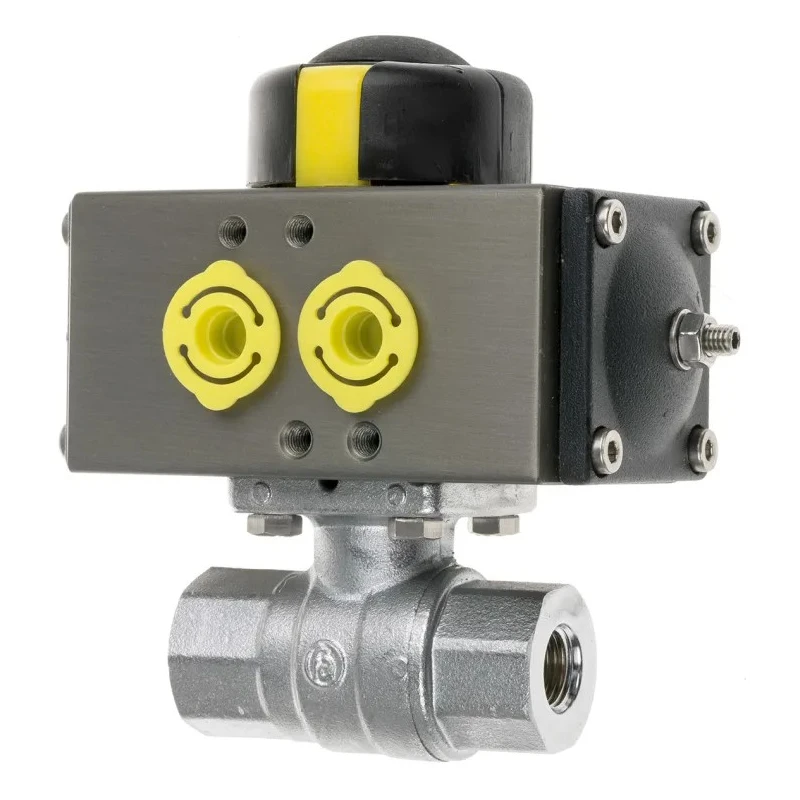

RS PRO Ball type Pneumatic Actuated Valve, 40 bar, BSP, Female Threaded 1/4 in, Hot Pressed Brass, UK Origin 760-5564

RS PRO 760-5564 Pneumatic Actuated Valve is a robust ball type valve designed to operate at a maximum pressure of 40 bar. It features BSP standard threaded female inlet and outlet ports sized at 1/4 inch, constructed from hot pressed brass materials for excellent durability and corrosion resistance. Manufactured in the United Kingdom, this valve is suitable for demanding industrial pneumatic applications.

The valve body and end caps are made of hot pressed brass, providing structural strength and longevity. The internal ball is chromed brass, enhancing durability against wear and chemical exposure. The sealing system uses P.T.F.E seat rings and body seals to ensure leak-proof operation.

Equipped with a normally closed (NC) valve position, the valve employs a direct action return mechanism for quick and reliable response. The stem assembly includes brass components, Viton stem rings, and NBR 70 O-rings, which offer excellent chemical resistance and mechanical sealing properties.

This Pneumatic Actuated Valve is designed for integration in fluid power systems, automation equipment, and industrial manufacturing processes that require precise control of fluid flow under high pressure conditions up to 40 bar. Its compact 1/4 inch BSP threaded female connections simplify installation into existing pipeline systems.

This valve features a brass ball with chrome plating for durability. The body and end caps are made from hot pressed brass ensuring high strength and corrosion resistance. P.T.F.E seat ring and body seal provide reliable sealing performance.

It uses a direct-action return type with a normally closed (NC) valve position. The stem is crafted from brass with Viton stem rings and NBR 70 O-rings for enhanced sealing and chemical resistance. Designed for industrial pneumatic applications requiring controlled fluid flow under high pressure.

Ideal for use in manufacturing, fluid power systems, automation, and pneumatic control environments.

This RS PRO pneumatic actuated ball valve is a reliable component for pneumatic control in industrial and fluid power sectors. Explore more pneumatic valve solutions and RS PRO products on EnvMart.
