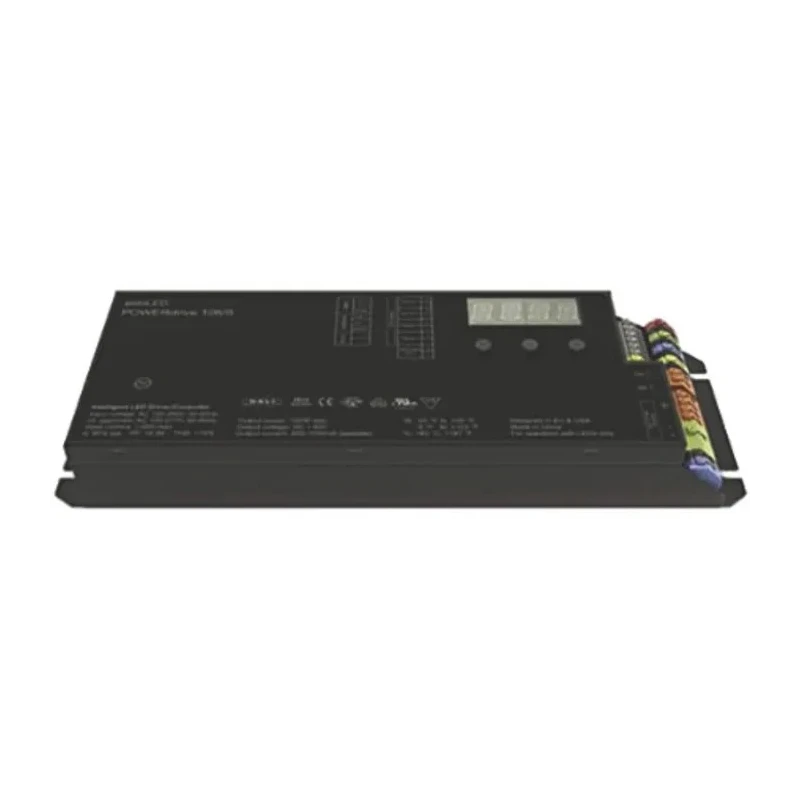

eldoLED Powerdrive AC Series 4-Channel Dimmable LED Driver 120 V ac to 277 V ac PWR106S1

eldoLED PWR106S1 LED Driver is part of the Powerdrive AC series, designed for high-performance and flexible LED lighting control in industrial, commercial, and entertainment settings. This device supports four LED output channels that can be independently dimmed and controlled via DALI, DMX, RDM, and LedSync protocols, providing precise dynamic lighting effects for architectural facades, stage productions, retail displays, and signage.

The driver operates with a universal input voltage range from 120 V ac up to 277 V ac, making it suitable for global installations and robust power environments. Its output current is configurable between 200 mA and 1050 mA in 50 mA steps, allowing tailored current delivery for different LED load requirements.

Hybrid HydraDrive technology ensures smooth, efficient, and flicker-free dimming performance, ideal for applications requiring high visual quality with no perceptible flicker. The device provides a high power factor exceeding 0.9, enhancing electrical efficiency and reducing energy losses in lighting systems.

Programming and configuration can be performed via the TOOLbox pro programming interface with the FluxTool software or directly through an intuitive three-button user interface on selected 100W models, facilitating easy on-site customization.

The built-in LEDcode/NTC interface supports advanced thermal management to protect LEDs and ensure longevity by monitoring LED temperature conditions.

Common applications include entertainment lighting, architectural and facade illumination, retail display lighting, signage, and decorative lighting environments that demand a high degree of user-controllable light modulation and colour effects.

This robust LED driver meets the needs of complex lighting networks requiring smooth dimming, flexible control, and reliable power delivery. Supports four independently controllable LED output channels for dynamic lighting.

Compatible with DALI, DMX, RDM, and LedSync control protocols. Configurable output current from 200 mA to 1050 mA in 50 mA steps. Hybrid HydraDrive technology delivers flicker-free dimming. High power factor greater than 0.9 for efficient operation.

Programming via TOOLbox pro and user interface on 100W models. LEDcode/NTC interface for thermal management. Ideal for entertainment, architectural, façade, retail display lighting. Choice of linear or logarithmic dimming curves from 100% to 0% brightness.

Universal input voltage from 120 V ac to 277 V ac. Explore a wide selection of professional LED drivers and related components at EnvMart for advanced lighting control and installation needs.
