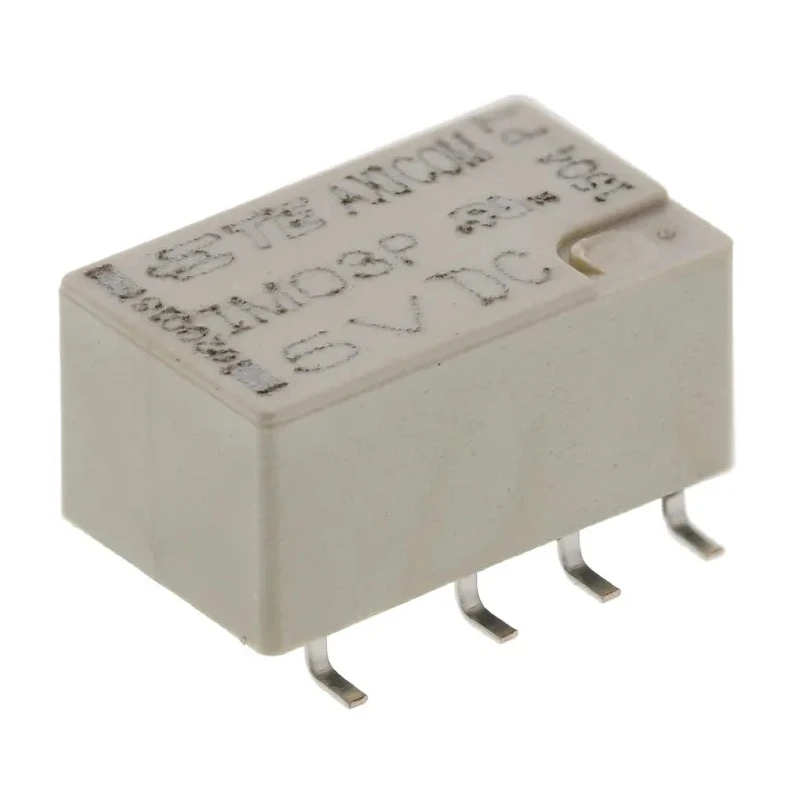

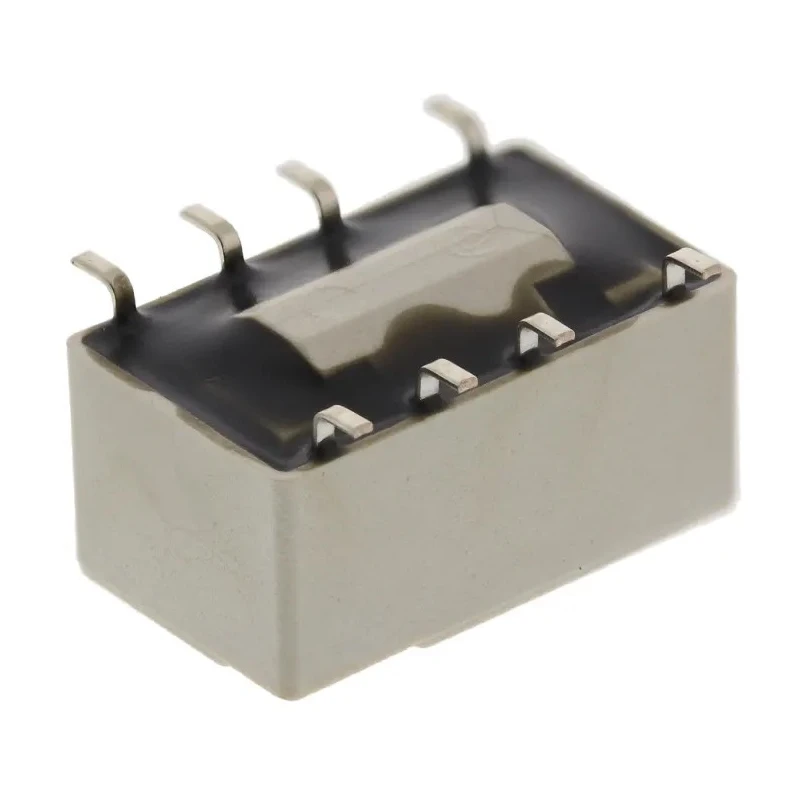

TE Connectivity Surface Signal Relay DPDT, 5V DC Coil, 2A Switching Current IM03PGR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM03PGR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, REACH |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| TE Connectivity Surface Signal Relay, 5V dc Coil, 2A, DPDTBrand | TE Connectivity |
Key Features
- Slimline profile of 10 x 6 x 5.65 mm for minimal PCB space usage.
- Gold-plated bifurcated contacts ensure reliable signal integrity.
- Hermetically sealed design providing IP67 protection and long operational life.
- High mechanical shock resistance up to 300G functional and 500G survival.
- Coil power consumption of 140mW, suitable for low power applications.
- Wide operating temperature range from -40°C to 85°C for harsh environments.
- Switching capabilities of up to 250V AC and 220V DC operation.
- Compliant with RoHS and REACH environmental standards.
Product Description
TE Connectivity IM03PGR is a surface mount signal relay featuring a double-pole double-throw (DPDT) contact configuration designed for precision switching applications. It operates on a 5V DC coil with an energizing coil power of 140mW, providing efficient low power consumption suitable for various industrial and commercial devices.
This relay offers a slimline and compact footprint of 10 mm length, 6 mm width, and 5.65 mm height, optimizing PCB space while maintaining high reliability. The relay’s gold-plated bifurcated contacts ensure excellent signal conduction and longevity. It is hermetically sealed to provide IP67-level protection against environmental contaminants and corrosion, suitable for harsh operating conditions.
Robust mechanical design ensures resistance to shock up to 300G during functional operation and 500G survival, enhancing durability in demanding industrial environments. It operates reliably within an ambient temperature range between -40°C and 85°C. Switching voltage ratings reach up to 250V AC and 220V DC, handling switching currents up to 2A effectively.
The relay complies with RoHS and REACH standards, ensuring environmentally safe manufacturing and use. Its applications span telecommunications equipment, optical network terminals, office machines, test and measurement apparatus, medical devices, and automotive systems.
Slim 10x6x5.65 mm surface mount design for space-saving assembly. Gold-plated bifurcated contacts for enhanced conductivity and reduced wear. Hermetically sealed IP67 housing for robust environmental protection. High resistance to mechanical shocks for reliable performance.
Low coil power consumption of 140mW ensures efficiency. Wide operating temperature range from -40°C to +85°C. Switching current capacity of 2A at 250V AC or 220V DC. Meets relevant RoHS and REACH environmental compliance standards.
Designed for use in telecommunications, office, medical, automotive, and testing equipment. Explore high-quality Signal Relays like the TE Connectivity IM03PGR within our Electronics & Electricals categories for reliable and precise switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of up to 2A.
This model has a length of 10 mm, a width of 6 mm, and a height of 5.65 mm.
The relay operates on a 5V DC coil voltage.
It can switch voltages up to 250V AC and 220V DC.
The coil power consumption is 140mW, making it suitable for low power applications.
The relay features a double-pole double-throw (DPDT) contact configuration.
It operates reliably within a temperature range of -40°C to 85°C.
This model is designed for surface mounting.
The contacts are made of gold-plated material, ensuring reliable signal integrity.
The relay is hermetically sealed and has an IP67 protection rating, making it suitable for harsh environments.
It complies with RoHS and REACH environmental standards.
This relay is suitable for telecommunications equipment, optical network terminals, office machines, test and measurement apparatus, medical devices, and automotive systems.
