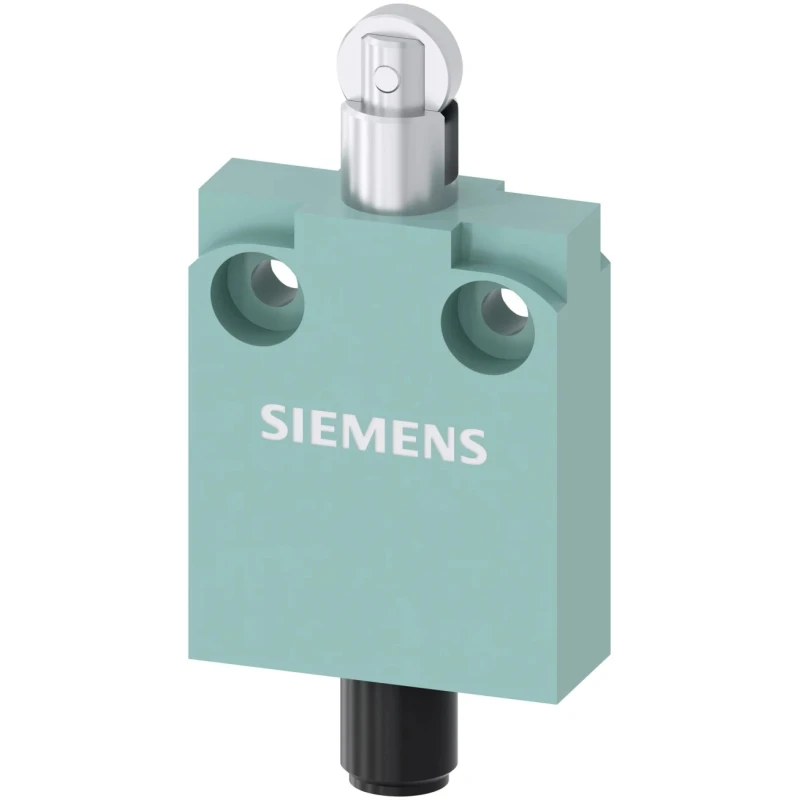

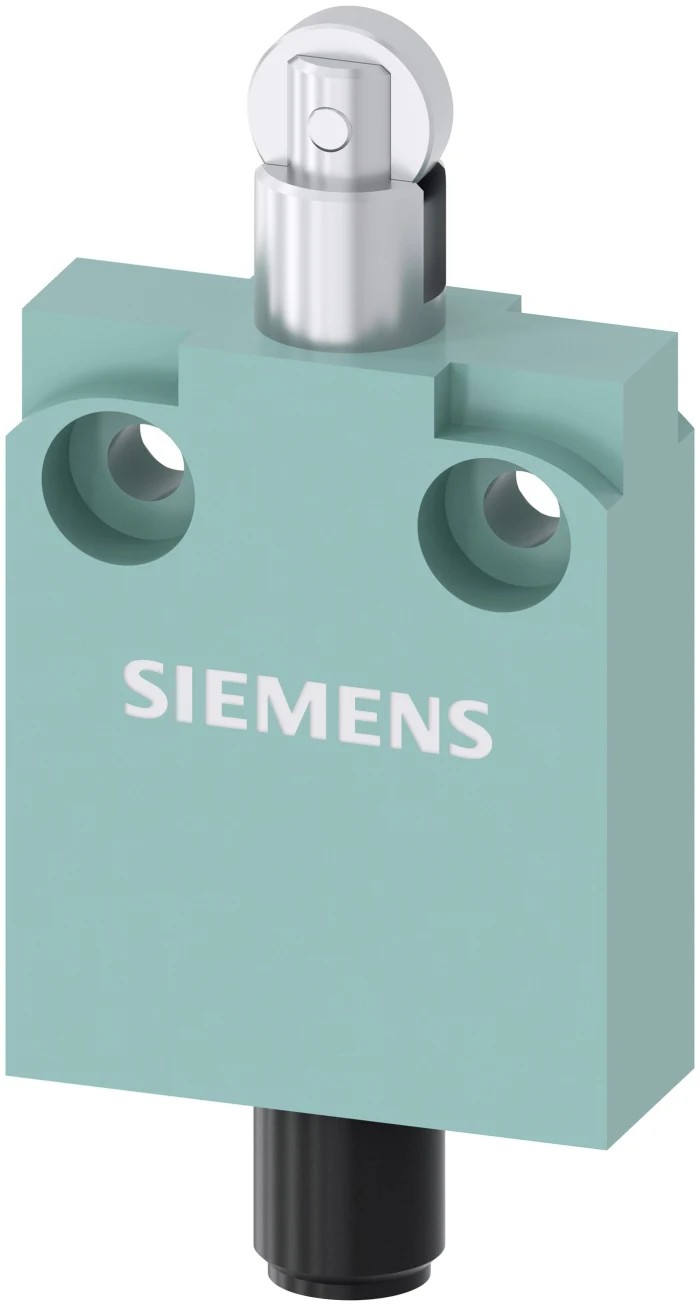

Siemens 3SE5 Series Roller Plunger Limit Switch, 1 NO/1 NC Contact, IP66 IP67 Metal Housing 3SE5423-0CD20-1EB1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Siemens |
| Length | 50mm |
| Model | 3SE5423-0CD20-1EB1 |
| Depth | 16mm |
| IP Rating | IP66, IP67 |
| Width | 40mm |
| Housing Material | Metal |
| Series | 3SE5 |
| Maximum Operating Temperature | 85°C |
| Mounting Orientation | Universal |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Terminal type | M12 |
| Standards/Approvals | CCC, CE, CSA, EAC, EN, IEC, RoHS, UL |
| Mechanical Life | 30000000Cycles |
| Conduit Entry | M20 x 1.5 |
| 924CE Safety Switch With Roller Plunger Actuator, Die Cast Zinc, NO/NCBrand | Honeywell |
Key Features
- The actuator type is a roller plunger suited for various industrial applications.
- Rated for harsh environments with IP66 and IP67 ingress protection.
- Durable metal enclosure ensures protection and long service life.
- Snap action contact type with 1 normally open and 1 normally closed contact configuration.
- Features an M12 terminal type for easy connection.
- Compact dimensions with 50mm length, 40mm width, and 16mm depth for space-constrained installations.
- Wide operating temperature range from -25°C to 85°C.
- Mechanical life expectancy of 30,000,000 cycles ensures longevity.
Product Description
Siemens 3SE5423-0CD20-1EB1 roller plunger limit switch is part of the 3SE5 Series designed for industrial automation and control systems requiring precise position detection. It features a durable metal enclosure providing IP66 and IP67 ingress protection, suitable for harsh and challenging environments. The compact body measures 50mm in length, 40mm in width, and only 16mm in depth, allowing installation in tight spaces without sacrificing performance.
This limit switch incorporates a roller plunger actuator that offers reliable and repeatable switching with a snap action contact mechanism. The contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact, the NC contact providing positive opening compliant with IEC 60947-5-1 standards. The device is suitable for safety-related circuits up to category 4 according to EN ISO 13849-1, ensuring high operational safety.
Connections are made via an M12 terminal type, and the actuator can be rotated in 90-degree increments to customize actuation direction. It is designed to withstand an operating temperature range from -25°C to 85°C and offers a mechanical life of up to 30 million cycles, guaranteeing long-term reliability and reduced maintenance downtime.
The metal housing and high ingress protection ratings make it immune to dust and water ingress, ideal for manufacturing, industrial automation, HVAC systems, packaging machinery, and other demanding applications.
This Limit Switch meets worldwide standards and approvals including CCC, CE, CSA, EAC, EN, IEC, RoHS, and UL, reflecting its compliance with rigorous quality and safety requirements.
The device's compact metal enclosure and robust actuator design enhance durability in heavy-duty industrial settings. Its versatile mounting orientation and actuator rotation features allow adaptability to diverse equipment layouts.
Use in safety circuits up to Category 4 offers reliable protection in critical control functions.
For engineers and maintenance professionals, the Siemens 3SE5423-0CD20-1EB1 provides a dependable solution for position detection, safety switching, and automation tasks in a broad range of industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
The dimensions are 50mm in length, 40mm in width, and 16mm in depth.
It operates within a temperature range of -25°C to 85°C.
This model uses a roller plunger actuator for switching.
It has an IP66 and IP67 ingress protection rating, making it suitable for harsh environments.
It has a mechanical life expectancy of up to 30 million cycles.
Connections are made via an M12 terminal type.
The housing is made of metal, ensuring durability and protection.
It meets several standards including CCC, CE, CSA, EAC, EN, IEC, RoHS, and UL.
Yes, the actuator can be rotated in 90-degree increments to customize the actuation direction.
It has a universal mounting orientation, allowing for flexible installation options.
It is suitable for manufacturing, industrial automation, HVAC systems, and packaging machinery.
