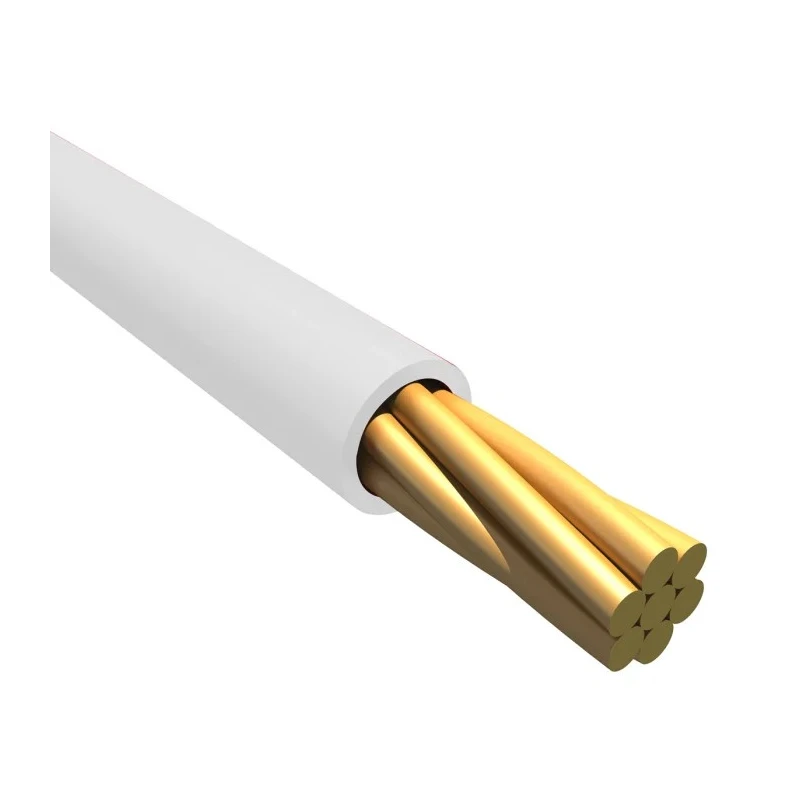

Alpha Wire Ecogen Ecowire Plus Series White 1.1 mm² Hook Up Wire, 17 AWG, 19 x 0.25 mm Strands, 30 m Length, MPPE 6826 WH005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Plus Series White 1.1 mm² Hook Up Wire, 17 AWG, 19 x 0.25 mm Strands, 30 m Length, MPPE 6826 WH005

Name: Alpha Wire Ecogen Ecowire Plus Series White 1.1 mm² Hook Up Wire, 17 AWG, 19 x 0.25 mm Strands, 30 m Length, MPPE 6826 WH005
Brand: ALPHA WIRE
SKU: 363317
Price: 134.59 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
Temperature range	- 40°C to +110°C
CROSS SECTIONAL AREA	1.1mm²
Model	6826 WH005
Cable Length	30m
Series	Ecogen Ecowire Plus
Outside diameter	1.68mm
Maximum Operating Temperature	110°C
Conductor Material	Copper
Insulation Thickness	0.008 Inch (0.20 mm)
Cable Type	Hookup
Wire Diameter	0.066 Inch (1.68 mm)
Minimum Operating Temperature	-40°C
Conductor Size	17 AWG (0.96 mm²)
Jacket Material	MPPE
Standards/Approvals	CE, ISO 6722, Reach compliant, RoHS compliant
Jacket Colour	White
Fire Behaviour	Flame Retardant, Low Smoke Halogen Free
American Wire Gauge	17AWG
Number of Strands	19
Core Strands	19 x 0.25mm
Size of Strands	0.25mm
Stranding	19/30 (19 x 0.25)

Key Features

Features flame retardant and low smoke halogen free MPPE insulation.
Offers excellent resistance to hazardous fluids including oils, solvents, and fuels.
Stranded bare copper conductors composed of 19 strands of 0.25 mm diameter each.
Operating temperature range from -40°C up to 110°C.
Complies with CE, ISO 6722, RoHS, and REACH standards for safety and environmental compliance.
Lightweight modified polyphenylene ether insulation enables thinner walls and superior dielectric strength.
Contains no halogens or heavy metals, supporting easy recycling and WEEE compliance.
Ideal for solar, transportation, wind power, industrial, and medical applications.

Product Description

Alpha Wire 6826 WH005 Ecogen Ecowire Plus Series White Hook Up Wire features a 1.1 mm² cross sectional copper conductor made up of 19 strands of 0.25 mm each, with a total cable length of 30 meters. The wire uses modified polyphenylene ether (MPPE) insulation which is flame retardant and has low smoke halogen free properties, enhancing its safety profile in complex industrial environments. Rated for voltage up to 300 V and operational temperatures from -40°C to +110°C, this wire is suited for high-demand applications requiring reliability and durability.

EcoWire Plus represents an evolution over standard EcoWire by offering improved fluid resistance and a wider temperature range, making it highly suitable for use in harsh factory and industrial conditions. The insulation material is recyclable and free of halogens and heavy metals, meeting all RoHS and WEEE requirements for environmental responsibility.

The stranded copper conductor (19 strands of 0.25 mm) ensures flexibility and mechanical strength, while the slim insulation thickness of 0.008 inches (0.20 mm) contributes to reduced overall cable diameter of 1.68 mm, making the wire easier to handle and route.

This wire is ideal for industrial sectors such as solar power installations, transportation, wind energy, medical equipment, and other industrial manufacturing applications where wire must withstand exposure to oils, solvents, fuels, and other hazardous liquids.

Flame retardant and low smoke halogen free MPPE insulation. High resistance to hazardous fluids and environmental stress. Stranded copper conductor for flexibility and durability. Wide operating temperature range from -40°C to 110°C.

Voltage rating of 300 V for safe electrical performance. Compliance with CE, ISO 6722, RoHS, and REACH standards. Eco-friendly and fully recyclable insulation material. Suitable for demanding industrial, solar, transportation, and medical uses.

Set contains 1 reel of 30 meters of Alpha Wire Ecogen Ecowire Plus Series White 1.1 mm² Hook Up Wire. Explore our wide range of industrial wires and cables on EnvMart for all your electrical and automation needs.
