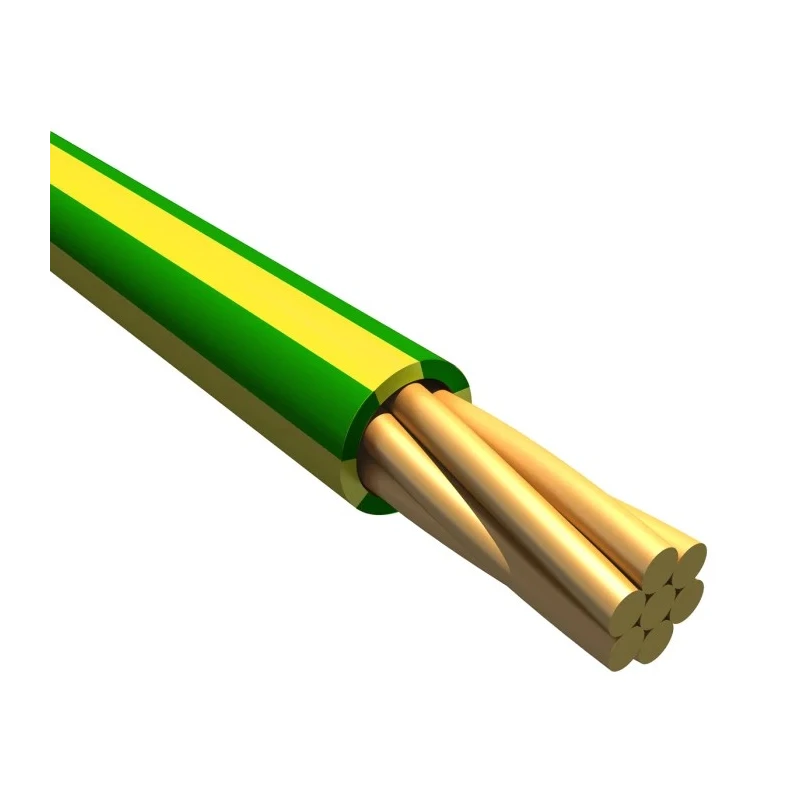

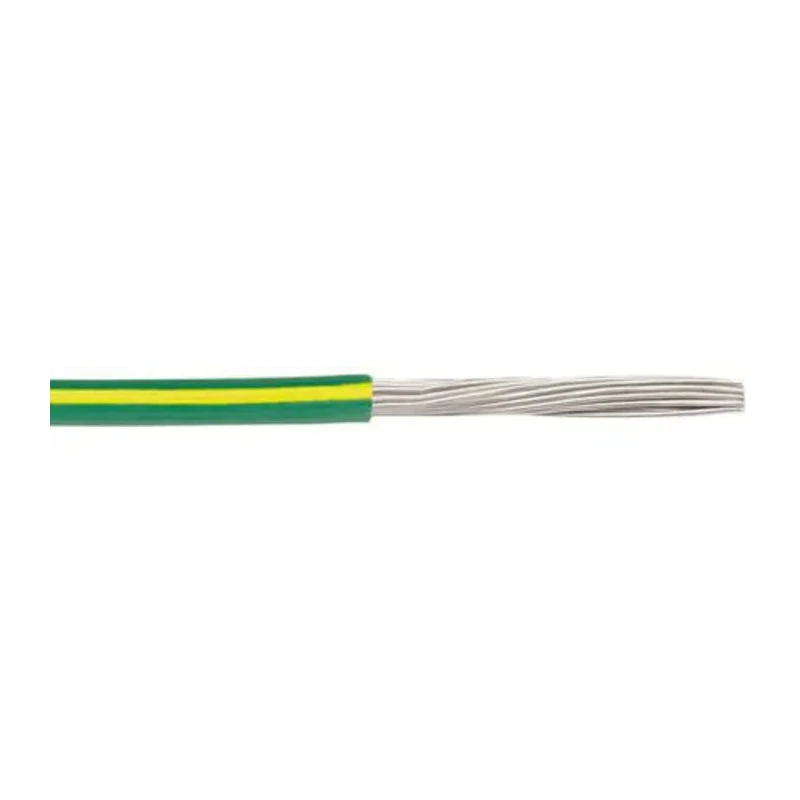

Alpha Wire Ecogen Ecowire Plus Series Green Yellow 2.1 mm² 14 AWG Hook Up Wire 19x0.36 mm Strands 30m 6829 GY005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Colour | Green/Yellow |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 2.1mm² |
| Model | 6829 GY005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 2.41mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.012 Inch (0.30 mm) |
| Wire Diameter | 0.095 Inch (2.41 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 14 AWG (1.94 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Green, Yellow |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 14AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.36mm |
| Size of Strands | 0.36mm |
| Stranding | 19/27 (19 x 0.36) |
Key Features
- Constructed with copper conductors for excellent electrical conductivity.
- Jacket material is modified polyphenylene ether (mPPE) providing flame retardant and low smoke halogen-free properties.
- Rated for 300 V voltage and operating temperature range from -40°C to 110°C.
- Complies with CE, ISO 6722, Reach and RoHS standards.
- Specifically designed for demanding factory and industrial environments with enhanced fluid resistance.
- Wire diameter of 2.41 mm with insulation thickness of 0.3 mm ensures reliable insulation and durability.
- Eco-friendly and fully recyclable, meeting WEEE requirements.
- Ideal for solar, transportation, wind power, industrial, and medical applications.
Product Description
Alpha Wire 6829 GY005 Ecogen Ecowire Plus Series Green Yellow Hook Up Wire is designed for industrial and automation applications requiring robust performance and environmental compliance. This wire has a cross-sectional area of 2.1 mm² with a 14 AWG conductor size composed of 19 strands of 0.36 mm copper wires. The insulation is made of mPPE (modified polyphenylene ether), which offers superior dielectric strength, reduced wall thickness, and is lighter than traditional PVC insulation.
The wire operates at a maximum voltage of 300 V with an operating temperature range from -40°C to 110°C. Flame retardant and low smoke halogen-free characteristics ensure safety compliance for demanding environments. This product meets CE, ISO 6722, RoHS, and Reach standards, confirming its suitability for industrial, solar, transportation, wind power, and medical industry uses.
EcoWire Plus is exceptionally resistant to oils, solvents, fuels, and hazardous fluids, making it an excellent choice for factory automation wiring and other harsh environment installations. It contains no halogens or heavy metals allowing easy recycling and compliance with environmental directives such as WEEE and RoHS.
Constructed with stranded bare copper conductors for flexible electrical connectivity. Modified polyphenylene ether insulation provides excellent resistance to chemicals and high temperatures. Wire diameter 0.095 inch (2.41 mm) with insulation thickness of 0.012 inch (0.30 mm) ensures efficient packaging and performance.
Compliant with international standards including CE and ISO 6722 thin wall specifications. Designed for use in solar power, industrial automation, transportation, wind power, and medical equipment wiring. Flame retardant and low smoke halogen-free jacket ensures enhanced safety.

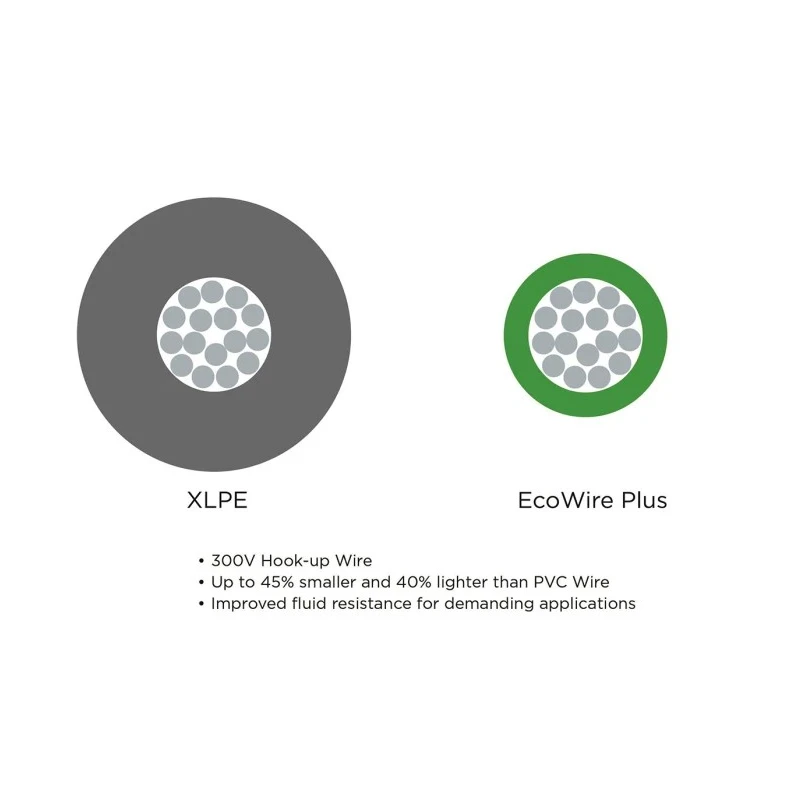

Length of 30 meters per reel makes it suitable for extended wiring runs. This environmentally conscious wire is a 100% recyclable alternative to traditional XLPE insulated wiring, making it a preferred choice in modern electrical installations.
Explore more wires and cables optimized for industrial and automation applications in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this wire is 110°C.
The wire diameter is 2.41 mm (0.095 inch).
It is rated for a maximum voltage of 300 V.
The conductors are made of copper, and the insulation is made of modified polyphenylene ether (mPPE).
This wire complies with CE, ISO 6722, Reach, and RoHS standards.
The wire is provided in a length of 30 meters per reel.
The insulation thickness is 0.3 mm (0.012 inch).
It is suitable for applications in solar power, industrial automation, transportation, wind power, and medical equipment wiring.
The minimum operating temperature is -40°C.
The conductor consists of 19 strands of 0.36 mm each.
The jacket material is flame retardant and low smoke halogen-free.
The cross-sectional area is 2.1 mm² with a conductor size of 14 AWG.
