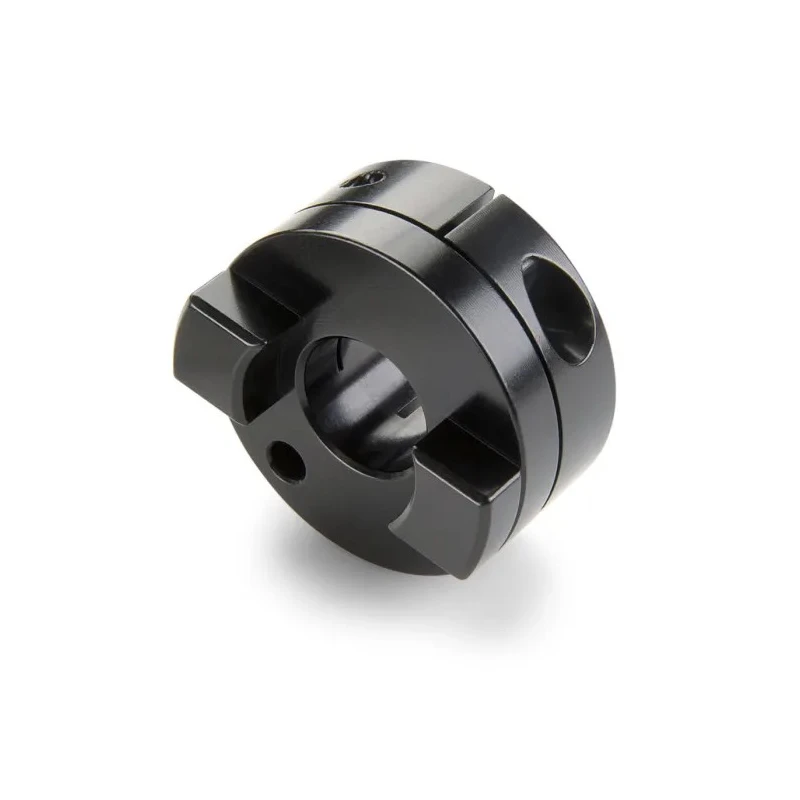

Ruland Aluminium Clamp Style Oldham Coupler 41.3 mm OD 12 mm Bore No Keyway 18 mm Length MOCT41-12-A
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Ruland |
| Material | Aluminium |
| Model | MOCT41-12-A |
| Maximum Speed | 4500rpm |
| Outside diameter | 41.3mm |
| Bore Diameter | 12mm |
| Bore Type | Finished with No Keyway |
| Standards/Approvals | RoHS, REACH |
| Misalignment - Angular | 0.5° |
| Misalignment - Parallel | 0.25mm |
| Misalignment - Axial | 0.15mm |
| Hub Length | 18mm |
| Securing | 13mm and 19mm anodised aluminium hubs are secured to the shafts with one set screw on each end. 33mm, 35mm and 41mm hubs have 2 set screws set 90° apart |
Key Features
- Constructed from black anodised aluminium for durability and corrosion resistance.
- Clamp style hubs secure the shafts firmly with set screws.
- Suitable for shafts with slight axial and angular misalignment tolerance.
- Maximum operating speed up to 4500 rpm for high-speed applications.
- Center torque disc made of acetal or nylon that breaks cleanly for torque overload protection.
- Allows angular misalignment up to 0.5 degrees and parallel misalignment up to 0.25 mm.
- Axial misalignment capability of up to 0.15 mm enhances coupling flexibility.
- Meets RoHS and REACH standards for environmental compliance.
Product Description
Ruland MOCT41-12-A Aluminium Clamp Style Oldham Coupler is engineered for flexible shaft coupling applications in light industrial and motion control systems. Featuring a 41.3 mm outside diameter, 12 mm bore finished with no keyway, and an 18 mm length hub, this coupling enables precise connection of shafts while accommodating small axial, angular, and parallel misalignments.
The three-piece clamp style design consists of two black anodised aluminium hubs and a replaceable centre torque disc manufactured from acetal or nylon. This unique assembly allows the torque disc to act as a clean-breaking torque limiter protecting machinery from overloads. The hubs secure shafts via set screws; smaller hubs use one set screw per end, while the 41 mm hubs have two set screws set 90 degrees apart for enhanced grip.
This coupling supports a maximum operating speed of 4500 rpm, making it suitable for high-speed servo and stepper motor drives. The angular misalignment tolerance of up to 0.5 degrees, parallel misalignment of 0.25 mm, and axial misalignment of 0.15 mm provide flexibility in shaft alignment.
Compliant with RoHS and REACH environmental standards, this coupling balances performance with regulatory requirements. Manufactured in the United States, it meets rigorous quality controls for reliable operation in industrial, laboratory, manufacturing, and motion control applications.
Constructed from black anodised aluminium for corrosion resistance. Clamp style hubs secured by set screws for firm shaft connection. Torque disc provides overload protection by breaking cleanly. Accommodates small shaft misalignments for flexible coupling.
High-speed capacity up to 4500 rpm. RoHS and REACH compliant for environmental safety. Requires two hubs and one torque disc for complete assembly.
This coupling is ideal for applications requiring precise motion control and protection against torque overloads, commonly found in industrial automation, manufacturing machinery, and laboratory equipment. Explore more mechanical power transmission solutions and Flexible Coupler variants on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating speed of this model is 4500 rpm, making it suitable for high-speed applications.
This coupling has an outside diameter of 41.3 mm, a bore diameter of 12 mm, and a hub length of 18 mm.
It can accommodate angular misalignment up to 0.5 degrees, parallel misalignment up to 0.25 mm, and axial misalignment up to 0.15 mm.
The coupler is constructed from black anodised aluminium for durability and corrosion resistance, with a center torque disc made of either acetal or nylon.
The clamp style hubs are secured to the shafts using set screws, with two set screws set 90 degrees apart for the 41 mm hubs to enhance grip.
It meets RoHS and REACH standards for environmental compliance.
The bore is finished with no keyway, allowing for a smooth connection to the shafts.
This coupling is ideal for applications requiring precise motion control and protection against torque overloads, commonly found in industrial automation and manufacturing machinery.
The torque disc acts as a clean-breaking torque limiter, providing protection against torque overloads by breaking cleanly when the limit is exceeded.
This model is manufactured in the United States, adhering to rigorous quality controls.
The model number of this coupler is MOCT41-12-A, which identifies its specific features and specifications.
It features a three-piece clamp style design consisting of two aluminium hubs and a replaceable center torque disc.
