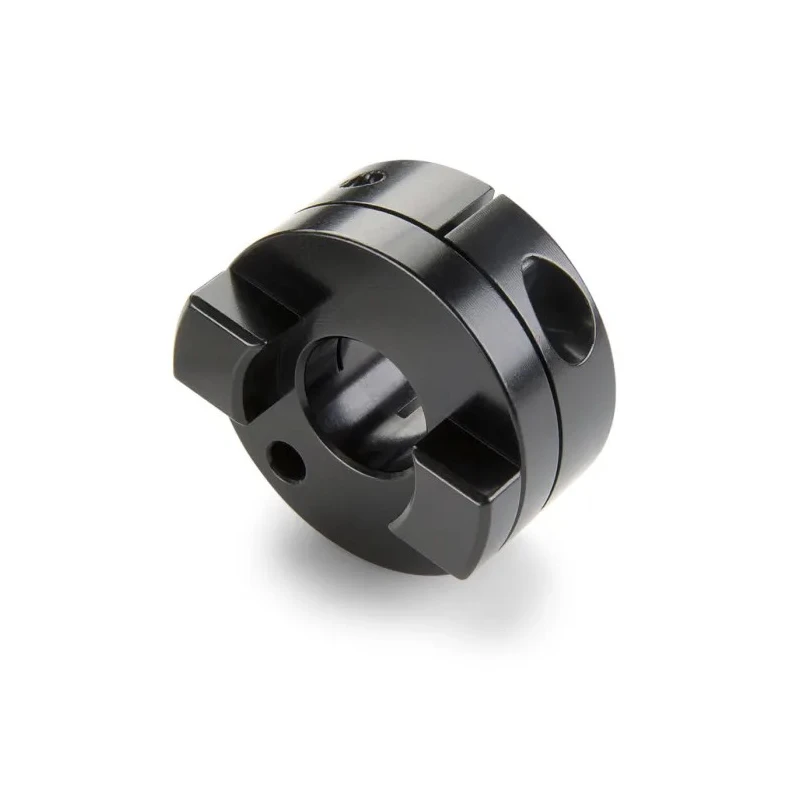

Ruland Clamp Style Oldham Coupler 25.4 mm OD, 6 mm Bore, 11.9 mm Hub Length MOCT25-6-A
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Ruland |
| Material | Aluminium |
| Model | MOCT25-6-A |
| Maximum Speed | 4500rpm |
| Outside diameter | 25.4mm |
| Bore Diameter | 6mm |
| Bore Type | Finished with No Keyway |
| Standards/Approvals | REACH, RoHS |
| Misalignment - Angular | 0.5° |
| Misalignment - Parallel | 0.2mm |
| Misalignment - Axial | 0.1mm |
| Hub Length | 11.9mm |
| Securing | 13mm and 19mm anodised aluminium hubs are secured to the shafts with one set screw on each end. 33mm, 35mm and 41mm hubs have 2 set screws set 90° apart |
Key Features
- Constructed from aluminium material offering lightweight and corrosion resistance.
- Clamp style coupling allows easy shaft connection with allowance for axial and angular misalignment.
- Finished bore with no keyway provides smooth coupling interface.
- Maximum speed rating of 4500 rpm suitable for light industrial applications.
- Misalignment tolerances include 0.5° angular, 0.2 mm parallel, and 0.1 mm axial.
- Secured with set screws ensuring reliable mechanical fastening.
- Composed of two hubs and one torque disc (not supplied as a complete assembly).
- Ideal for motion control, light industrial, and mechanical power transmission uses.
Product Description
Ruland MOCT25-6-A clamp style Oldham coupler is a precision mechanical power transmission component designed for coupling shafts with 25.4 mm outside diameter and 6 mm bore diameter, featuring an 11.9 mm hub length. Manufactured from high-quality aluminium, this coupling provides excellent lightweight strength and corrosion resistance.
The clamp style design enables secure attachment to shafts, allowing for ease of installation and removal without requiring a keyway, as the bore is finished without one. It accommodates slight misalignments including angular, parallel, and axial deviations, which helps protect connected equipment from damage due to shaft misalignment.
The coupling is rated for maximum operating speeds up to 4500 rpm, making it suitable for a variety of light industrial and motion control applications such as servo and stepper motor driven systems. The coupling's unique design includes a three-piece structure consisting of two hubs and a torque disc, which is replaceable and acts as a torque limiter to protect machinery from overload.
The hubs are secured to shafts using set screws (secured on anodized aluminium hubs at 13 mm and 19 mm sizes with one set screw each, larger hubs have two screws at 90° apart), ensuring locking reliability during operation. Note that the product is supplied as individual parts; assembly requires two hubs and one torque disc per complete coupling.
This coupling complies with REACH and RoHS standards and is manufactured in the United States, maintaining stringent quality and environmental guidelines. Constructed from aluminium for corrosion resistance and light weight.
Clamp style design for easy shaft coupling and removal. Accommodates angular, parallel, and axial misalignments. Three-piece design enables torque overload protection. Maximum operating speed of 4500 rpm. Suitable for mechanical power transmission and motion control applications.
Complies with REACH and RoHS standards. Manufactured in the United States. Explore comprehensive mechanical coupling solutions and Flexible Couplers with Ruland products available at EnvMart for industrial, manufacturing, and motion control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum speed rating for this model is 4500 rpm, making it suitable for light industrial applications.
This coupler has a bore diameter of 6 mm and an outside diameter of 25.4 mm.
It is constructed from aluminium, which offers lightweight strength and corrosion resistance.
The clamp style design allows for easy attachment and removal of the coupler without requiring a keyway, as the bore is finished without one.
It accommodates angular misalignment of 0.5°, parallel misalignment of 0.2 mm, and axial misalignment of 0.1 mm.
The hubs are secured to the shafts using set screws, with one set screw on each end for 13 mm and 19 mm hubs, and two set screws at 90° apart for larger hubs.
The hub length of this model is 11.9 mm.
It is suitable for mechanical power transmission and motion control applications, including servo and stepper motor driven systems.
Yes, it complies with REACH and RoHS standards, ensuring it meets stringent quality and environmental guidelines.
The product is supplied as individual parts, which require two hubs and one torque disc for complete assembly.
This model is manufactured in the United States, adhering to strict quality standards.
The bore is finished with no keyway, providing a smooth coupling interface.
