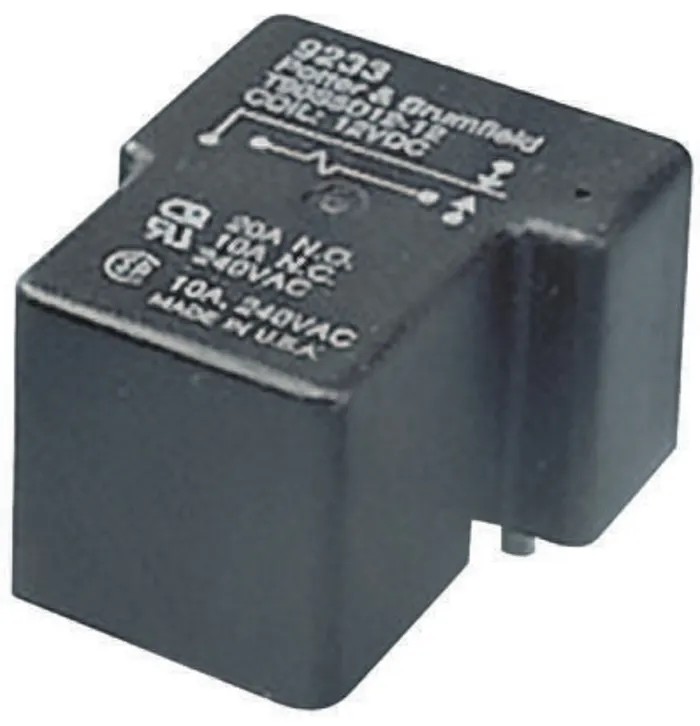

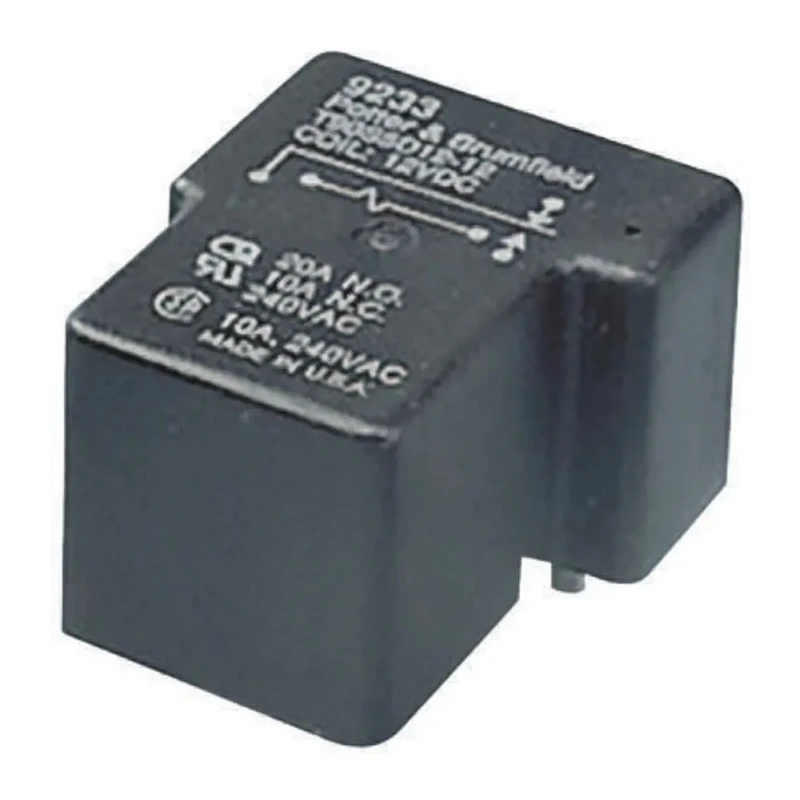

TE Connectivity PCB Non-Latching Power Relay 12V DC Coil 30A Switching Current SPST 1-1419104-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 32.5mm |
| Operating Temperature Range | -55 → +85°C |
| Length | 27.4mm |
| Width | 27.4mm |
| Mount Type | PCB |
| Series | T9A |
| Contact Configuration | SPST |
| Switching Current | 30A |
| Terminal type | Through Hole |
| Coil Voltage | 12V dc |
| Switching Voltage | 277V |
Key Features
- The relay is designed for PCB mounting with through-hole terminal type for durability.
- Switching voltage capability is up to 277V, making it suitable for a variety of electrical applications.
- The T9A series relay operates reliably in temperature ranges from -55 to +85°C.
- The compact relay measures 27.4mm length, 27.4mm width, and 32.5mm height for space-efficient installation.
- Ideal for power relay applications in electrical automation, signal conditioning, and PCB circuits.
- The wash-tight case construction ensures durability in demanding environments.
Product Description
TE Connectivity 1-1419104-7 PCB Non-Latching Power Relay is engineered for industrial and electrical applications where reliable switching of high currents is essential. Featuring a robust 12V DC coil, this SPST relay accommodates a maximum switching current of 30A, making it ideal for power relay use in automation and control circuits.
Its PCB mounting through-hole design ensures secure and easy integration onto printed circuit boards. The relay is part of the T9A series, known for high durability and consistent performance, supporting switching voltages up to 277V.
Measuring 27.4mm in length and width, and 32.5mm in height, this compact relay offers efficient space utilization. The wash-tight case protects against environmental contamination, making it suitable for harsh industrial environments.
Operating temperature range from -55°C to +85°C allows the relay to function in a variety of climatic conditions, from cold storage applications to high-heat industrial zones. The contact configuration is Single Pole Single Throw (SPST), providing reliable ON/OFF switching operation.
This relay is suitable for use in electrical automation, signal conditioning, manufacturing equipment, HVAC control systems, and other industrial settings requiring robust and accurate relay operation.
The relay supports a 12V DC coil voltage for standard control circuitry. It has a switching current rating of 30A, suitable for power switching applications. Through-hole terminal type provides solid PCB mounting and electrical connection.
The T9A series design ensures a wash-tight case and high reliability in demanding industrial environments. Its operating temperature range spans from -55 to +85°C, enabling use in versatile environmental conditions. The compact form factor with precise dimensions ensures easy installation in constrained PCB layouts.
Discover more high-quality Power Relays and related components at EnvMart to enhance your industrial and electronic projects with reliable switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 30A, making it suitable for power relay applications in various electrical systems.
This relay operates with a coil voltage of 12V DC, which is standard for many control circuits.
The relay can handle switching voltages up to 277V, allowing it to be used in a wide range of electrical applications.
The relay measures 27.4mm in length and width, and 32.5mm in height, providing a compact design for space-efficient installation.
It operates reliably within a temperature range of -55°C to +85°C, making it suitable for various environmental conditions.
This model is designed for PCB mounting with a through-hole terminal type, ensuring secure integration onto printed circuit boards.
The relay features a Single Pole Single Throw (SPST) contact configuration, providing reliable ON/OFF switching operation.
Yes, the relay has a wash-tight case construction that protects it against environmental contamination, making it suitable for demanding industrial settings.
This relay is part of the T9A series, known for its high durability and consistent performance in various applications.
This relay is suitable for applications in electrical automation, signal conditioning, manufacturing equipment, and HVAC control systems.
The relay utilizes a through-hole terminal type, which provides solid PCB mounting and electrical connection.
The relay is manufactured in India, ensuring compliance with local manufacturing standards.
