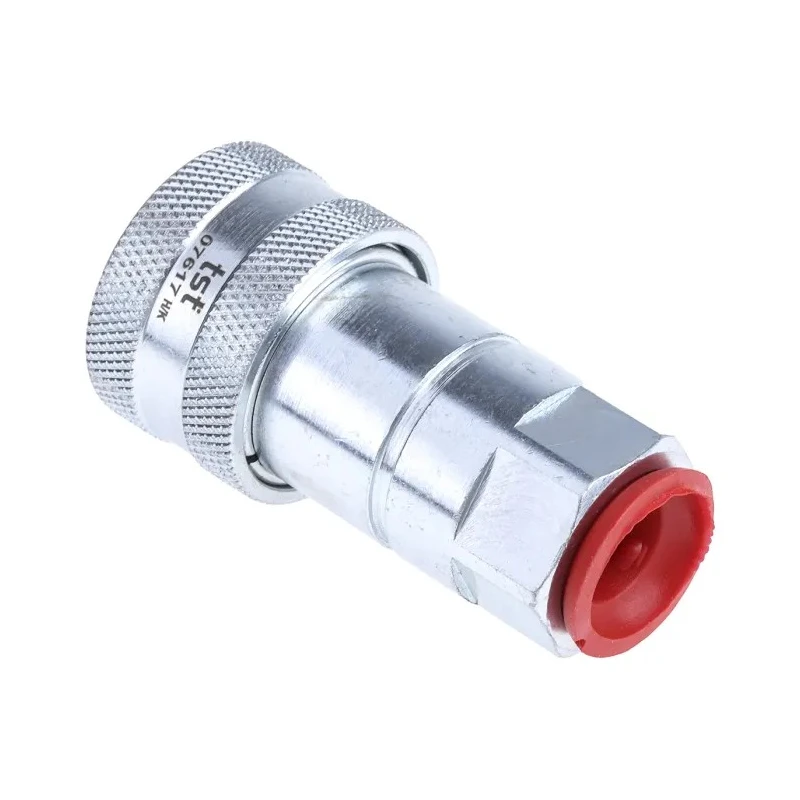

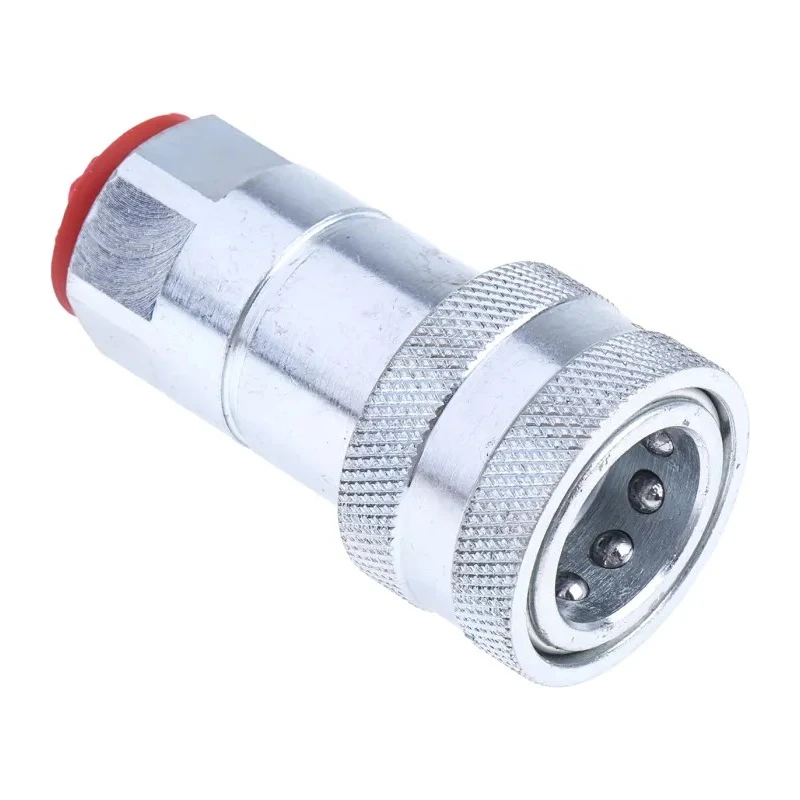

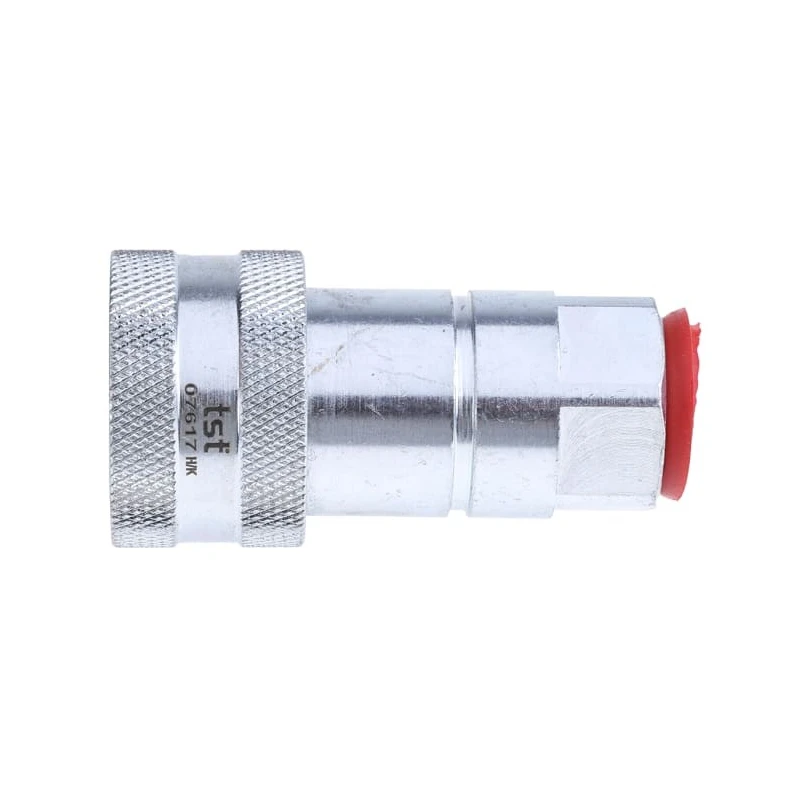

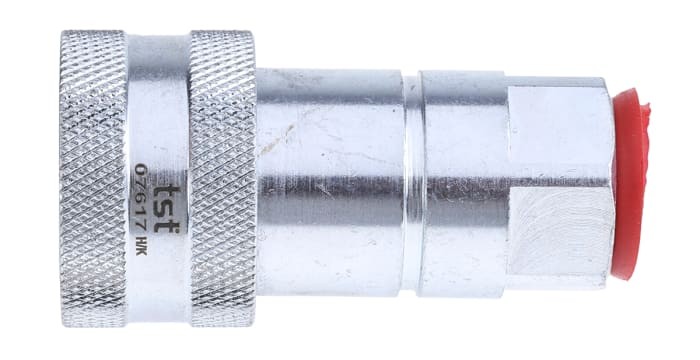

RS PRO Steel Hydraulic Quick Connect Coupling Female BSP 3/8 in 300 bar Ball Lock Passivated Zinc Plated 745-4716
Specifications
| Country of Origin | Turkey |
|---|---|
| Brand | RS PRO |
| Material | Steel |
| Maximum Operating Pressure | 300 bar |
| Model | 745-4716 |
| Finish | Passivated Zinc Plated |
| Maximum Operating Temperature | 125°C |
| Thread Size | 3/8 in |
| Sub Type | Union |
| Seal Material | Nitrile Rubber |
| Minimum Operating Temperature | -25°C |
| Lock Type | Ball Lock |
| Standards/Approvals | ANSI/ESD S20.20:2014 |
| Thread Standard | BSP |
| Thread Gender | Female |
| Standards/Approvals ANSI/ESD S20.20 | 2014 |
| Faster Carbon Steel Female Hydraulic Quick Connect Coupling, BSP 3/8 FemaleBrand | Faster |
Key Features
- Durable steel construction with corrosion-resistant passivated zinc plating.
- Ball locking style for secure and leak-free connections.
- Female BSP 3/8 inch thread interface for wide compatibility.
- Nitrile rubber seal with secondary PTFE backup for enhanced leak prevention.
- Operates between -25°C to +125°C temperature range.
- Maximum working pressure rated at 300 bar.
- Compliant with ISO 7241-A Series A hydraulic coupling standards.
Product Description
RS PRO 745-4716 is a steel Hydraulic Quick Connect Coupling designed for female BSP 3/8 inch threaded connections, capable of operating at pressures up to 300 bar. It is constructed from steel with a passivated zinc-plated finish to enhance corrosion resistance, making it suitable for demanding industrial, agricultural, and manufacturing fluid power applications.
This coupling uses a ball lock mechanism which provides secure and rapid connection and disconnection, minimizing fluid losses and downtime. The sealing system incorporates nitrile rubber backed by a secondary PTFE seal for reliable fluid containment under diverse conditions.
Certified to ISO 7241-A as a Series A coupling, it ensures compatibility and performance with many compatible hydraulic equipment series, including Faster ANV, Hansen HA 15000, Intertraco A, Safeway S565, and Stucchi BIR series. The product’s operational temperature range is from -25°C to +125°C, making it adaptable for variable environmental conditions.
Additional electrostatic protection standards compliance includes ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 to enhance safety in sensitive industrial environments. It features an overall diameter of 31 mm, length of 57 mm, and requires a spanner size of 22 mm for installation and maintenance.
This quick connect coupling is ideal for use in hydraulic systems in sectors such as construction machinery, agricultural equipment, and industrial fluid transfer systems. The robust steel body combined with reliable sealing assures longevity and safety in hydraulic circuit operations.
Durable steel construction with corrosion-resistant passivated zinc plating. Ball locking style for secure and leak-free connections. Female BSP 3/8 inch thread interface for wide compatibility. Nitrile rubber seal with secondary PTFE backup for enhanced leak prevention.
Operates between -25°C to +125°C temperature range. Maximum working pressure rated at 300 bar. Compliant with ISO 7241-A Series A hydraulic coupling standards. Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards.
Explore the broad range of RS PRO hydraulic fittings and couplings available on EnvMart, tailored for industrial fluid power applications requiring reliability and ease of maintenance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this coupling is rated at 300 bar.
This model operates within a temperature range of -25°C to +125°C.
It features a female BSP 3/8 inch thread interface, allowing for wide compatibility with various hydraulic systems.
The coupling is constructed from steel and has a passivated zinc-plated finish for enhanced corrosion resistance.
It uses a nitrile rubber seal backed by a secondary PTFE seal for improved leak prevention.
This coupling employs a ball lock mechanism, ensuring secure and leak-free connections.
The overall diameter is 31 mm, and the length is 57 mm, requiring a spanner size of 22 mm for installation.
It is compliant with ISO 7241-A Series A hydraulic coupling standards and also conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic control.
It is suitable for use in hydraulic systems across sectors such as construction machinery, agricultural equipment, and industrial fluid transfer systems.
The ball locking style provides a secure connection that minimizes fluid losses and reduces downtime during connection and disconnection.
This product is manufactured in Turkey.
The sub-type of this coupling is a union, designed for quick connection and disconnection in hydraulic applications.
