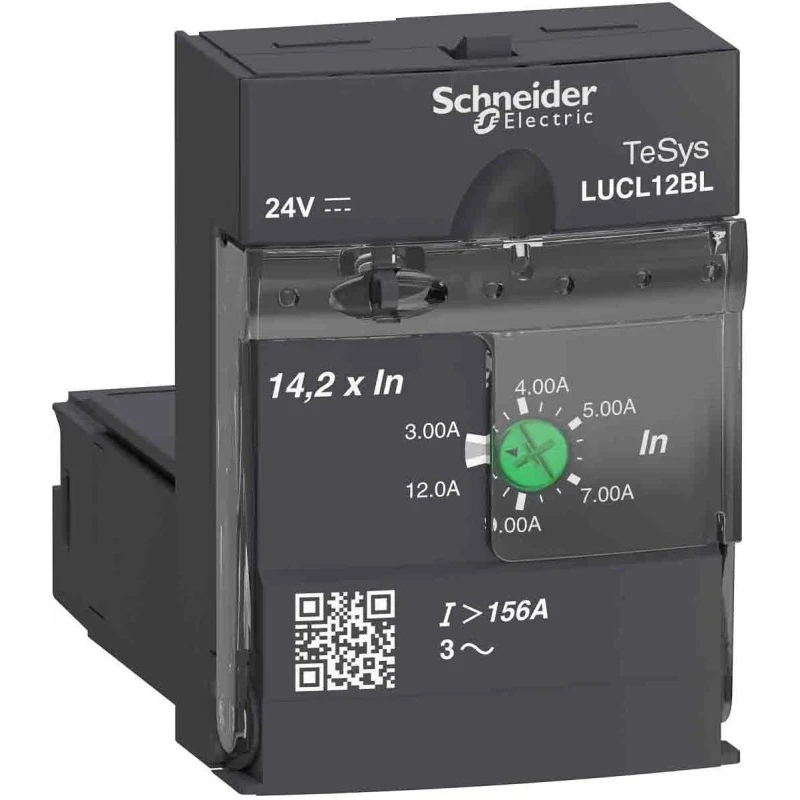

Schneider Electric TeSys U Advanced Motor Starter, 690V, 9 kW, 12A, IP20, IP40 LUCL12BL

Schneider Electric LUCL12BL Advanced Motor Starter offers a robust and modular motor control solution suited for industrial, manufacturing, and automation applications. With a power rating of 9 kW, current rating of 12A, and maximum voltage of 690V, this starter provides reliable performance under diverse electrical conditions.

The TeSys U series features a modular configuration that enables users to design custom Motor Starters by combining plug-in modules and power bases. This flexibility allows for quick assembly, easy wiring, and later customization of protection parameters and control voltages, making it ideal for Direct-On-Line (DOL) starting applications.

Equipped with IP20 and IP40 protection ratings, the device ensures safety against dust and solid objects, enhancing durability in industrial environments. Its compact form factor with 45mm width facilitates space-saving installation in control panels, contributing to reduced panel size and wiring complexity.

The broadband electronic control unit provides enhanced overload protection while reducing component count. The integrated diagnostics with plug-and-play modules enable faster fault detection and quicker recovery, minimizing downtime in critical operations.

This motor starter meets multiple international standards, including EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, and CSA C22.2 No. 60947-4-1. It is also certified for use in hazardous areas with ATEX certification, ensuring operational safety in demanding environments.

The magnetic control unit options provide additional motor protection for variable speed drives and soft starters, extending application versatility. The plug-in modularity allows convenient upgrades and component replacements without complex rewiring.

Compatible with LU9 type blocks (sold separately), the power base supports direct on line or reversing configurations with auxiliary contacts included. Schneider Electric is transitioning the product color from white to black, which does not affect fit, form, or function.

Overall, the LUCL12BL motor starter is designed for efficiency, modularity, and reliable motor protection in industrial automation, manufacturing, electrical distribution, and HVAC systems.

Modular design enables customizable motor control solutions. Supports 9 kW power at 690V and 12A current rating. Compact 45mm width for space-saving panel installation. Broadband electronic control for improved overload protection.

Certified with ATEX and multiple global standards for safety. Easy upgrades and diagnostics with plug-and-play modules. Suitable for industrial automation and manufacturing environments. Compatible with LU9 type blocks for extended configurations.

IP20 and IP40 protection ratings for dust and solid object resistance. Explore more Schneider Electric automation and control gear products on EnvMart for reliable and advanced industrial solutions.
