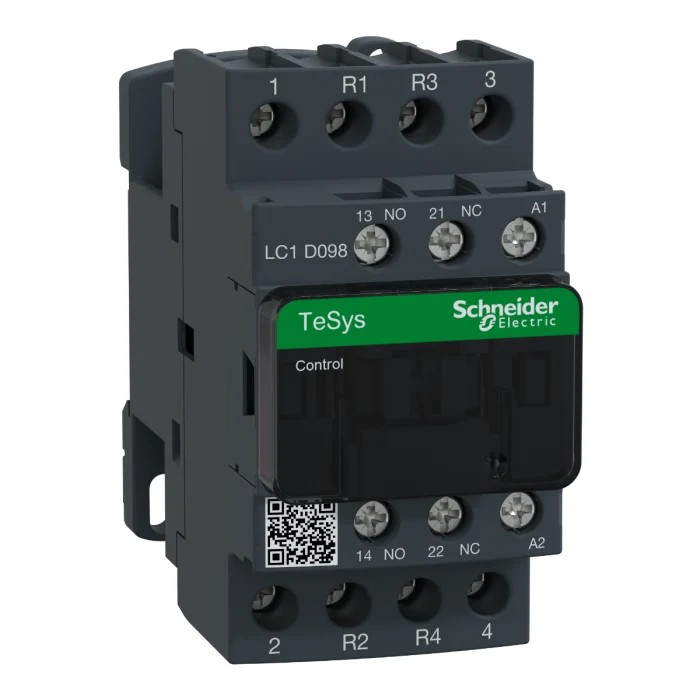

Schneider Electric LC1D Contactor, 230V AC Coil, 4-Pole, 20A 240V, 2 NO/2 NC, 690V AC/DC LC1D098U7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Resistive Load |
| Length | 85mm |
| Model | LC1D098U7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed with a 230V AC coil voltage for efficient operation.
- Features 4 poles with 2 normally open and 2 normally closed contacts.
- Suitable for controlling resistive loads and motor starters.
- Equipped with screw-type terminals and IP20 finger-safe protection.
- Operates reliably in temperatures ranging from -5°C to 50°C.
- Mountable on DIN rails or panels for versatile installation.
- Complies with IEC 61095 standards ensuring quality and safety.
- Auxiliary contacts configured as 1 NO and 1 NC for additional control options.
Product Description
Schneider Electric LC1D098U7 Contactor is engineered for reliable operation in industrial and electrical automation applications with a 230V AC coil and 4-pole configuration. This contactor supports a contact current of 20A at 240V, handling resistive loads efficiently.
Featuring screw-type terminals with IP20 finger-safe protection, it supports both North American and international terminal markings. The device can be mounted on DIN rails or panels, providing flexible installation options in various control systems.
This contactor complies with IEC 61095 standards and is designed to withstand shocks and vibrations, ensuring long mechanical and electrical life. It functions reliably within an operating temperature range of -5°C to 50°C.
The auxiliary contacts offer 1 normally open and 1 normally closed contact, expanding its control capability. Additionally, the control circuit voltage operates at 240V, compatible with common industrial control requirements.
These contactors are ideal for use in industrial automation, motor starters, HVAC systems, manufacturing processes, and other electrical control applications. Designed with a 230V AC coil voltage for efficient operation.
Features 4 poles with 2 normally open and 2 normally closed contacts. Suitable for controlling resistive loads and motor starters. Equipped with screw-type terminals and IP20 finger-safe protection. Operates reliably in temperatures ranging from -5°C to 50°C.
Mountable on DIN rails or panels for versatile installation. Complies with IEC 61095 standards ensuring quality and safety. Auxiliary contacts configured as 1 NO and 1 NC for additional control options. Offers resistance against shock and vibration for durability.
Incorporates a coil control circuit voltage of 240V. Explore a range of Schneider Electric Contactors and automation products on EnvMart for efficient, durable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 230V AC.
The maximum contact current for the LC1D098U7 is 20A at 240V.
This contactor features a 4-pole configuration.
It is suitable for controlling resistive loads and motor starters.
The dimensions are 85mm in length, 45mm in width, and 92mm in depth.
The operating temperature range is from -5°C to 50°C.
It is equipped with screw-type terminals and features IP20 finger-safe protection.
Yes, this model can be mounted on DIN rails or panels for versatile installation.
The auxiliary contacts are configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with IEC 61095 standards, ensuring quality and safety.
The control circuit voltage operates at 240V.
This contactor is designed for use in industrial automation, motor starters, HVAC systems, and other electrical control applications.
