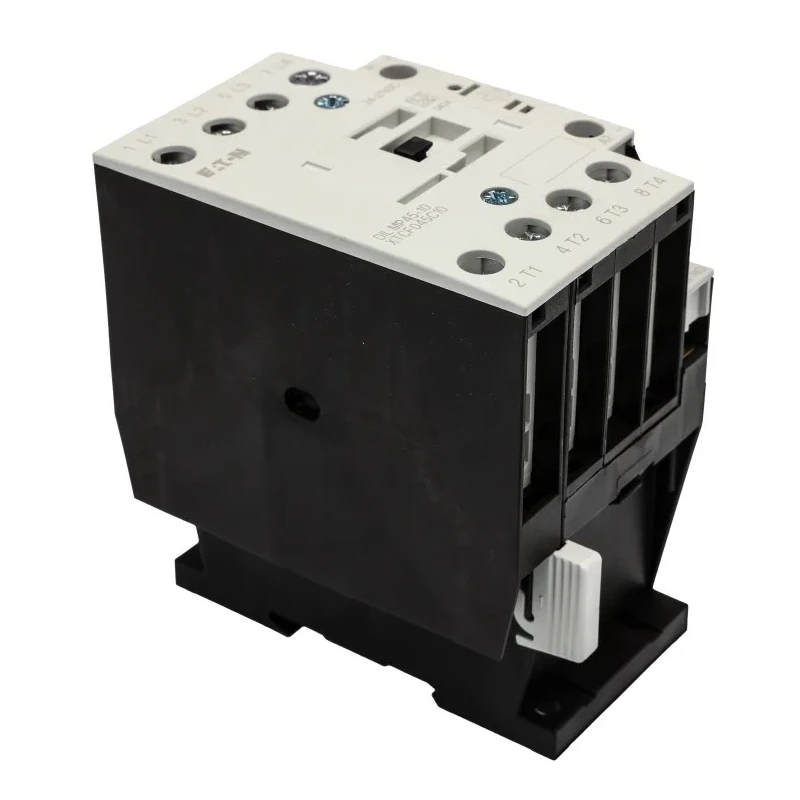

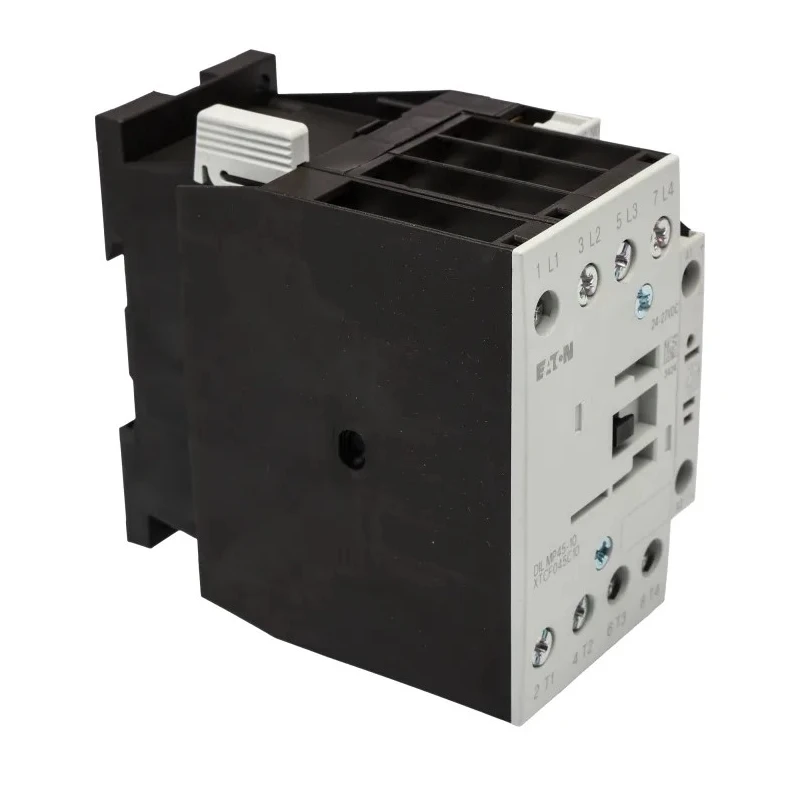

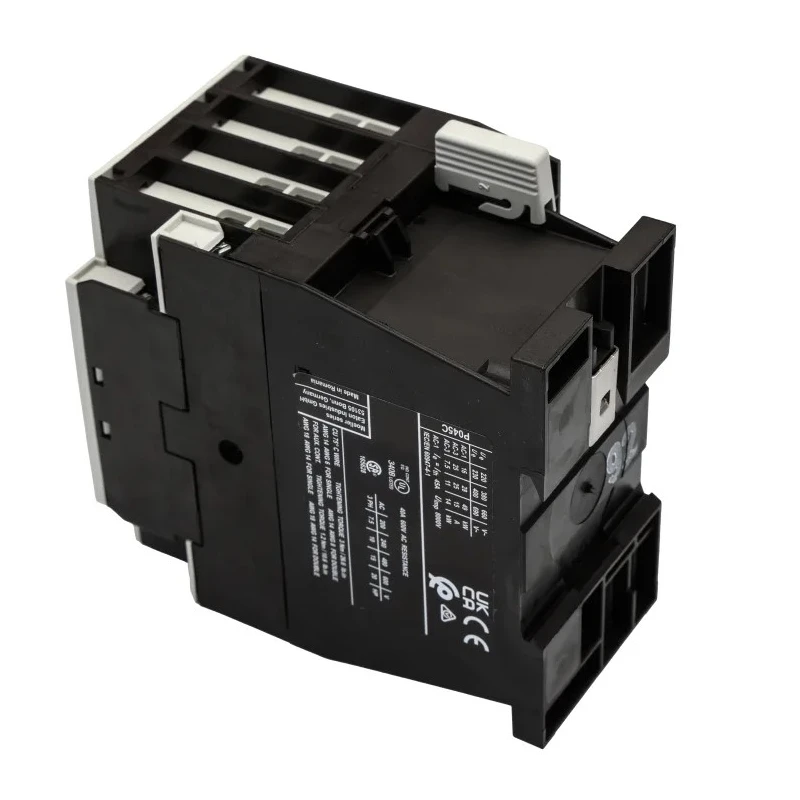

Eaton DILM Contactor 24V DC Coil 4-Pole 45A 11 kW Motor Control DIN Rail Mount 109840 DILMP45-10(RDC24)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | 109840 DILMP45-10(RDC24) |
| Depth | 138mm |
| Width | 58mm |
| Mount Type | DIN Rail |
| Series | DILM |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | EN 60947 |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Contact Current | 45A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 45A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
Key Features
- Designed specifically for DC coil operation with 24V DC coil voltage.
- Four-pole configuration supporting 45A contact current rating.
- Power rating of 11 kW suitable for various motor control roles.
- DIN rail mount ensures easy installation and integration into control panels.
- Screw terminal type for secure and reliable electrical connections.
- Operational temperature range from -25°C to 60°C accommodates harsh environments.
- Mechanical lifespan up to 10 million operations for enhanced durability.
- Compliance with EN 60947 standard guarantees industrial safety and quality.
Product Description
Eaton 109840 DILMP45-10(RDC24) Contactor is a reliable industrial automation component designed for motor control and resistive load applications. Featuring a 24V DC coil and a robust 4-pole configuration, this contactor supports a 45A contact current and is rated for 11 kW power, making it suitable for a wide range of electrical and automation equipment. Its compact DIN rail mount design allows for straightforward installation within control panels.
This contactor includes screw-type terminals to ensure secure wiring connections and supports control circuit voltages of 24V DC. It is built to withstand operating temperatures from -25°C to 60°C, accommodating diverse industrial environments. With an IP00 protection rating, it is intended for use in controlled indoor settings.
The mechanical durability of up to 10 million operations ensures long-term reliability in demanding usage scenarios. Eaton's adherence to EN 60947 standards further guarantees compliance with international quality and safety benchmarks.
24V DC coil operation for efficient electromagnetic actuation. Four poles and four normally open (4 NO) contacts for comprehensive circuit control. 45 amperes contact current rating suitable for heavy motor loads. Power rating of 11 kW at 400V AC provides versatility for various applications.
Screw terminal configuration facilitates easy wiring and maintenance. Operational temperature range from -25°C to 60°C suitable for industrial conditions. Compact size (138mm depth x 85mm length x 58mm width) optimizes control panel space.
Mechanical lifespan rated at up to 10 million cycles. Applications in motor control, industrial machinery, HVAC control circuits, and general automation systems.
This Eaton contactor effectively switches both AC and DC loads and suits flexible control circuit wiring up to 2.5 mm² cable size. The product supports high industrial performance and complies with required international standards, making it ideal for electrical, manufacturing, HVAC, and automation sectors.
Explore more automation and control gear products from Eaton available on EnvMart for industrial and commercial electrical system requirements.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 11 kW at 400V AC, making it suitable for various motor control applications.
This model supports a contact current rating of 45A, which is suitable for heavy motor loads.
It is designed for DIN rail mounting, allowing for easy installation within control panels.
The operational temperature range is from -25°C to 60°C, accommodating diverse industrial environments.
It features screw-type terminals, ensuring secure and reliable electrical connections.
This contactor has a four-pole configuration, with four normally open (4 NO) contacts for circuit control.
It complies with the EN 60947 standard, ensuring industrial safety and quality.
The mechanical lifespan is rated up to 10 million operations, providing long-term reliability in demanding applications.
The coil voltage for this contactor is 24V DC, designed specifically for DC coil operation.
It is suitable for motor control, resistive load applications, industrial machinery, and HVAC control circuits.
The dimensions are 138mm in depth, 85mm in length, and 58mm in width, optimizing control panel space.
It includes one auxiliary contact configured as one normally open (1 NO) contact.
