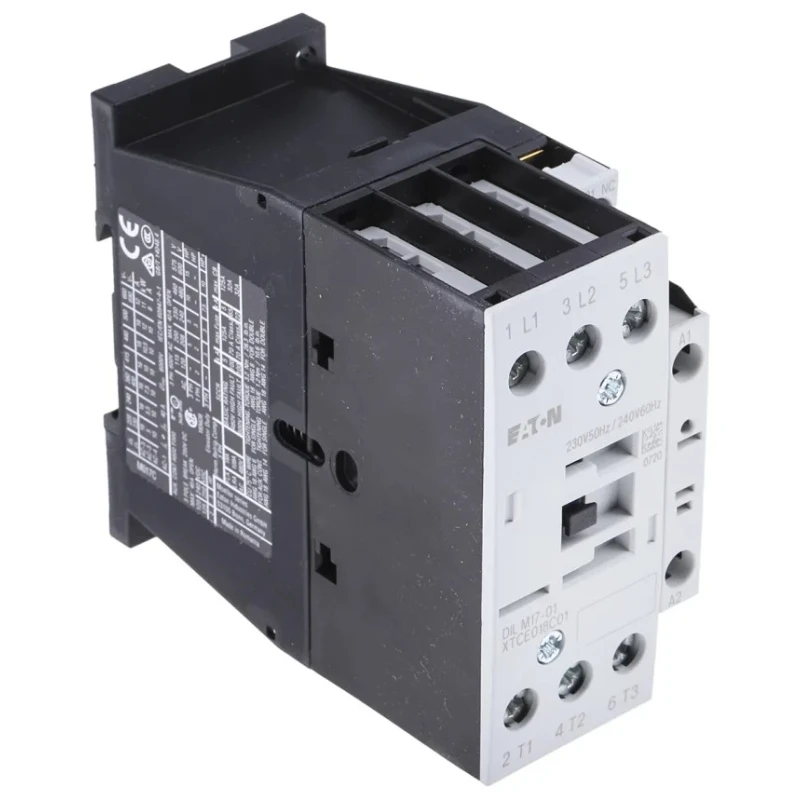

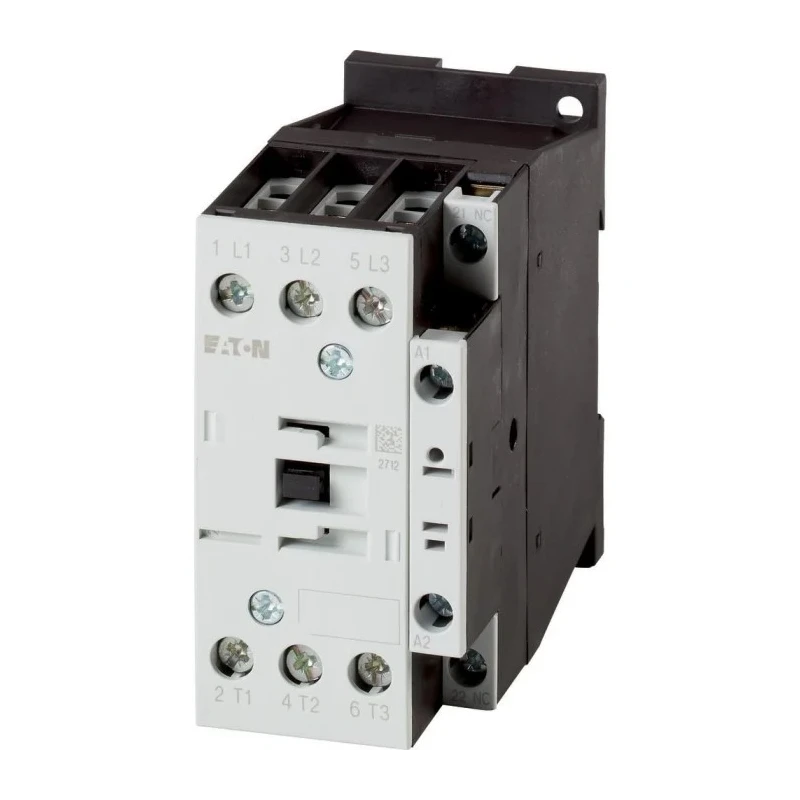

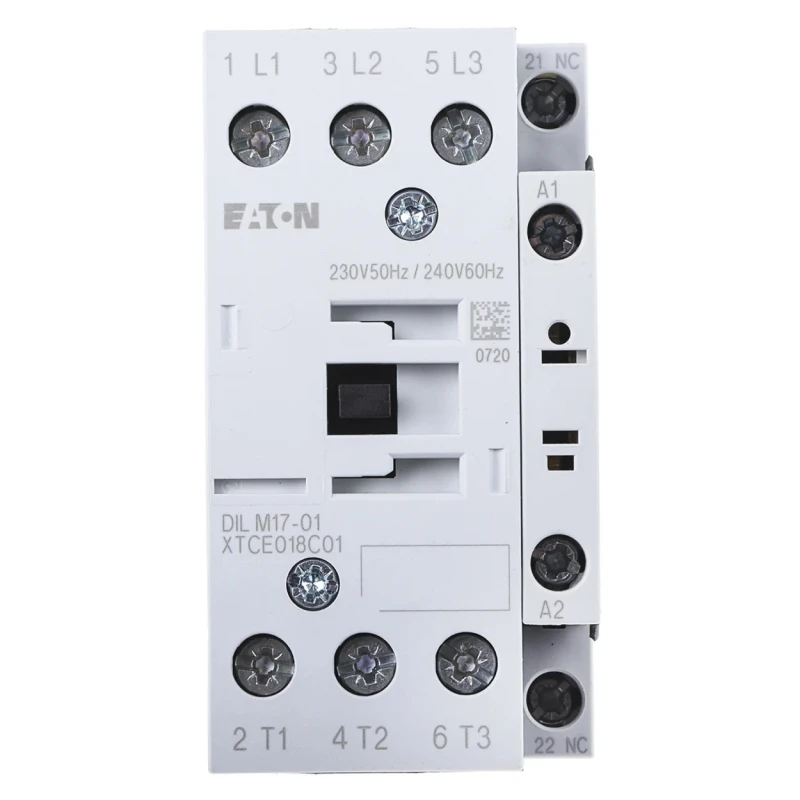

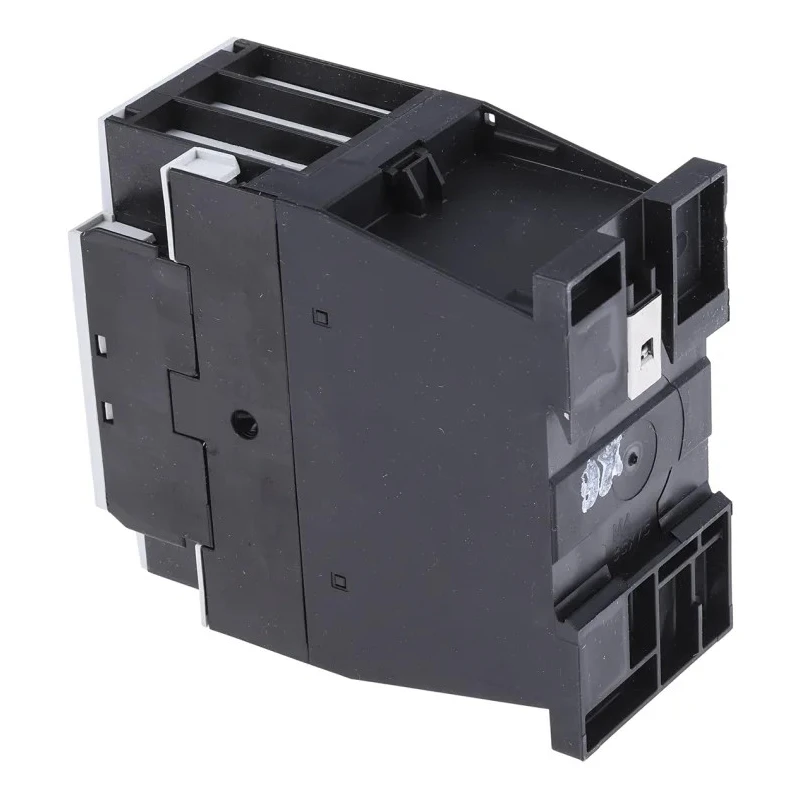

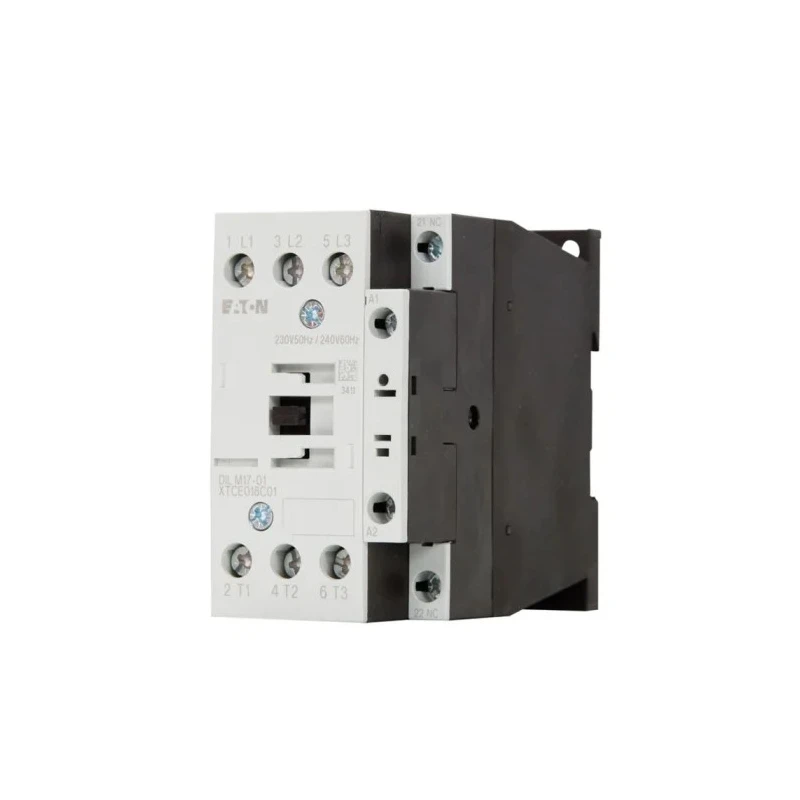

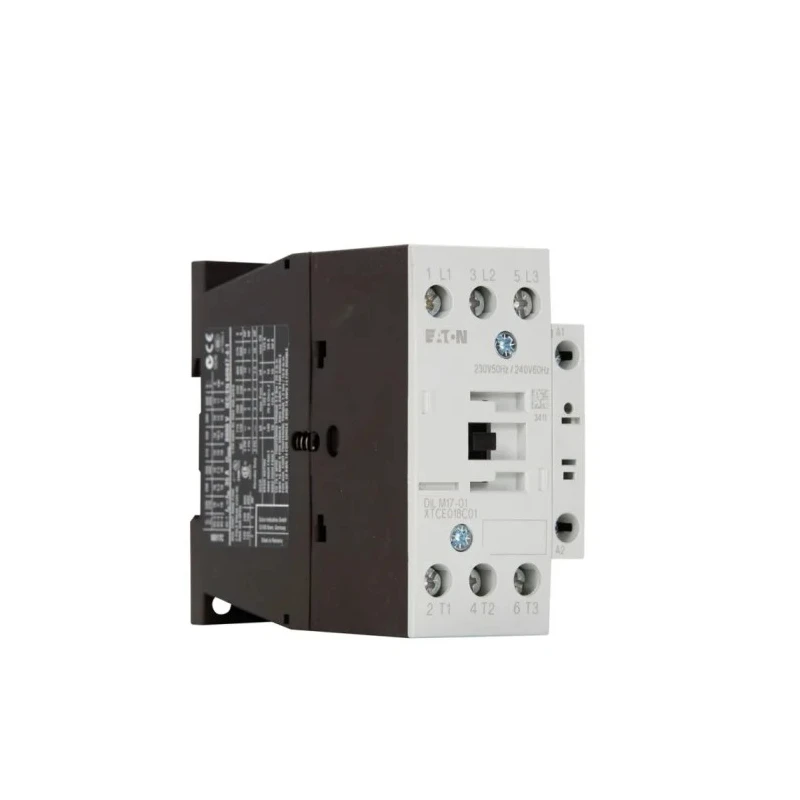

Eaton DILM Contactor, 230V AC Coil, 3-Pole, 17 A, 7.5 kW Power Rating, 3 NO Contacts 277036 DILM17-01(230V50HZ,240V60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | 277036 DILM17-01(230V50HZ,240V60HZ) |
| Depth | 138mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DILM |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EN 60947 |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 17A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- This contactor features a 3 NO (normally open) contact configuration suitable for versatile industrial applications.
- It supports a contact voltage of 400V AC and has a coil voltage control circuit of 230V AC.
- The device is optimized for motor control functions and can handle 40 A operational current.
- The compact dimensions (45 mm width, 85 mm length, 138 mm depth) allow easy integration in DIN rail mount setups.
- Designed to operate reliably in temperature ranges from -25°C to 40°C for challenging industrial environments.
- Includes one auxiliary contact configured as 1 NC (normally closed) for enhanced control options.
- Screw clamp terminal type simplifies wiring and installation with support for solid and stranded wires.
- Complies with EN 60947 standards ensuring safety and performance reliability.
Product Description
Eaton 277036 DILM17-01(230V50HZ,240V60HZ) Contactor, with a 230V AC coil voltage and 3-pole design, is engineered for reliable motor starting and resistive load applications in industrial automation. Rated at 17 A and 7.5 kW power, it features 3 normally open contacts and a 400V AC contact voltage, making it ideal for factory automation, mechanical engineering, and railway industry motor control needs.
The contactor supports an operational current of 40 A and comes with one auxiliary contact configured as normally closed to expand control capabilities. Its compact form factor with dimensions 45 mm (W) x 85 mm (L) x 138 mm (D) enables easy mounting on DIN rails, helping save space in control panels.
Designed to perform reliably in harsh environments, this Eaton contactor will operate within temperature ranges from -25°C to 40°C. The screw clamp terminals accept standard stranded or solid wires between 18 and 14 AWG, ensuring ease of installation without special tools.
Certified to EN 60947 standards, it provides 8 kV AC impulse protection to shield internal circuits against electrical surges and overloads, enhancing safety and durability. The device is capable of lasting up to 5,000 operations per hour while maintaining a mean time between failures of up to 10 million operations for long-term service.
This device is suited for industrial, electrical automation, manufacturing, and mechanical engineering applications. Its motor control functionality supports efficient and safe start-stop operations. Compact dimensions allow integration into tight control system layouts.
Includes one auxiliary contact for expanded control circuit options. Screw clamp terminals simplify the wiring process for technicians. Complies with international safety and performance standards. High impulse protection guards against harsh electrical environments.
Reliable operation under extended temperature ranges for demanding conditions. Designed for heavy-duty industrial use with long service life. Explore a wide range of Eaton Contactors and control gear at EnvMart for diverse electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILM contactor has a power rating of 7.5 kW.
This model operates with a coil voltage of 230V AC.
The contactor supports a maximum operational current of 40 A.
The contactor has dimensions of 45 mm in width, 85 mm in length, and 138 mm in depth.
It is designed for DIN rail mounting, allowing for easy integration into control panels.
This contactor features a configuration of 3 normally open (NO) contacts and 1 normally closed (NC) auxiliary contact.
It operates reliably in temperature ranges from -25°C to 40°C.
The contact voltage rating is 400V AC.
It complies with EN 60947 standards, ensuring safety and performance reliability.
It features screw clamp terminals that accept solid and stranded wires.
This contactor is suitable for motor control and resistive load applications in industrial automation.
It is capable of lasting up to 5,000 operations per hour.
