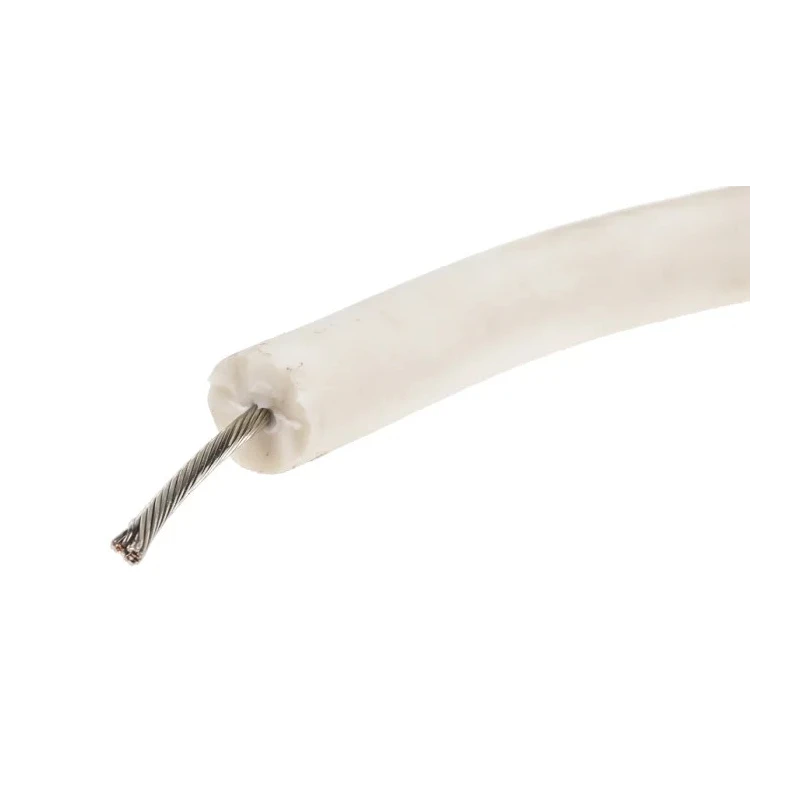

Alpha Wire Hook Up Wire Silicone Series White 0.75 mm² 18 AWG 16/0.25 mm Strands 30 m 391897 WH005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40000V dc |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.75mm² |
| Model | 391897 WH005 |
| Cable Length | 30m |
| Series | Hookup Wire Silicone |
| Outside diameter | 0.241in |
| Maximum Operating Temperature | 150°C |
| Conductor Material | Copper |
| Sub Type | UL3239 |
| Cable Type | Hookup |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Silicone Rubber |
| Standards/Approvals | UL Listed |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 741-7887Brand: Alpha WireManufacturers Part No.: 391897 WH005 |
| Jacket Colour | White |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 18AWG |
| Number of Strands | 16 |
| Core Strands | 16 x 0.25mm |
| Size of Strands | 0.25mm |
Key Features
- Rated for a maximum continuous temperature of 150°C for elevated-heat environments.
- Constructed with 16 fine copper strands of 0.25 mm diameter for superior flexibility.
- Features silicone rubber jacket providing VW-1 flame retardant rating for enhanced safety.
- Operating temperature range from -40°C to 150°C suitable for varied environments.
- UL Listed with AWM Style 3239 compliance ensuring reliable quality standards.
- 30 meter cable length, ideal for continuous installation requirements.
- White jacket color suitable for visible wiring and color-coded assemblies.
- Designed for use in control cabinets, heaters, test rigs, sensors, and automation machinery with frequent motion.
Product Description
Alpha Wire 391897 WH005 Hook Up Wire Silicone Series 0.75 mm² 18 AWG hook up wire features a 16-strand 0.25 mm diameter copper core insulated with a white silicone rubber jacket. This wire is engineered for demanding industrial applications requiring excellent thermal endurance and dielectric performance. Rated for a maximum continuous operating temperature of 150°C and a high voltage rating of 40000 V DC, it supports high-voltage test rigs, heaters, and control cabinets.
The flexible copper conductor is designed for tight routing and movement, making it suitable for wiring in automation machinery and aerospace systems. The silicone jacket imparts VW-1 flame retardant flame behavior for safety, while operative temperature ranges from -40°C to 150°C allow operation in wide environmental conditions.
The product meets UL Listing and AWM Style 3239 certification standards, ensuring industry-recognized quality and performance. The 30-metre length on a continuous reel supports on-site bespoke installation requirements. The white jacket color enables easy identification and color-coding in wiring assemblies.
This hook up wire is ideal for applications including industrial sensors, thermocouple connections, aerospace and transportation wiring, and high-voltage insulation testing equipment. The 16-strand copper conductor construction prevents work-hardening, maintaining flexibility during installation.
Maximum continuous temperature 150°C. Voltage rating 40000 V DC for high voltage systems. Flexible 16-strand 0.25 mm copper conductor. Silicone rubber jacket with VW-1 flame retardant rating. Operating temperature range of -40°C to 150°C.
UL Listed, AWM Style 3239 approved. 30 m cable length on continuous reel. White jacket for color-coded wiring.
This wire is part of the Alpha Wire Hook Up Wire Silicone series designed for industrial, electrical automation, manufacturing, aerospace, and laboratory applications requiring flexible, high-temperature wiring capable of reliable performance in challenging environments.
For more quality hook up wire and silicone insulated electrical cables, explore the full range in the Hook Up Wire category on EnvMart for diverse industrial and technical uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this hook up wire is 150°C.
This model has a voltage rating of 40000 V DC, making it suitable for high voltage applications.
The cross-sectional area of this wire is 0.75 mm².
The wire features a copper conductor and a silicone rubber jacket, providing flexibility and thermal endurance.
The cable length is 30 meters, allowing for continuous installation requirements.
The minimum operating temperature is -40°C, making it suitable for a wide range of environments.
This wire is designed for use in control cabinets, heaters, test rigs, sensors, and automation machinery.
The American Wire Gauge rating of this wire is 18 AWG.
This model consists of 16 strands, each with a diameter of 0.25 mm, providing superior flexibility.
The silicone rubber jacket provides a VW-1 flame retardant rating for enhanced safety.
Yes, this wire is UL Listed and complies with AWM Style 3239 standards, ensuring reliable quality.
The outside diameter of this wire is 0.241 inches.
