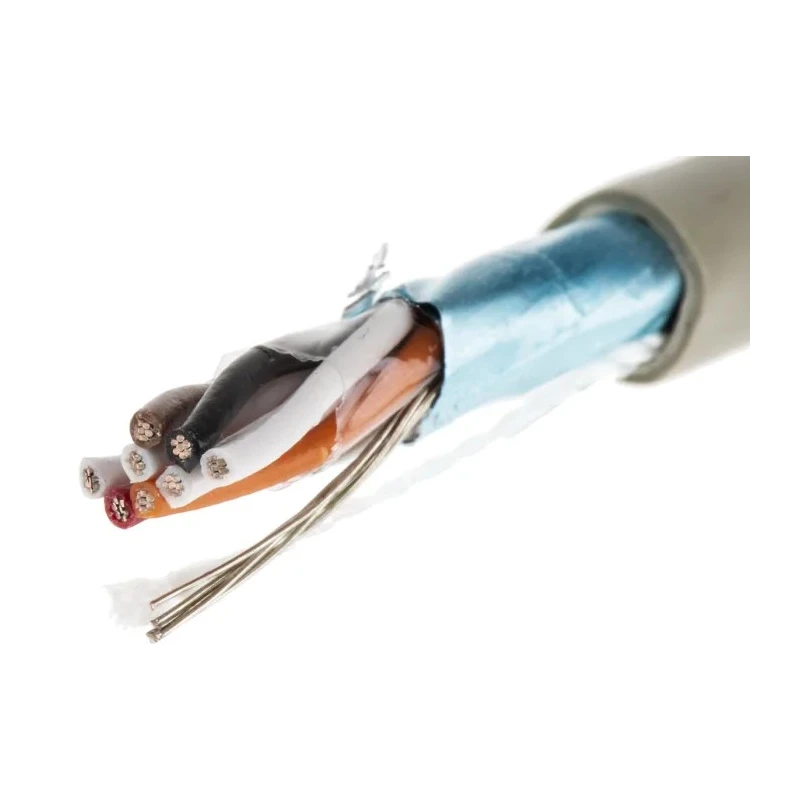

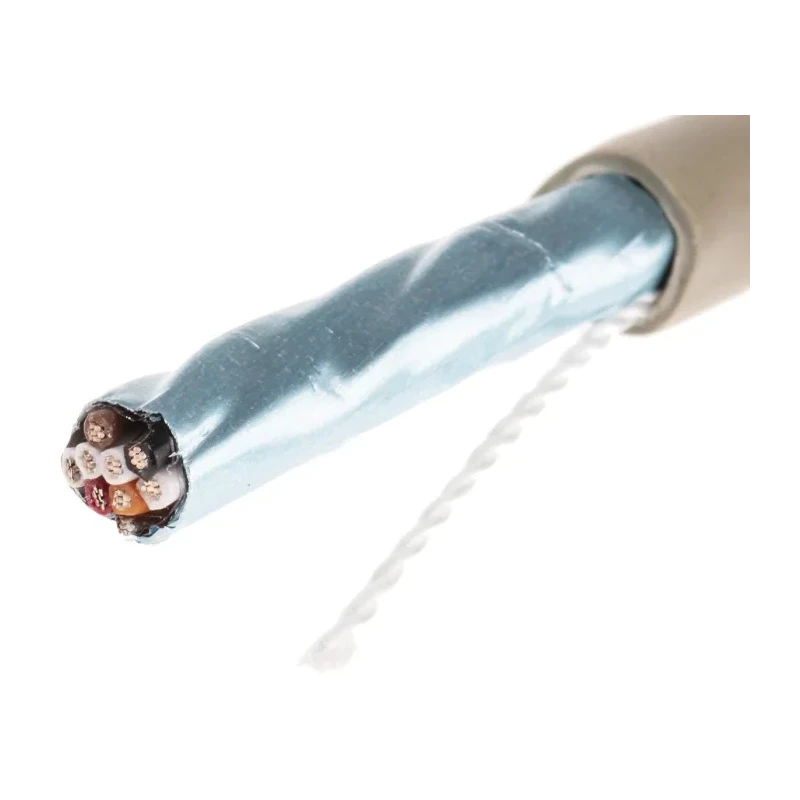

Alpha Wire Pro-Tekt Series Data Cable 4 Pairs 8 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B964042 GE321

Alpha Wire B964042 GE321 Pro-Tekt Series Data Cable is a high-performance flexible cable sheathed in premium grade polyvinyl chloride (PVC) designed for harsh industrial environments. This cable, 4 pairs with 8 cores, has a cross-sectional area of 0.35 mm² per conductor and an overall length of 50 meters. The grey PVC jacket provides flame retardancy and excellent resistance to abrasion, UV light, and oils, making it suitable for industrial automation and commercial electronics applications.

The cable operates reliably within a temperature range from -30°C to +105°C and supports a nominal voltage of 300V. It features stranded tin copper wire conductor material with 7 strands of 30 AWG size for enhanced flexibility and durability. The cable's nominal outside diameter is approximately 6.86 mm with a jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.010 inch (0.25 mm).

The Pro-Tekt Series offers multiple shielding options including foil shield (aluminium/polyester) and braided shielding of tinned copper to ensure electromagnetic resistance and reduce electrical noise in demanding environments.

This cable is color-coded with pairs White + Black, White + Brown, White + Red, and White + Orange for easy and accurate identification during installation. It is built to meet the requirements of standards such as CE, CSA Certified, and UL certifications.

Common industrial applications include use in power equipment, industrial automation, medical instrumentation, aerospace systems, petrochemical plants, and commercial electronic devices where reliable, multi-pair data transmission is critical.

The cable features a 300V voltage rating suitable for data transmission in industrial settings. It has a nominal diameter of 6.86 mm with a flame retardant polyvinyl chloride jacket. The conductor material is tin copper wire with stranded 7/30 strands for superior flexibility.

Designed for an operating temperature range of -30°C to +105°C, it offers robust performance in harsh environments. The cable pairs are color coded as White + Black, White + Brown, White + Red, and White + Orange for easy identification.

It provides excellent abrasion resistance and UV and oil resistance on the PVC sheath. The Pro-Tekt series includes options with foil and braid shielding to reduce electromagnetic interference. This data cable is ideal for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
