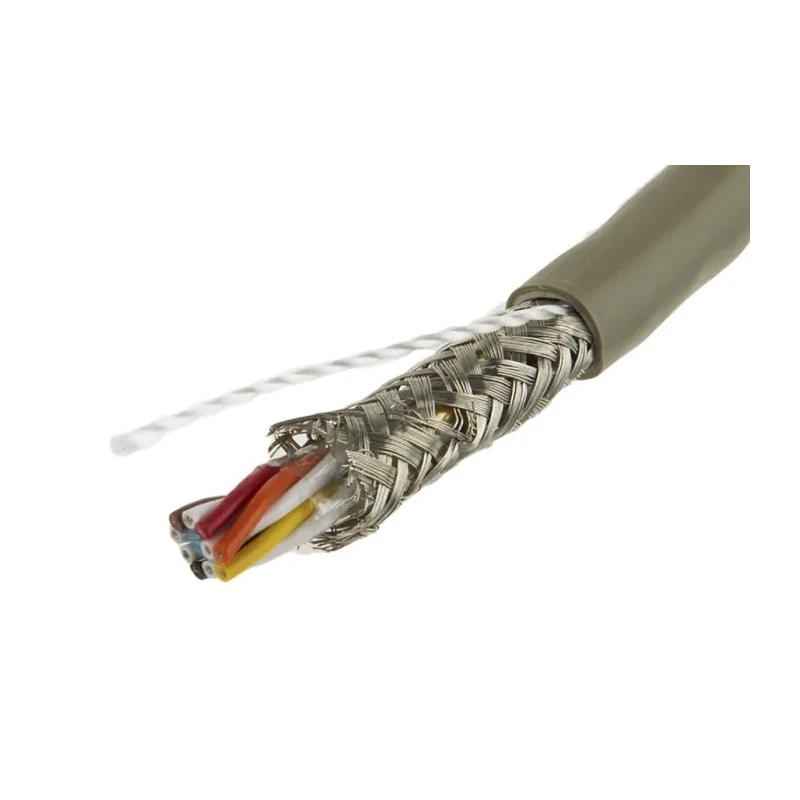

Alpha Wire Pro-Tekt Series Data Cable 5 Pairs 10 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B963053 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23 mm² |
| Model | B963053 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 7.24mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4888Brand: Alpha WireManufacturers Part No.: B963053 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 5 |
| Pairs | 5, White + Black, White + Brown, White + Red, White + Orange, White + YellowNominal Diameter: 0.285 inch (7.24 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/32Insulation Thickness: 0.010 (0.25 mm)24 AWG (0.32 mm²)Jacket Colour: Grey |
Key Features
- Constructed with 5 twisted pairs totaling 10 cores, ideal for complex data communication.
- Cross-sectional area of 0.23 mm² provides efficient electrical properties.
- Durable grey polyvinyl chloride jacket ensures flame retardance and abrasion resistance.
- Supports operating temperatures from -30°C to 105°C, suitable for harsh industrial environments.
- Tinned copper wire conductors with fine 7-strand 32 AWG construction enhance flexibility and conductivity.
- Nominal cable diameter of 7.24 mm for space-efficient installations.
- Complies with CE, CSA, and UL standards for safety and reliability.
- Designed with braid shield for electromagnetic interference protection in industrial settings.
Product Description
Alpha Wire B963053 GE321 Pro-Tekt Series Data Cable is a high-performance, flexible multipair data cable featuring 5 pairs (10 cores) with a cross-sectional area of 0.23 mm² and a 50 m length. It is sheathed in a premium grade grey polyvinyl chloride (PVC) jacket, offering flame retardance and excellent abrasion resistance.
This cable accommodates an operating temperature range from -30°C to 105°C, making it suitable for demanding industrial environments. The conductors are composed of tinned copper wire with 7 strands of 32 AWG, ensuring flexibility and high conductivity. The nominal outside diameter is 7.24 mm with a jacket thickness of 0.81 mm and insulation thickness of 0.25 mm, offering a robust yet compact solution.
The Pro-Tekt series incorporates a tightly woven braid shield made of tinned copper, providing excellent mechanical strength and superior protection against electromagnetic interference, essential for maintaining data integrity in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics applications.
Alpha Wire's Pro-Tekt cables are engineered for combining data, power, coaxial, and AV cores within a single cable, facilitating efficient installations and reducing downtime caused by cable failure.
Constructed with stranded conductors to increase cable flexibility. Operating temperature range from -30°C up to +105°C. UV and oil resistant PVC sheath and insulation. Multiple shielding options provide enhanced electromagnetic resistance.
Colour-coded tinned copper conductors aid in easy identification. Excellent abrasion resistance suitable for tough industrial conditions. Compliant with IEC EN 60332-1, IEC EN 60332-2, UL CM, UL AWM 2464 VW-1, and CSA CMG FT-4 standards.
This industrial-grade Data Cable is optimized for reliable performance in various sectors such as industrial automation, electrical power equipment, aerospace, and commercial electronics. Its superior shielding and robust construction make it an ideal choice for demanding applications operating in challenging environments.
Explore the comprehensive range of high-quality cables in the Electronics & Electricals category at EnvMart for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This data cable features a total of 10 cores, organized into 5 twisted pairs.
The cross-sectional area of the conductors is 0.23 mm².
The conductors are made of tinned copper wire with 7 strands of 32 AWG.
The nominal outside diameter of this cable is 7.24 mm.
This model complies with CE, CSA, and UL standards for safety and reliability.
The minimum operating temperature for this data cable is -30°C.
The cable is sheathed in a grey polyvinyl chloride (PVC) jacket, which is flame retardant and abrasion resistant.
This data cable has a length of 50 meters.
It features a tightly woven braid shield made of tinned copper, providing excellent protection against electromagnetic interference.
This cable is optimized for use in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics applications.
The voltage rating for this model is 300V.
