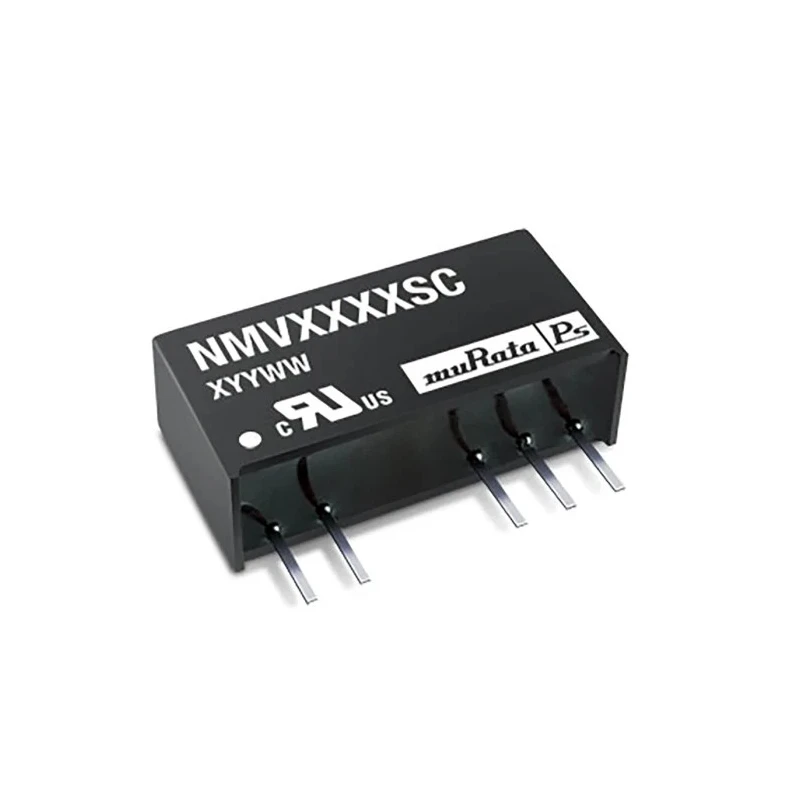

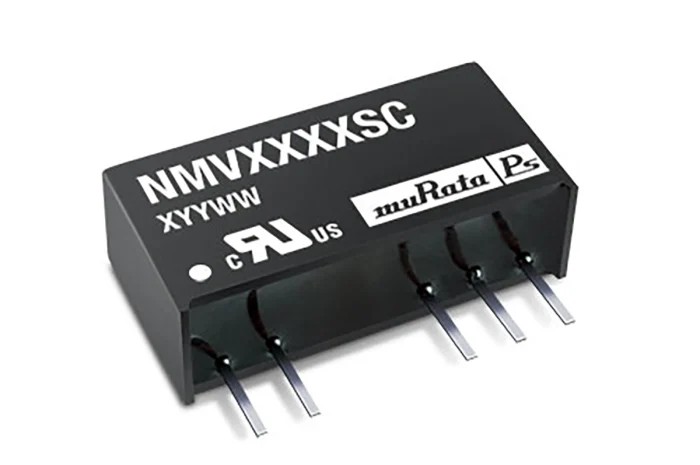

Murata Power Solutions NMV Series SIP7 DC/DC Converter 15V DC Output 33mA 10.8-13.2V Input 1W Through Hole NMV1215SC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMV DC/DC Converter, 15V dc |
| Brand | Murata Power Solutions |
| Efficiency | 76% |
| Length | 19.5mm |
| Model | NMV1215SC |
| Depth | 10mm |
| Gross Weight | 2.1g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NMV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 924000h |
| Number of outputs | 2 |
| Ripple and Noise | 17mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 33mA |
| Output Voltage Adjustment Range | 10.8/13.2 V |
| Isolation Voltage | 3kV dc |
| Output Voltage 2 | -15V dc |
| NMV1215S unregulated DC-DC,+/-15V 1WBrand | Murata Power Solutions |
Key Features
- Compact SIP7 plastic package suitable for through hole mounting.
- Provides dual outputs with high isolation voltage of 3kV DC.
- High efficiency converter with typical efficiency of 76 percent.
- Wide operating temperature range from -40 to 85 degrees Celsius.
- Unregulated output ensuring simple power conversion needs.
- Internal SMD construction promoting durability and reliability.
- No external components are required for operation.
- Ripple and noise rated at 17mV peak-to-peak for stable performance.
Product Description
Murata Power Solutions NMV1215SC is a single/dual output unregulated DC/DC converter in a SIP7 package designed for through hole mounting. It outputs 15V DC at 33mA with a maximum power of 1W. The device supports a broad input voltage range of 10.8V to 13.2V and features high isolation voltage of 3kV DC between input and output.
This model offers efficiency up to 76 percent and is designed to operate reliably within a temperature range from -40 to 85 degrees Celsius. It delivers low ripple and noise output at 17mV peak-to-peak, suitable for sensitive electronic circuits.
Constructed using internal Surface-Mount Device (SMD) technology and enclosed in a UL 94V-0 rated plastic SIP7 package, NMV1215SC requires no external components, simplifying integration and assembly in industrial and commercial power supply boards.
Its MTBF (Mean Time Between Failures) is rated at 924000 hours according to MIL-HDBK-217F at 25 degrees Celsius, indicating exceptional reliability for long-term usage.
This DC/DC converter is widely used in industrial, laboratory, manufacturing, electronics, and instrumentation applications where isolated and stable power conversion is essential. The compact size of 19.5mm length, 10mm width, and 10mm depth allows for dense PCB layouts without sacrificing performance.
Compact SIP7 plastic package suitable for through hole mounting. Provides dual outputs with high isolation voltage of 3kV DC. High efficiency converter with typical efficiency of 76 percent. Wide operating temperature range from -40 to 85 degrees Celsius.
Unregulated output ensuring simple power conversion needs. Internal SMD construction promoting durability and reliability. No external components are required for operation. Ripple and noise rated at 17mV peak-to-peak for stable performance.
MTBF rated at 924000 hours ensuring longevity in industrial applications. Ideal for industrial and electronic power supply applications. Explore more Murata Power Solutions and DC/DC Converters on EnvMart for reliable power management products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 15V DC.
The NMV1215SC supports an input voltage range of 10.8V to 13.2V DC.
It has a maximum output power of 1W.
The NMV1215SC has a typical efficiency of 76 percent.
It features a high isolation voltage of 3kV DC between input and output.
This model measures 19.5mm in length, 10mm in width, and 10mm in depth.
The ripple and noise is rated at 17mV peak-to-peak.
It operates reliably within a temperature range from -40 to 85 degrees Celsius.
This model provides dual outputs.
It is designed for through hole mounting.
The MTBF is rated at 924,000 hours according to MIL-HDBK-217F at 25 degrees Celsius.
It is compliant with RoHS standards.
