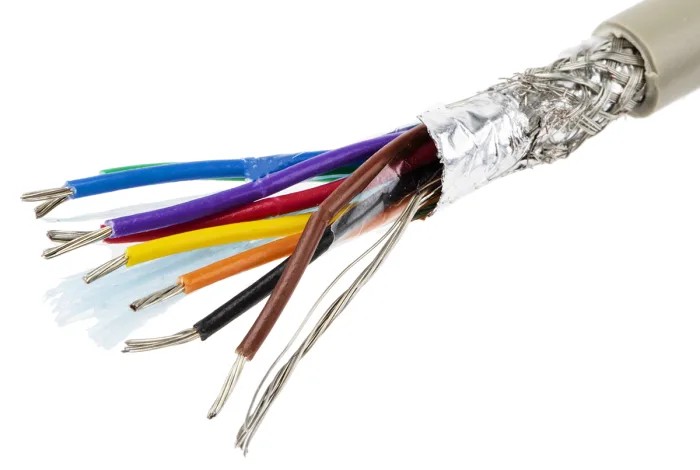

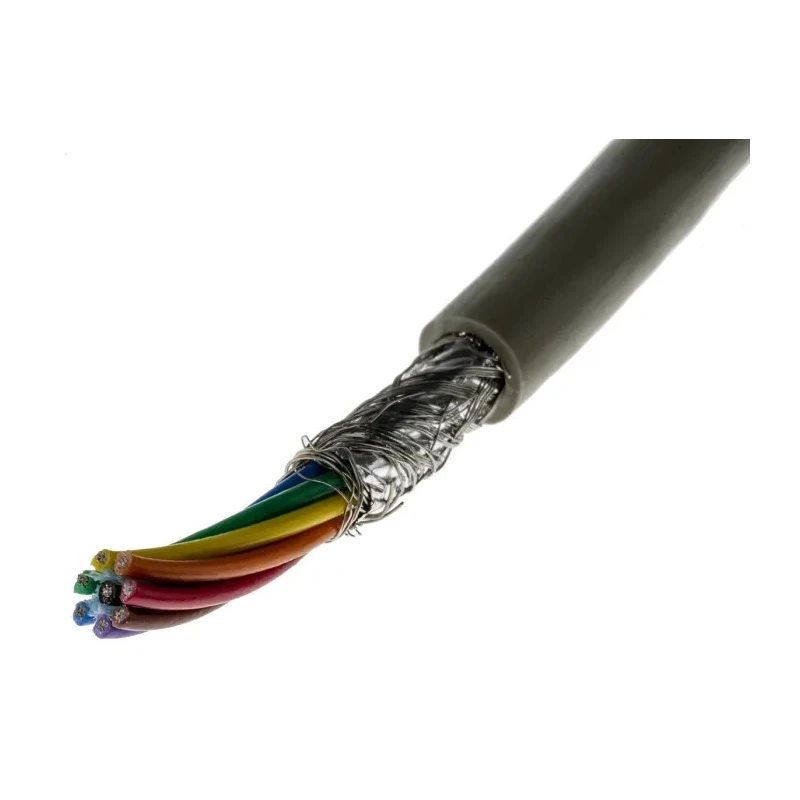

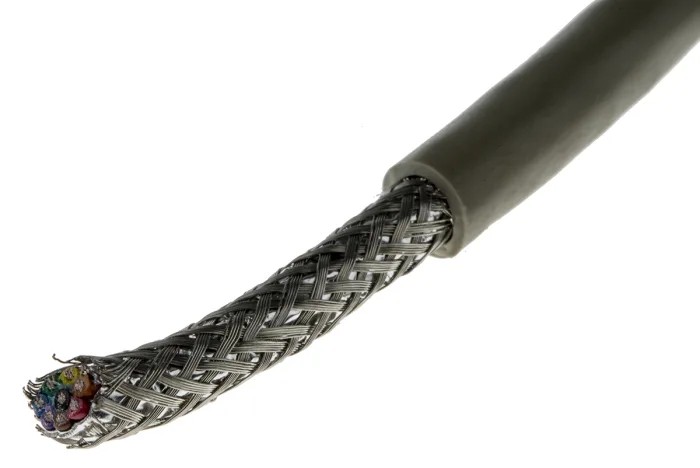

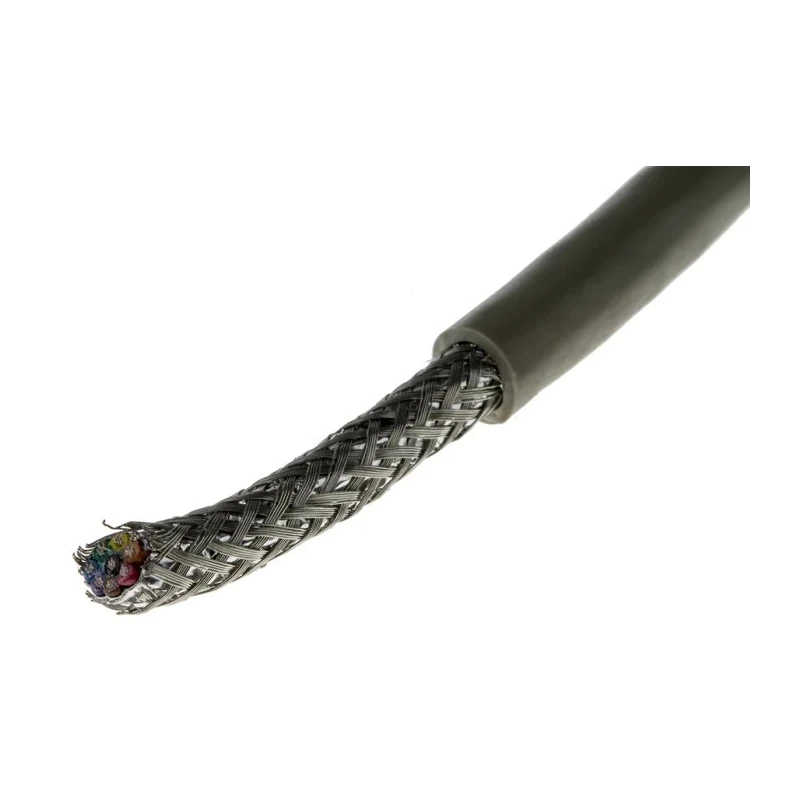

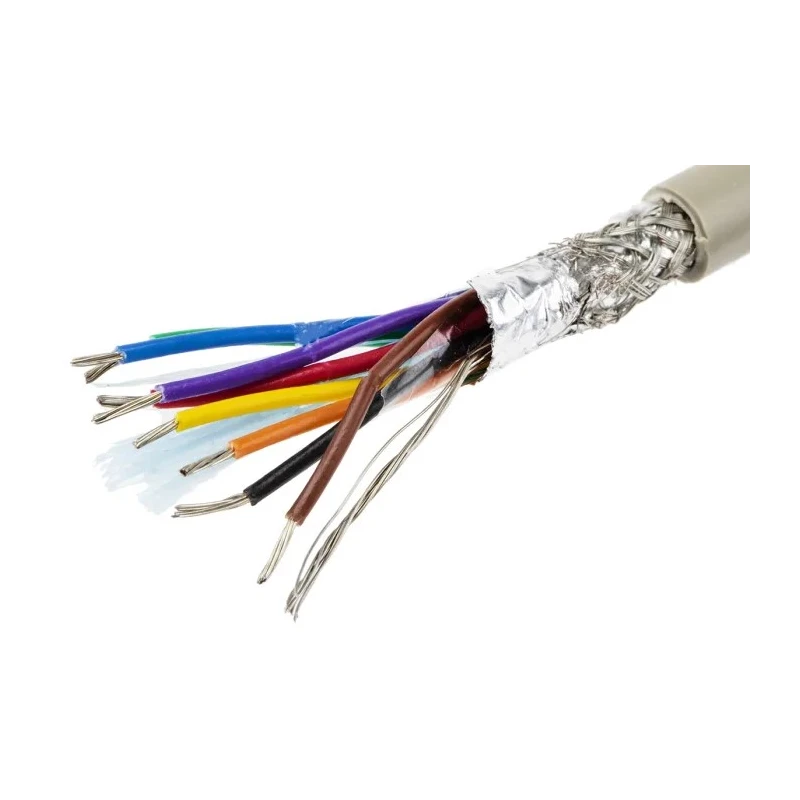

Alpha Wire Pro-Tekt Series Data Cable 8 Cores 1.23 mm² 50 m Grey Sheath Polyvinyl Chloride B957084 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 1.23mm² |
| Model | B957084 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 10.13mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4752Brand: Alpha WireManufacturers Part No.: B957084 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Conductors | 8, Black, Red, White, Green, Orange, Blue, Brown, YellowNominal Diameter: 0.399 inch (10.13 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 19/0.0117Insulation Thickness: 0.016 (0.41 mm)16 AWG (1.23 mm²)Jacket Colour: Grey |
Key Features
- Stranded tin copper conductors provide excellent flexibility and conductivity.
- Designed for operation between -30°C and +105°C.
- Flame retardant PVC jacket ensures enhanced safety in industrial environments.
- Outer diameter of 10.13 mm with a robust grey polyvinyl chloride jacket.
- Complies with CE, CSA Certified, and UL standards for reliable performance.
- Suitable for power equipment and data transmission in industrial automation and commercial electronics.
- Color-coded conductors facilitate easy identification and installation.
- Available as multiconductor or multipair cables within the Pro-Tekt range.
Product Description
Alpha Wire B957084 GE321 Pro-Tekt Series Data Cable is an 8-core multiconductor cable with a cross-sectional area of 1.23 mm² and a length of 50 meters. It features a durable grey polyvinyl chloride (PVC) sheath, which is flame retardant and resistant to UV exposure and oils, making it suitable for demanding industrial applications.
The cable contains stranded tin copper wire conductors (7 strands of 0.32 mm each) providing flexibility and electrical conductivity. Its construction includes an outer diameter of 10.13 mm with a jacket thickness of 0.81 mm and insulation thickness of 0.41 mm. The cable is rated for a nominal voltage of 300 V and operates reliably across a temperature range of -30°C to +105°C.
Pro-Tekt cables from Alpha Wire are designed for high performance in power equipment for industries including industrial automation, medical devices, aerospace, petrochemical, and commercial electronics. The cables can integrate data, power, coaxial, and AV cores into a single unit, simplifying wiring and enhancing system reliability.
The cable is approved under multiple standards including CE, CSA, and UL (UL CM, UL AWM 2464 VW-1, CSA CMG FT-4) ensuring compliance with international safety and performance requirements.
Stranded conductors provide increased flexibility. UV and oil-resistant PVC sheath and insulation enhance cable durability. Color coded tinned copper conductors facilitate easy identification. Flame retardant jacket protects against fire hazards.
Multi-standard approvals ensure suitability for global use. Suitable for integration in industrial automation and commercial electronics. Supports operation in harsh temperature conditions. Nominal 300 V voltage rating for power applications.
Compact cable design allows installation in confined spaces. Available as multiconductor and multipair configurations.
This Pro-Tekt Series Data Cable is an ideal choice for high-performance industrial and commercial automation environments requiring reliable, flexible, and flame-retardant cabling solutions. Browse the collection of Alpha Wire products at EnvMart for more industrial wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a nominal voltage of 300 V, making it suitable for various power applications.
It operates reliably within a temperature range of -30°C to +105°C, suitable for harsh industrial environments.
The cable features stranded tin copper conductors and a grey polyvinyl chloride (PVC) sheath, which is flame retardant and resistant to UV and oils.
The outer diameter of this unit is 10.13 mm, allowing for compact installation in confined spaces.
This cable has 8 cores, which are color-coded for easy identification and installation.
It complies with CE, CSA Certified, and UL standards, ensuring reliable performance and safety in various applications.
The conductors have a cross-sectional area of 1.23 mm², providing good conductivity and flexibility.
The jacket thickness is 0.81 mm, contributing to the cable's overall durability and protection.
It features stranded conductors made up of 7 strands of 0.32 mm each, enhancing flexibility and conductivity.
This model is suitable for power equipment and data transmission in industrial automation and commercial electronics.
The jacket is flame retardant, providing enhanced safety in industrial environments.
The cable is 50 meters long, making it suitable for various installation needs.
