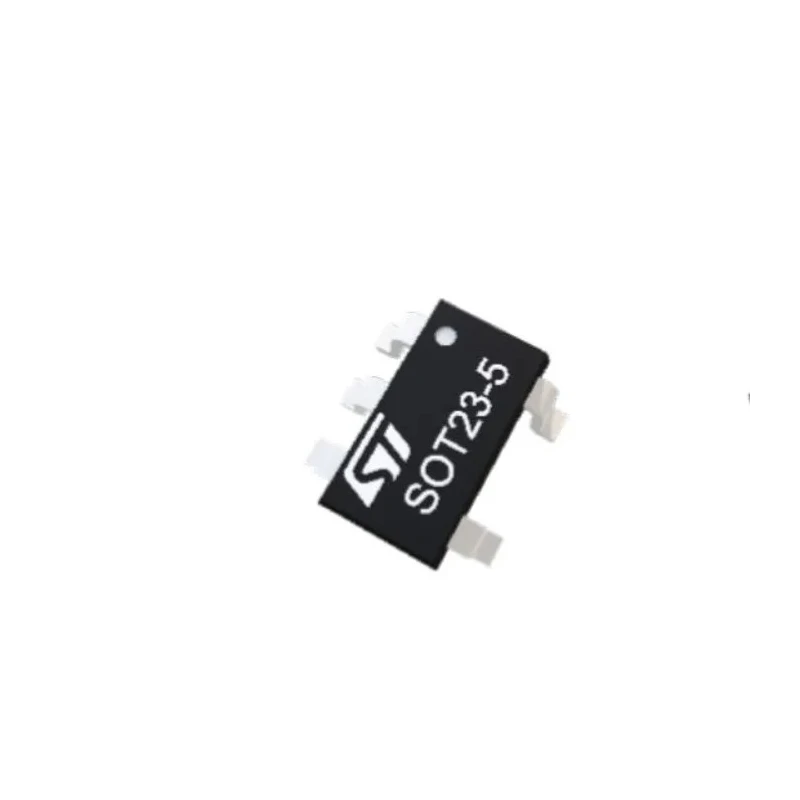

STMicroelectronics Operational Amplifier, 22 MHz Gain Bandwidth, 5-Pin SOT-23, 1 Channel, 1.8-5.5V Supply TSV7721ILT

STMicroelectronics TSV7721ILT is a single-channel operational amplifier housed in a compact 5-pin SOT-23 package, optimized for high-accuracy, high-bandwidth sensor interface applications. It features a gain bandwidth product of 22 MHz and operates over a wide supply voltage range from 1.8V to a maximum of 5.5V, ensuring flexibility for various low voltage systems.

This amplifier delivers ultra-low input bias currents of 75 pA, enabling precise measurements with minimal signal distortions, making it suitable for photodiode connections and other sensitive current measurements. The input offset voltage is tightly controlled at a maximum of 200 µV which contributes to high accuracy.

With a slew rate of 11 V/μs, the TSV7721ILT provides rapid output responses essential for dynamic applications. It can operate in harsh temperature environments from -40°C up to 125°C, meeting requirements for automotive and industrial grade electronics. The small package dimensions (3 mm length × 1.75 mm width × 1.45 mm height) make it ideal for surface mounting in compact printed circuit board designs.

This device is fully RoHS compliant and adheres to automotive qualification standards AEC-Q3 and AEC-Q100, ensuring reliability and quality for automotive sensor amplification systems.

High gain bandwidth product of 22 MHz enables fast signal processing. Operates with a wide supply voltage range from 1.8V to 5.5V. Single channel with 5-pin configuration in a small SOT-23 package. Ultra-low input bias current of 75 pA supports sensitive sensor applications.

Input offset voltage of maximum 200 μV ensures high precision measurements. Slew rate of 11 V/μs for rapid output signal response. Wide operating temperature range from -40°C to 125°C suitable for automotive environments.

Certified RoHS compliant and meets automotive standards AEC-Q3 and AEC-Q100. Ideal for low-side current sensing, photodiode interfaces, and high-accuracy sensor amplifier designs.

This operational amplifier series is widely used in industrial, automotive, laboratory, measurement instrumentation, and sensor interface applications. It offers engineers a compact, energy-efficient solution for high-speed and high-precision amplification with excellent noise and offset performance.
