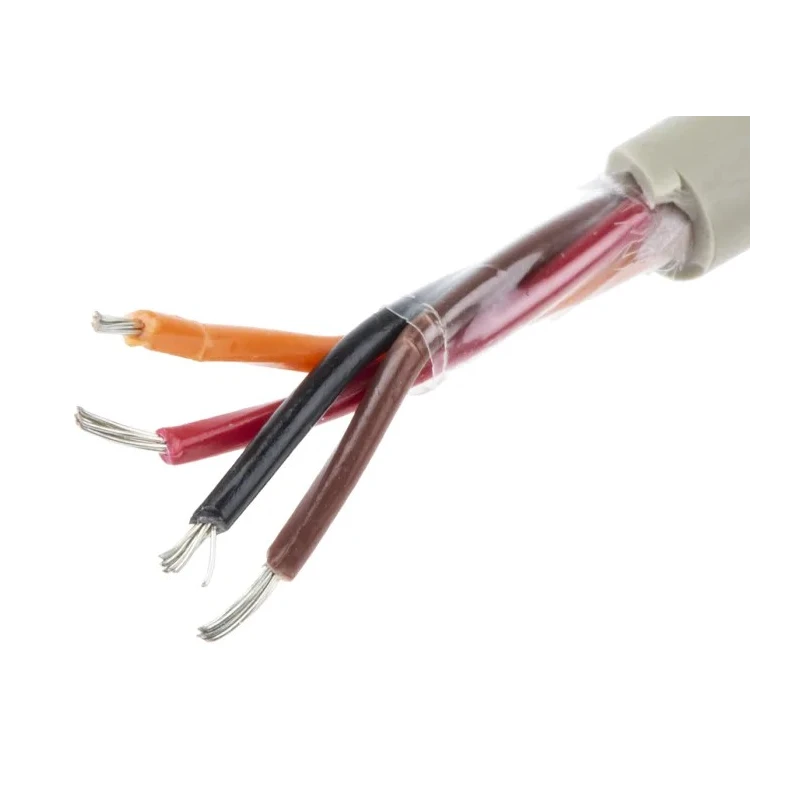

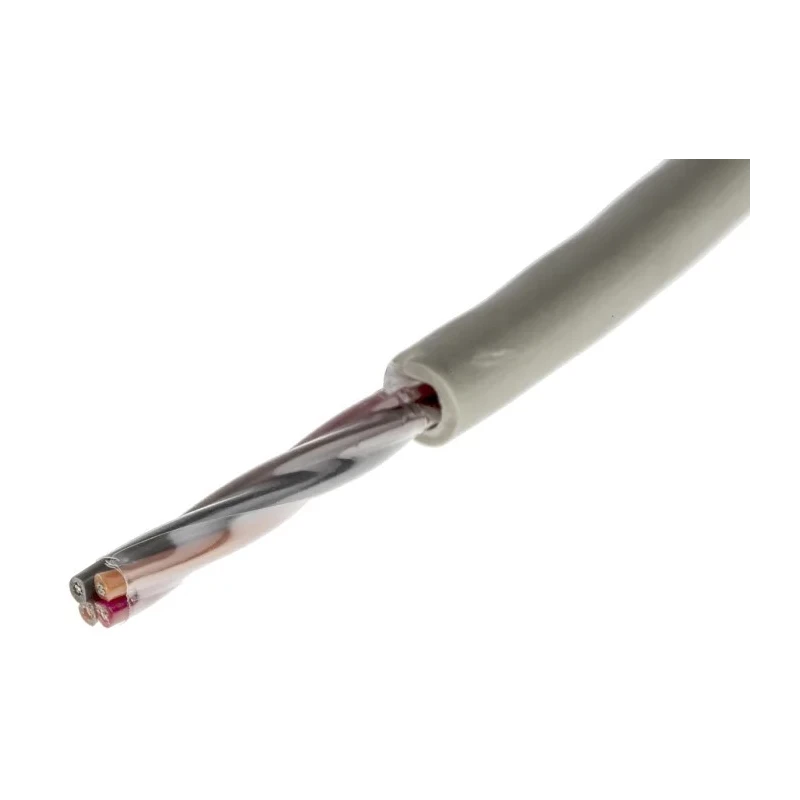

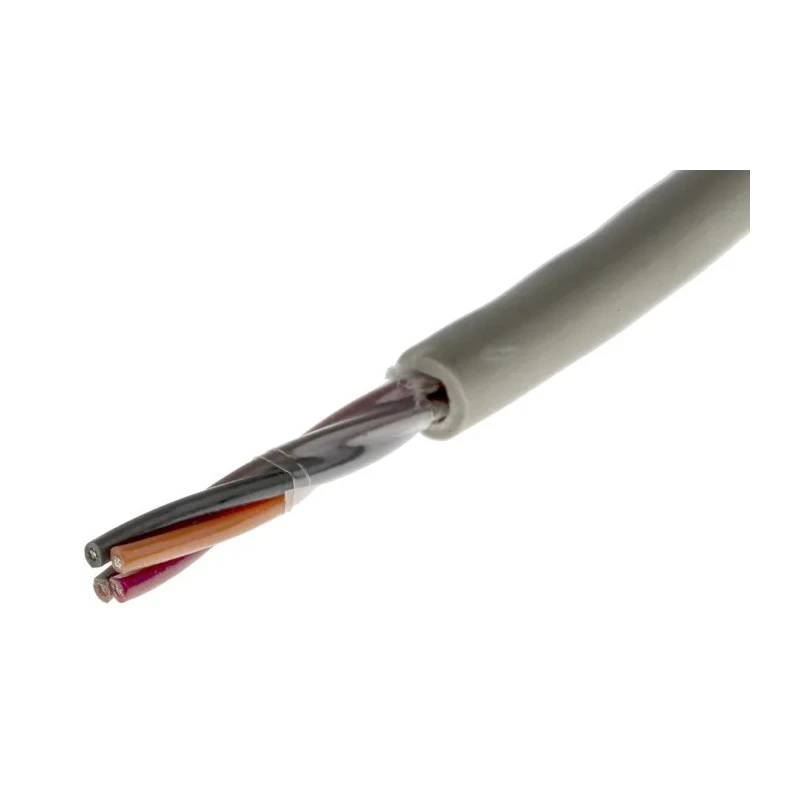

Alpha Wire Pro-Tekt Series Data Cable 77 Pairs 4 Cores 0.35 mm² 50 m 300V Grey PVC Sheath B954041 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | B954041 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 4.78mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4525Brand: Alpha WireManufacturers Part No.: B954041 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Number of Pairs | 77 |
| Conductors | 4, Black, Brown, Red, OrangeNominal Diameter: 0.188 inch (4.78 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/30Insulation Thickness: 0.010 (0.25 mm)22 AWG (0.35 mm²)Jacket Colour: Grey |
Key Features
- This cable is rated for 300 volts operation with a robust grey polyvinyl chloride sheath.
- It has a length of 50 meters and an overall outside diameter of 4.78 mm ensuring space-efficient routing.
- The conductor type is stranded tin copper wire composed of 7 strands each sized 0.25 mm for enhanced flexibility.
- Operating temperature ranges from -30°C to +105°C making it suitable for demanding industrial applications.
- The cable is flame retardant and complies with CE, CSA, and UL certifications, ensuring safety and performance standards.
- Colour-coded conductors include black, brown, red, and orange cores for easy identification during installation.
- Features include stranded conductors for flexibility, UV and oil resistance, and excellent abrasion resistance for durability.
- Designed for European market applications including industrial automation, aerospace, medical devices, petrochemical, and commercial electronics.
Product Description
Alpha Wire B954041 GE321 Pro-Tekt Series Data Cable is a high-performance industrial cable featuring 77 pairs and 4 multiconductor cores with a cross-sectional area of 0.35 mm² each. It operates at 300V and is sheathed in durable grey polyvinyl chloride that offers flame retardant properties, abrasion resistance, and robust protection against oils and UV exposure. The stranded tin copper conductors comprise seven 0.25 mm diameter strands, providing excellent flexibility and reliable electrical connectivity in diverse industrial settings.
This cable measures 50 meters in length with an outside nominal diameter of 4.78 mm, suitable for installations requiring space efficiency and flexibility. Its temperature operational range is from -30°C to +105°C, allowing use in varied environmental conditions.
The Pro-Tekt series cable is approved to stringent standards including CE, CSA, and UL, ensuring adherence to safety and quality requirements. Colour-coded cores in black, brown, red, and orange facilitate straightforward wiring and maintenance.
Unshielded, this cable is ideal for controlled environments demanding low electrical noise. The PVC sheath is flame retardant, providing increased safety across industrial electrical power and automation systems.
Typical applications include industrial automation, aerospace, medical devices, petrochemical plants, and commercial electronics where dependable data transmission is critical. The cable’s premium construction allows easy connection to switches, plugs, and sockets, enhancing system integration.
Stranded conductors increase cable flexibility. Operating temperature range from -30°C to +105°C supports diverse environments. UV and oil resistant PVC sheath and insulation enhance durability. Colour coded tinned copper conductors aid identification and installation.
Flame retardant construction for improved safety compliance. Suitable for European industrial applications and automation systems. Meets CE, CSA, and UL approvals for quality assurance. Explore the Alpha Wire category on EnvMart for a wide range of electrical cables built for industrial and commercial performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This cable is rated for operation at 300 volts.
The maximum operating temperature for this unit is 105°C.
It features 77 pairs and 4 multiconductor cores, each with a cross-sectional area of 0.35 mm².
The conductors are made of stranded tin copper wire, and the jacket is made of grey polyvinyl chloride (PVC).
The overall outside diameter of this cable is 4.78 mm.
The cable includes black, brown, red, and orange cores for easy identification during installation.
The PVC sheath offers UV resistance, making it suitable for outdoor applications, but it is primarily designed for industrial use.
It complies with CE, CSA, and UL certifications, ensuring adherence to safety and performance standards.
This model has a length of 50 meters.
It is designed for various applications including industrial automation, aerospace, medical devices, petrochemical, and commercial electronics.
The minimum operating temperature for this cable is -30°C.
Each conductor is composed of 7 strands, each sized 0.25 mm.
