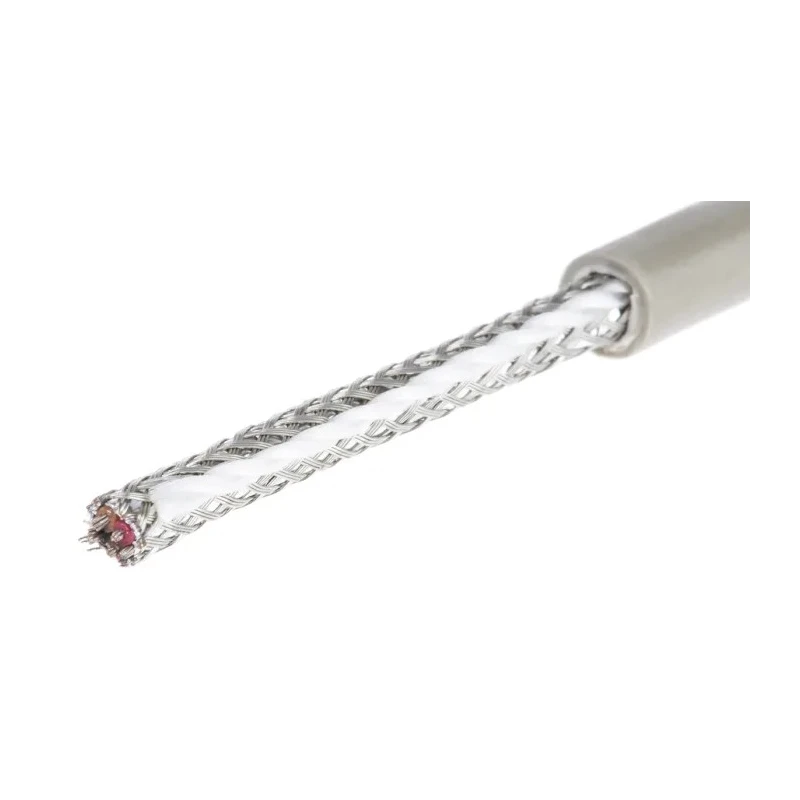

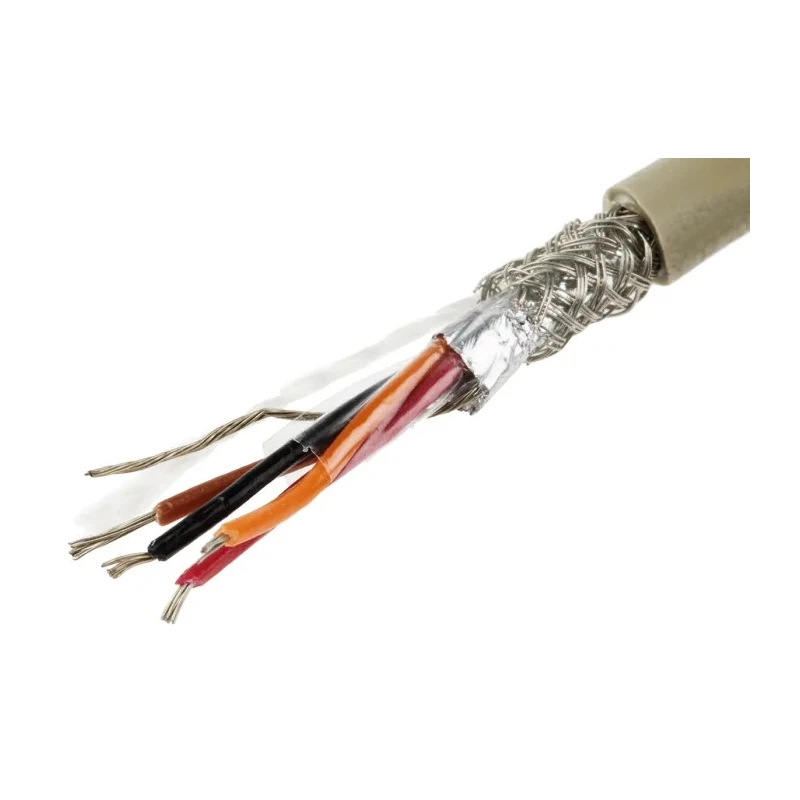

Alpha Wire Pro-Tekt Series Data Cable 77 Pairs 4 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B953044 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23mm² |
| Model | B953044 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5.13mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4698Brand: Alpha WireManufacturers Part No.: B953044 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Number of Pairs | 77 |
| Conductors | 4, Black, Brown, Red, OrangeNominal Diameter: 0.202 inch (5.13 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/32Insulation Thickness: 0.010 (0.25 mm)24 AWG (0.23 mm²)Jacket Colour: Grey |
| RS PRO Data Cable 0.25 mm² 100 m Grey Sheath Polyvinyl ChlorideBrand | RS PRO |
Key Features
- Stranded tin copper conductors provide flexibility and reliability.
- Operating temperature range from -30°C to 105°C for harsh environments.
- Complies with CE, CSA Certified, and UL standards for safety and quality.
- Flame retardant PVC sheath protects cable integrity and resists abrasion.
- Nominal outside diameter of 5.13 mm suitable for compact installations.
- Colour coded conductors (black, brown, red, orange) for easy identification.
- Suitable for industrial automation, aerospace, medical devices, and petrochemical applications.
Product Description
Alpha Wire B953044 GE321 Pro-Tekt Series Data Cable is a high-performance flexible multiconductor cable designed for demanding industrial and commercial applications. This cable contains 77 pairs and 4 cores with a cross-sectional area of 0.23 mm² and a total length of 50 meters. Its grey polyvinyl chloride outer sheath is flame retardant, UV and oil resistant, ensuring durability and safety in harsh environments.
The stranded tin copper conductors provide excellent flexibility and conductivity, making this cable ideal for use in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics where reliable data and power transmission are critical. The cable features a nominal outside diameter of 5.13 mm which allows it to fit into tight spaces easily.
The cable is certified to CE, CSA, and UL standards, ensuring compliance with rigorous international safety and performance benchmarks. It withstands operating temperatures from -30°C up to 105°C. Colour coded conductors facilitate fast and error-free installation, while the flame retardant PVC sheath protects it from mechanical wear and exposure to environmental factors.
Alpha Wire's Pro-Tekt European Cable System offers a choice of shielding options and uses premium quality materials to combine mechanical strength with electromagnetic interference resistance. This makes it a versatile solution for combining data, power, coaxial, and AV cores in one cable assembly.
Stranded tin copper conductors provide flexibility and longevity. Flame retardant polyvinyl chloride sheath safeguards against fire and mechanical damage. Operating temperature range of -30°C to +105°C suits diverse industrial environments.
Compliant with CE, CSA, and UL certifications for quality assurance. Color-coded cores simplify identification during installation. Nominal diameter of 5.13 mm for compact cable routing. Designed for use in industrial automation, medical, aerospace, petrochemical, and commercial electronics.
The Alpha Wire B953044 GE321 cable is ideal for applications requiring reliable data transmission combined with power distribution. It is engineered for robustness, ease of installation, and compliance with European and international standards. Browse more cables and wires in the Data Cable category of EnvMart for compatible accessories and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is 105°C.
The nominal outside diameter of this model is 5.13 mm.
This cable contains 77 pairs and 4 cores.
The conductors are made of stranded tin copper wire, providing flexibility and conductivity.
The jacket material is polyvinyl chloride (PVC), which is flame retardant and resistant to abrasion.
Yes, it complies with CE, CSA, and UL standards for safety and quality.
The voltage rating for this cable is 300V.
The length of this data cable is 50 meters.
The color-coded conductors are black, brown, red, and orange for easy identification.
This cable is suitable for industrial automation, aerospace, medical devices, and petrochemical applications.
The minimum operating temperature for this model is -30°C.
Each core contains 7 strands, with a size of 0.20 mm.
