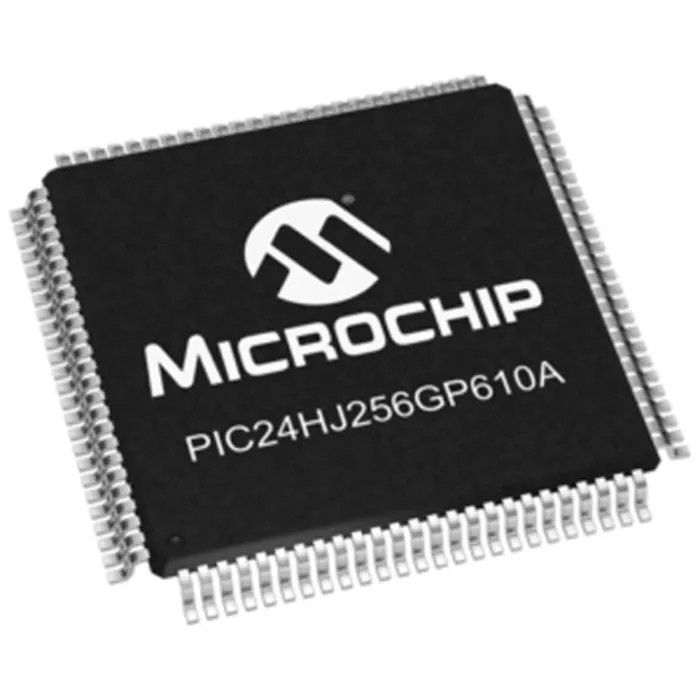

Microchip 16 bit PIC PIC24HJ256GP610A-I/PF Microcontroller 40 MIPS 256kB FLASH 100-Pin TQFP PIC24HJ256GP610A-I/PF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC24HJ256GP610A-I/PF |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC24HJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16.384kB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 739-3665Brand: MicrochipManufacturers Part No.: PIC24HJ256GP610A-I/PF |
| Pin Count | 100 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 256kB |
| Number of Timers | 9 |
| Instruction Set Architecture | RISC, DSP |
| ADCs | 32 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- 16 bit PIC architecture with RISC and DSP instruction set for efficient processing.
- 100-pin TQFP surface mount package suitable for compact designs.
- Supports wide operating voltage range of 3V to 3.6V ensuring stable operation.
- Includes 32 channels of 12-bit ADC peripherals for precise analog input handling.
- Operates reliably in temperature range from -40°C to 85°C for industrial environments.
- Offers 16.384kB of RAM for program execution and data buffering.
- Complies with automotive standard AEC-Q100 for enhanced quality assurance.
- Equipped with 9 timers enabling multiple timing and control functions.
Product Description
Microchip PIC24HJ256GP610A-I/PF is a 16 bit PIC microcontroller delivering up to 40 MIPS with a large 256kB FLASH memory in a compact 100-pin TQFP package. It is engineered for embedded control solutions requiring efficient processing power combined with versatile analog and timing peripherals. Operating at supply voltages from 3V to 3.6V, it reliably supports industrial applications running within extended temperature ranges between -40°C and +85°C.
The device leverages a 16-bit PIC core with RISC and DSP instruction sets, enhancing computational efficiency and application speed. It contains 32 channels of 12-bit analog-to-digital converters for accurate analog signal measurements, critical in sensor interfacing and control loops.
Featuring 16.384kB of RAM, the microcontroller accommodates complex algorithms and buffering needs. It includes nine configurable timers that facilitate various timing and event counting functions, enabling precise control in automation and industrial processes.
This microcontroller conforms to the automotive qualification standard AEC-Q100, ensuring robustness and reliability in demanding automotive and industrial environments. Its low-profile 12mm×12mm footprint with a 1.05mm height aids in compact PCB designs for space-constrained applications.
Ideal for use in embedded systems, industrial monitoring and control, automotive electronics, and related applications, the PIC24HJ256GP610A-I/PF offers a balance of performance, memory capacity, and peripheral integration.
16 bit PIC architecture with RISC and DSP instruction set for efficient processing. 100-pin TQFP surface mount package suitable for compact designs. Supports wide operating voltage range of 3V to 3.6V ensuring stable operation.
Includes 32 channels of 12-bit ADC peripherals for precise analog input handling. Operates reliably in temperature range from -40°C to 85°C for industrial environments. Offers 16.384kB of RAM for program execution and data buffering.
Complies with automotive standard AEC-Q100 for enhanced quality assurance. Equipped with 9 timers enabling multiple timing and control functions. Low profile with dimensions 12mm x 12mm and a height of 1.05mm. Explore EnvMart for more advanced Microcontrollers and embedded systems components from leading brands like Microchip.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This microcontroller operates at a maximum processing speed of 40 MIPS.
It features a program memory size of 256kB FLASH and 16.384kB of RAM.
The operating voltage range is from 3V to 3.6V.
It includes 32 channels of 12-bit ADC peripherals for accurate analog input handling.
It operates reliably in a temperature range from -40°C to 85°C.
This model comes in a 100-pin TQFP surface mount package.
It is equipped with 9 configurable timers for various timing and control functions.
It complies with the automotive standard AEC-Q100, ensuring quality assurance.
The dimensions are 12mm x 12mm with a height of 1.05mm.
It utilizes a RISC and DSP instruction set architecture for efficient processing.
The country of origin for this microcontroller is India.
It is suitable for embedded systems, industrial monitoring and control, and automotive electronics applications.
