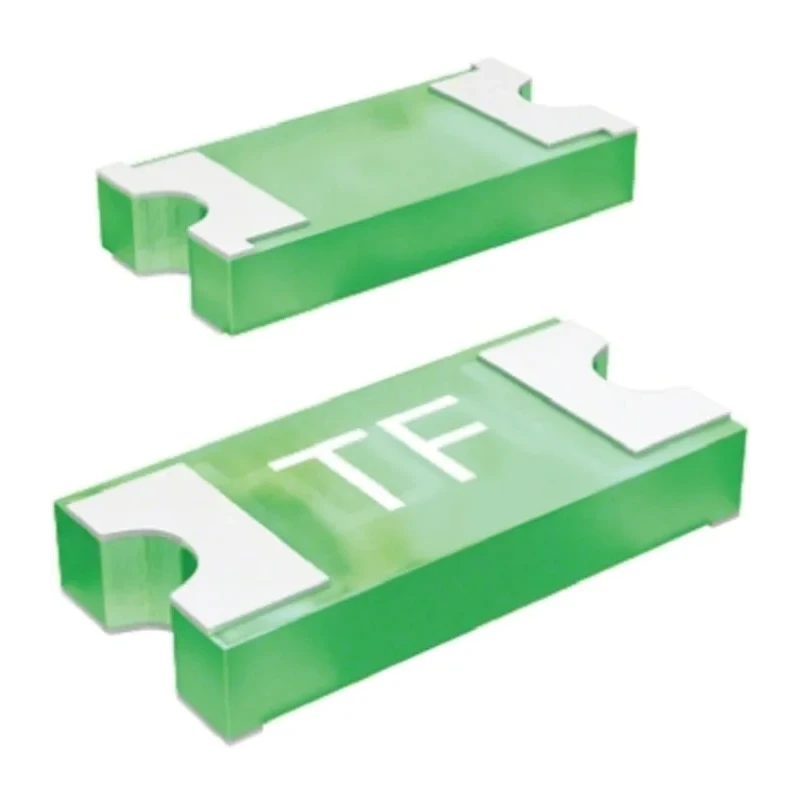

Littelfuse Non-Resettable Fuse 500mA, 63V Epoxy Substrate Time Delay 468 Series 0468.500NR

Littelfuse 0468.500NR is a high-quality Non-Resettable Fuse rated at 500mA and 63V, designed for secondary protection of circuits in space-constrained applications. This fuse belongs to the 468 series known for thin-film, time-lag characteristics providing reliable circuit safeguarding.

The fuse body is constructed from epoxy substrate, providing excellent electrical insulation and mechanical strength. With compact dimensions of 1.52mm width, 0.58mm height, and 3.18mm depth, it is suited for Surface Mount Technology (SMT) applications, allowing space-efficient circuit designs.

This 0468.500NR fuse features a time delay fuse characteristic enabling it to withstand temporary current surges without blowing, making it ideal for sensitive electronics including alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, and medical apparatus.

The fuse has a breaking capacity of 50A, ensuring it can safely interrupt fault currents without damage. The internal resistance is 0.27 ohms, and the fuse terminals are made of tin plated material to ensure good electrical connectivity and solderability during assembly.

The fuse operates reliably within a broad temperature range with a minimum operating temperature of 90°C and maximum of -55°C. It is packaged in reels to facilitate automated manufacturing and insertion.

Conforming to RoHS and CSA standards, this fuse meets global safety and environmental regulations, assuring reliability and compliance for industrial, electronics manufacturing, and commercial deployments.

Littelfuse 0468.500NR Non-Resettable Fuse is a trusted component for protecting valuable electronic assemblies in various industrial, commercial, and consumer electronics applications.

The fuse has a current rating of 500mA and a voltage rating of 63V. Time delay characteristic for secondary circuit protection. Epoxy substrate body material ensuring electrical insulation. Compact dimensions: 1.52mm width, 0.58mm height, 3.18mm depth.

Breaking capacity of 50A and resistance of 0.27Ω. Supplied in reel packaging suitable for automated insertion. Operating temperature range between 90°C minimum and -55°C maximum. Tin terminal material for reliable electrical contact.

Compliant to RoHS and CSA safety standards. Explore Littelfuse fuses and other circuit protection products on EnvMart to ensure safety and reliability in your electronic and electrical designs.
