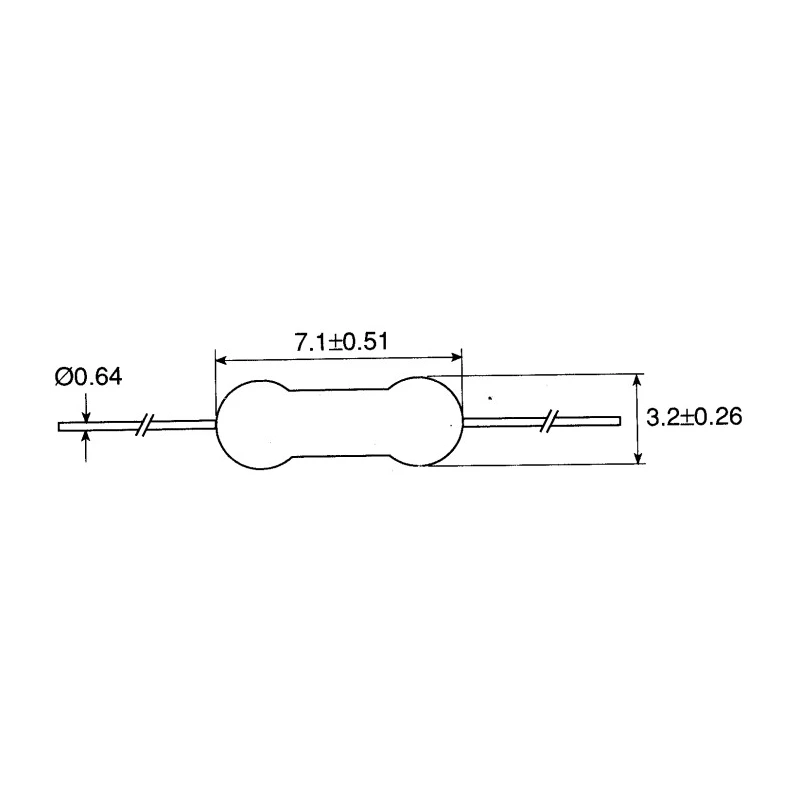

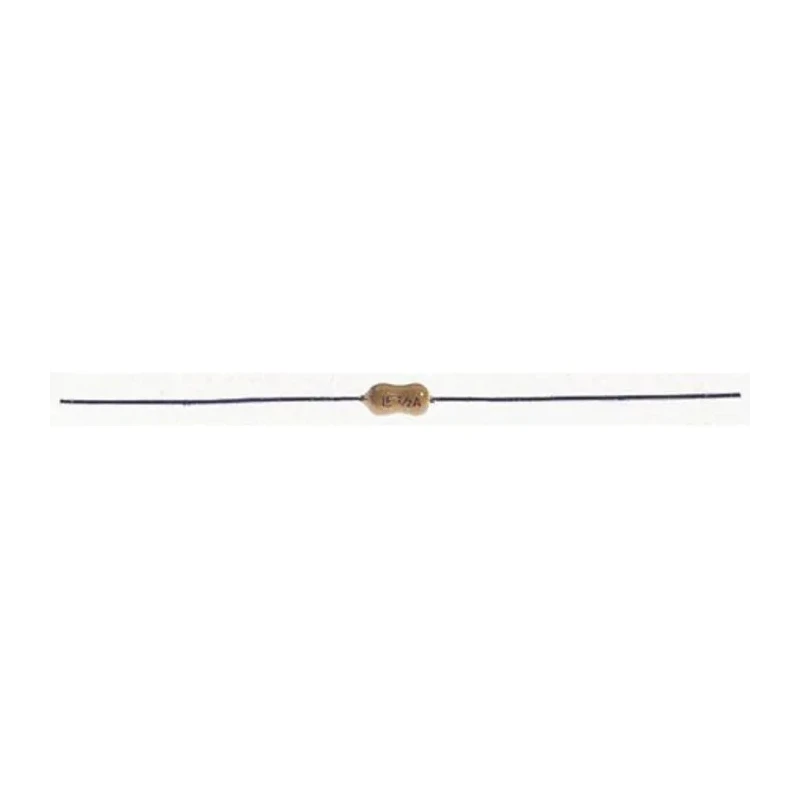

Littelfuse Non-Resettable Wire Ended Fuse Ceramic Body 375mA 125 V ac/dc Time Delay 473 Series 0473.375MAT1L
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Diameter | 3.18mm |
| Brand | Littelfuse |
| Body Material | Ceramic |
| Height | 7.11mm |
| Length | 27.78mm |
| Model | 0473.375MAT1L |
| Current Rating | 375mA |
| Series | 473 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 38.1mm |
| Breaking Capacity | 50A |
| Standards/Approvals | UL, CSA |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-3012PBrand: LittelfuseManufacturers Part No.: 0473.375MAT1L |
| Lead Diameter | 0.64mm |
| Fuse Characteristics | Time Delay |
Key Features
- Constructed with a durable ceramic body for enhanced reliability.
- Rated for a maximum operating temperature of 125°C.
- Provides a breaking capacity of 50A ensuring safety in circuit protection.
- Complies with UL and CSA safety standards for industrial use.
- Compact design with 27.78mm length and 3.18mm diameter.
- Designed for time-delay fuse applications requiring inrush current withstand.
- Lead diameter is 0.64mm with a lead length of 38.1mm for easy connection.
- Minimum operating temperature rating of -55°C for harsh environments.
Product Description
Littelfuse 0473.375MAT1L is a non-resettable wire ended fuse designed with a ceramic body for high durability and reliable circuit protection. It operates at 375mA current with voltage ratings of 125V ac and 125V dc, providing robust protection in electrical and industrial applications.
This fuse features a time-delay characteristic enabling it to tolerate transient inrush currents without nuisance blowing, making it ideal for use in sensitive electrical circuits and control panels.
The compact size of the fuse, with a length of 27.78mm and diameter of 3.18mm, allows for installation in space-constrained applications. The fuse has leads 38.1mm long and a lead diameter of 0.64mm, suitable for wire-ended installations.
Rated for a breaking capacity of 50A, it meets UL and CSA standards assuring safety and compliance with electrical codes. The fuse is capable of operating in extreme temperatures ranging from -55°C minimum to a maximum of 125°C, allowing use in demanding environments.
Typical industrial uses include circuit protection in electrical automation, control systems, and commercial electrical equipment where reliable fuse operation is critical. Constructed with a ceramic body for enhanced mechanical and thermal durability.
Time-delay fuse allowing enhanced inrush current withstand. Rated current: 375mA with operating voltage of 125V AC/DC. Breaking capacity of 50A for robust protection. Compact dimensions suitable for sub miniature fuse applications.
Meets UL and CSA safety approvals ensuring standard compliance. Wide operating temperature range from -55°C to 125°C.
This Littelfuse Non-Resettable Fuse is part of the 473 series, specifically designed for applications requiring time-lag protection in a compact form factor. It is widely used in electronic circuitry, industrial control panels, and automation systems.
Explore more quality fuses and circuit protection solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 375mA, making it suitable for applications requiring this specific current level.
It is rated for a maximum operating voltage of 125V ac and 125V dc, providing flexibility for various applications.
The breaking capacity of this fuse is 50A, ensuring robust protection in circuit applications.
The fuse has a length of 27.78mm and a diameter of 3.18mm, making it compact for installation in space-constrained environments.
It operates within a temperature range of -55°C to 125°C, allowing it to function in extreme environments.
This model features a ceramic body, which enhances its mechanical and thermal durability.
The fuse has a lead length of 38.1mm and a lead diameter of 0.64mm, suitable for wire-ended installations.
It complies with UL and CSA safety standards, ensuring it meets industrial safety requirements.
This fuse has a time-delay characteristic, allowing it to withstand transient inrush currents without nuisance blowing.
It is commonly used for circuit protection in electrical automation, control systems, and commercial electrical equipment.
This model is part of the 473 series, specifically designed for applications requiring time-lag protection.
The Littelfuse 0473.375MAT1L is manufactured in India, reflecting its origin for quality assurance.
