Littelfuse Non-Resettable Wire Ended Fuse Axial 5A 125V ac 125V dc Ceramic Body 473 Series 0473005.MRT1L

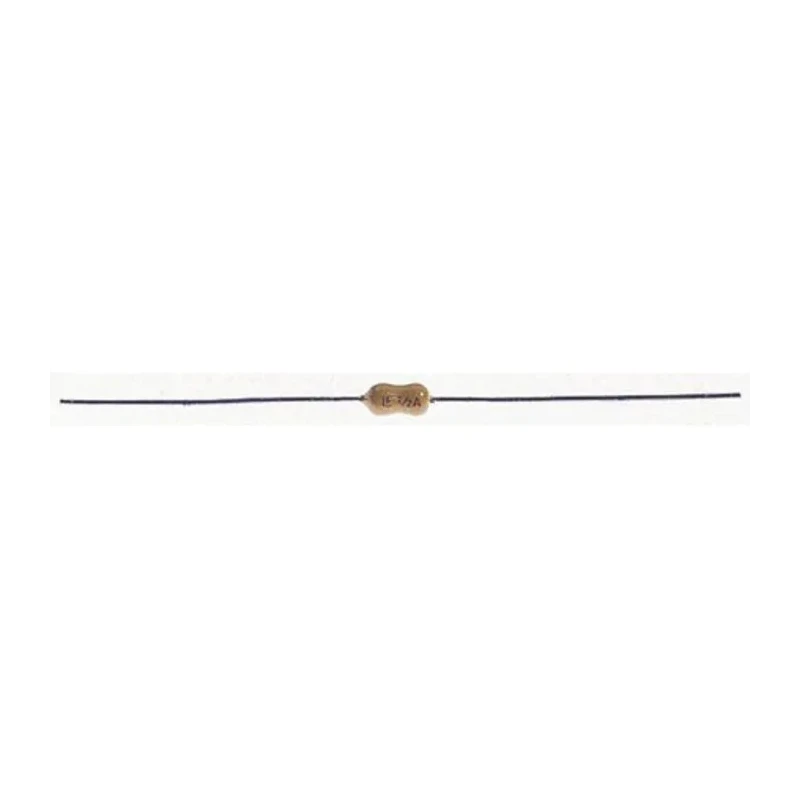

Littelfuse 0473005.MRT1L Non-Resettable Wire Ended Fuse Axial 5A 125V ac, 125V dc is a ceramic-bodied fuse designed with time-delay characteristics. This fuse type is ideal for preventing damage to electrical circuits by interrupting current flow during overload or fault conditions, especially where high inrush currents must be tolerated.

Featuring an axial lead orientation, this fuse facilitates straightforward installation in various industrial and electrical applications. Its 5 ampere current rating and 125 volts rating for both AC and DC make it suitable for diverse electrical protection requirements.

The fuse's compact dimensions of 27.78mm length and 7.11mm width, with a lead length of 52.4mm and a 0.64mm lead diameter, enable integration into space-constrained designs while maintaining high breaking capacity of 50 amperes. The ceramic body provides mechanical strength and heat resistance, ensuring reliable performance in demanding environments.

Operating temperatures span from a low of -55°C to a maximum of 125°C, making this fuse suitable for environments with temperature extremes. It complies with recognized standards including UR, PEC, and CSA, assuring customers of its safety and quality credentials.

The 473 Series by Littelfuse is well-regarded for its time-delay fuse capabilities, offering enhanced protection against transient inrush currents without nuisance blowing. This product serves well in industrial, electrical automation, HVAC, manufacturing, and other commercial applications requiring precise circuit protection.

This fuse features a 5 ampere current rating suitable for various electrical protection needs. Axial lead orientation provides ease of installation in circuit boards. Voltage rating supports both 125V AC and 125V DC applications.

Ceramic body construction ensures durability and reliable operation under harsh conditions. The fuse offers time-delay characteristics to withstand initial inrush currents. Compact dimensions with a length of 27.78mm and lead length of 52.4mm enable space-saving designs.

Breaking capacity of 50A for interrupting overcurrent safely. Operating temperature ranges from -55°C minimum to 125°C maximum for wide environmental tolerance. Complies with industry standards UR, PEC, and CSA for quality assurance.

Part of Littelfuse 473 Series known for enhanced inrush withstand in a sub-miniature package. Explore a wide range of Littelfuse circuit protection solutions and related electrical components on EnvMart for reliable industrial and commercial use.
