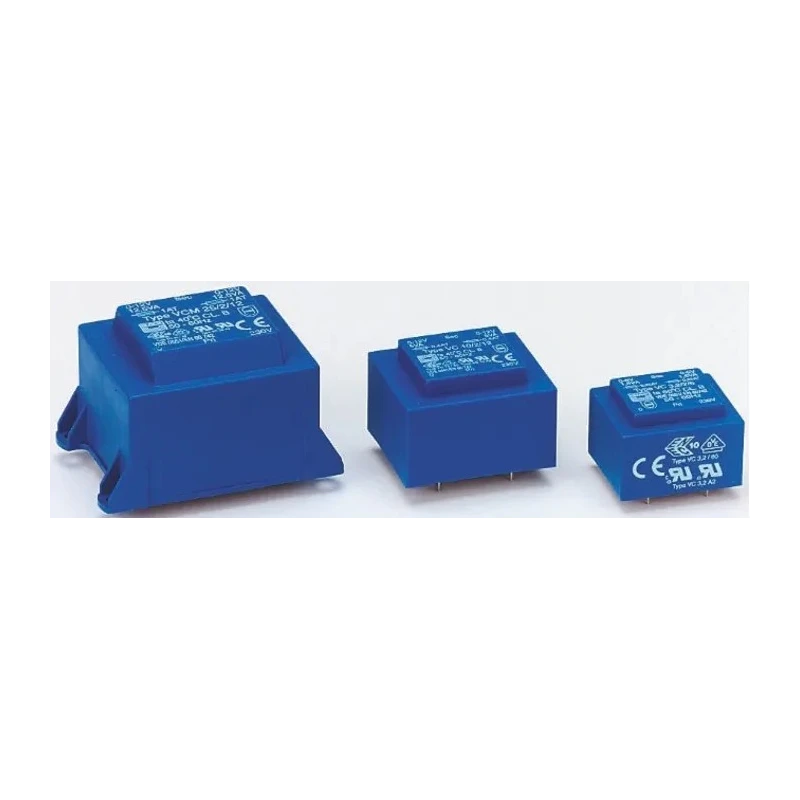

Block PCB Transformer 230 V ac Primary, 6 V ac Secondary, 3.2 VA, 1 Output Pin, C-UL-US, ENEC 10 VC 3,2/1/6

Block VC 3,2/1/6 PCB Transformer is a robust electronic component designed for efficient power transformation on printed circuit boards. It features a 230 V ac primary input voltage with a single 6 V ac output, rated at 3.2 VA power. The transformer is vacuum resin molded to UL94-V0 standards for enhanced fire resistance and reliability in various industrial and commercial electronic applications.

This PCB mount transformer includes a pin mounting type designed for secure installation on circuit boards, ensuring stable operation and reduced mechanical stress. Its low inter-winding capacitance and low radiated noise attributes provide minimal interference, suitable for sensitive electronic environments.

The transformer complies with stringent safety standards including C-UL-US and ENEC 10 (VDE), guaranteeing safe and certified use in global markets. It offers an isolation voltage of 5000 V to protect circuits from voltage spikes and electrical faults, enhancing system durability and operator safety.

With operating frequencies ranging from 50 to 60 Hz and a thermal limit of 60°C maximum operating temperature, this transformer adapts well to diverse electronic requirements. The compact form factor with dimensions 41 mm by 35 mm by 28.1 mm and a lightweight 150-gram construction facilitate integration without compromising design constraints.

Manufactured in Germany, this product reflects high-quality engineering and consistency. Ideal for industrial, laboratory, commercial electronic power supply systems and specialized PCB applications, it supports reliable voltage transformation whereas maintaining system integrity.

Designed for PCB mounting with pin mount type for easy installation. Constructed with vacuum resin molding to comply with UL94-V0 flammability standards. Provides low inter-winding capacitance and low radiated noise for efficient performance.

Certified with C-UL-US and ENEC 10 (VDE) standards ensuring high safety and reliability. Features isolation voltage of 5000 V for electrical safety. Operates at minimum frequency of 50 Hz and maximum frequency of 60 Hz. Rated for a maximum operating temperature of 60°C.

Compact dimensions and lightweight ensure easy PCB integration. Manufactured in Germany with high-quality standards. Explore more PCB Transformers at EnvMart to find components matching your specific power supply needs and design requirements.
