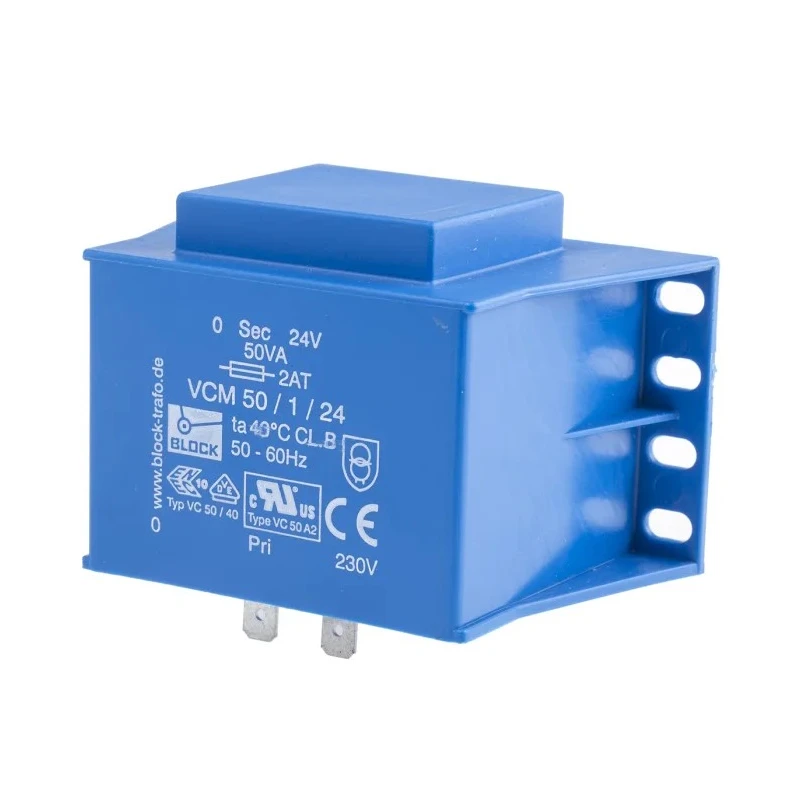

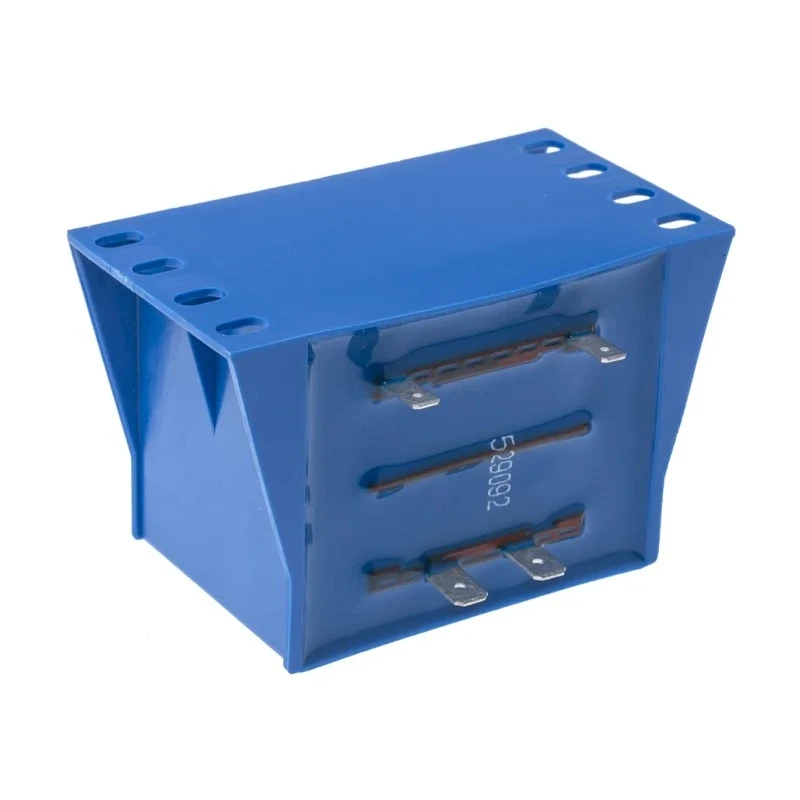

Block 24 V ac 1 Output Through Hole PCB Transformer, C-UL-US, ENEC 10 (VDE) 50 VA VCM 50/1/24

Free Delivery in India | Lowest Global Shipping Charges

Block 24 V ac 1 Output Through Hole PCB Transformer, C-UL-US, ENEC 10 (VDE) 50 VA VCM 50/1/24

Name: Block 24 V ac 1 Output Through Hole PCB Transformer, C-UL-US, ENEC 10 (VDE) 50 VA VCM 50/1/24
Brand: Block
SKU: 360628
Price: 76.84 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	87%
Length	94mm
Model	VCM 50/1/24
Depth	58.5mm
Gross Weight	990g
Width	61mm
Mount Type	Through Hole
Series	VCM 50/1/24
Maximum Operating Temperature	40°C
Number of outputs	1
Standards/Approvals	C-UL-US, ENEC 10 (VDE)
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	732-0512Brand: BlockManufacturers Part No.: VCM 50/1/24
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

This transformer has a primary voltage of 230 V ac.
It features a single output with 24 V ac secondary voltage.
Constructed with vacuum resin moulding to UL94-V0 rating for electrical safety.
Low inter-winding capacitance and low radiated noise characteristics ensure efficient performance.
Isolation voltage rating of 5000 V for enhanced protection.
Meets international standards and approvals including C-UL-US and ENEC 10 (VDE).
Operating frequency ranges from 50 Hz to 60 Hz with an efficiency of 87%.
Maximum operating temperature is 40°C, ensuring reliable performance under typical conditions.

Product Description

Block VCM 50/1/24 PCB Transformer offers a robust solution for power supply applications requiring 24 V ac output with a single output winding. This transformer is specifically designed for through hole PCB mounting, facilitating easy and secure installation in electronic assemblies.

Operating on a primary voltage of 230 V ac, it provides reliable performance with its 50 VA power rating. Its vacuum resin moulded construction to UL94-V0 rating ensures high electrical insulation and flame retardancy, critical for safety in industrial and commercial applications.

Notable for its low inter-winding capacitance and reduced radiated noise, the transformer minimizes interference in sensitive electronic circuits. The isolation voltage of 5000 V offers additional safety, making it suitable for demanding environments.

Its physical dimensions of 94 mm length, 61 mm width, and 58.5 mm depth, combined with a weight of 990 grams, ensure it is compact yet sturdy. The transformer is designed to operate efficiently across a frequency range of 50 to 60 Hz and performs with 87% efficiency, maintaining thermal stability up to 40°C.

Single output winding with 24 V ac secondary voltage ensures precise voltage supply. Primary voltage: 230 V ac for standardized power input compatibility. Through hole mount type guarantees solid mechanical fixation on PCBs.

Conforms to C-UL-US and ENEC 10 (VDE) certifications for quality and safety. Vacuum resin moulded construction adds durability and flame retardance. Low noise and low inter-winding capacitance optimize electrical performance.

This PCB transformer is highly suited for industrial, laboratory, manufacturing, and electronic power supply applications requiring compact and reliable voltage transformation. Its German origin underlines superior manufacturing standards and product excellence.
