Block PCB Transformer 230 V ac Primary, 12 V ac Single Output, 10 VA, Through Hole Mount VC 10/1/12

Name: Block PCB Transformer 230 V ac Primary, 12 V ac Single Output, 10 VA, Through Hole Mount VC 10/1/12
Brand: Block
SKU: 360623
Price: 18.35 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	74%
Length	51mm
Model	VC 10/1/12
Depth	34.6mm
Gross Weight	280g
Width	43mm
Mount Type	Through Hole
Maximum Operating Temperature	40°C
Number of outputs	1
Winding Type	Single Primary, Single Secondary
Standards/Approvals	VDE, UL
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	732-0430Brand: BlockManufacturers Part No.: VC 10/1/12
Number of Pins	6
Primary Voltage	230 V ac
Secondary Voltage	12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Myrra 12 V ac 2 Output Through Hole PCB Transformer 10 VABrand	Myrra

Key Features

Single primary and single secondary winding for clear signal isolation.
Efficiency rated at 74 percent ensuring optimized power usage.
Mount type is through hole with six pins for secure installation.
Certified and adheres to VDE and UL standards for safety and performance.
Maximum operating temperature is 40 degrees Celsius, suitable for standard industrial environments.
Operates efficiently within 50 to 60 Hz frequency range.
Vacuum resin moulded with UL94-V0 rating for enhanced durability and fire resistance.
Manufactured in Germany ensuring high-quality construction and reliability.

Product Description

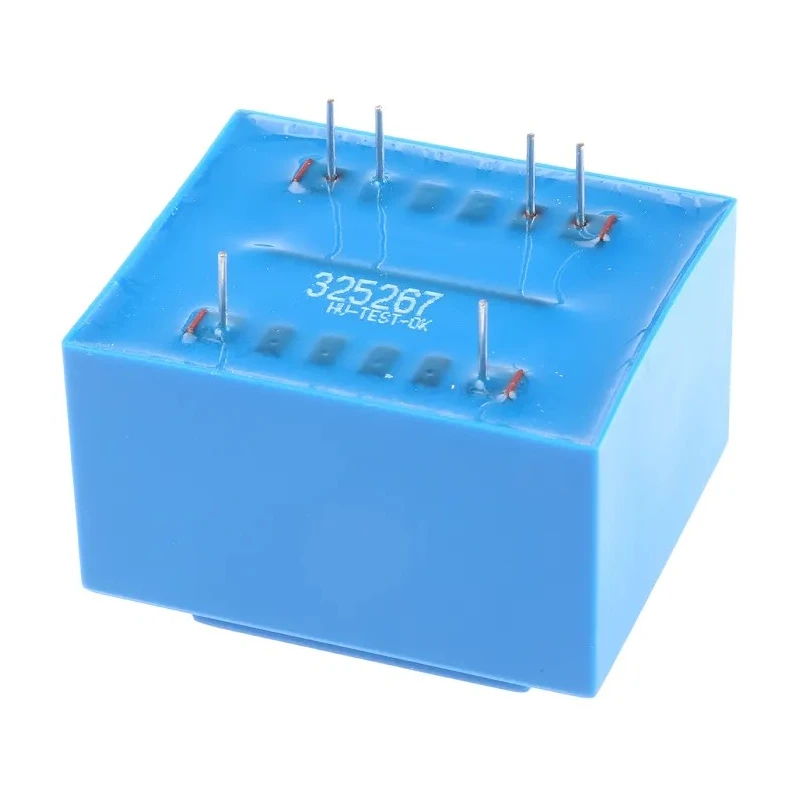

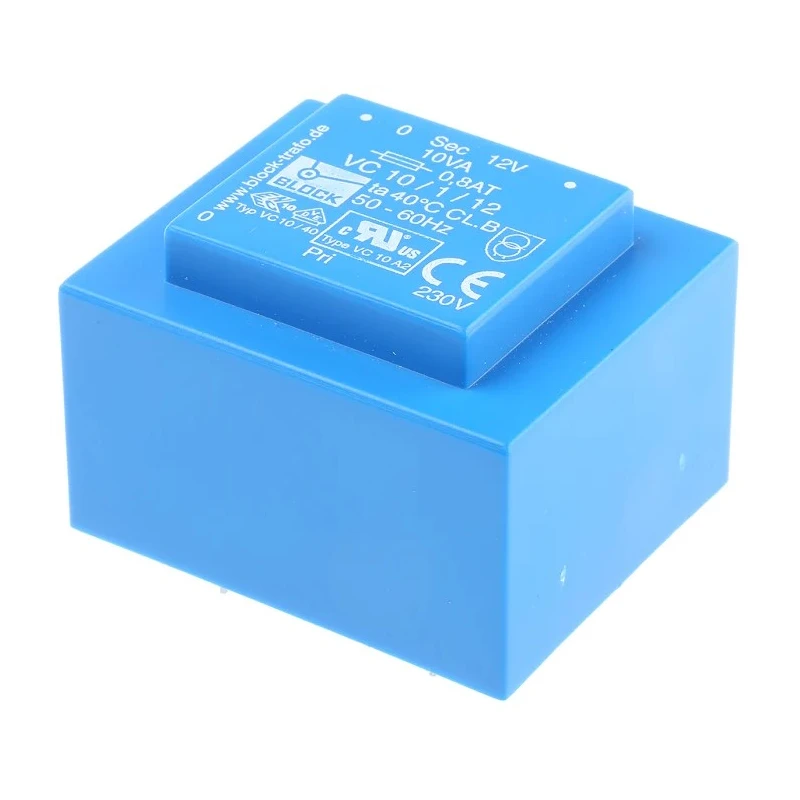

Block VC 10/1/12 PCB Transformer is engineered for industrial-grade electronic applications, providing a reliable 230 V ac primary voltage with a single output of 12 V ac and 10 VA power rating. It features a through-hole mount type suited for PCB integration in power supply circuits.

This transformer incorporates a single primary and single secondary winding, providing electrical isolation with low inter-winding capacitance and reduced radiated noise. Its vacuum resin moulded construction meets UL94-V0 flammability standards, enhancing safety and durability.

Measuring 51 mm length, 43 mm width, and 34.6 mm depth, the transformer is compact yet robust, weighing 280 g. It includes six pins for secure through-hole mounting, with extra fixing points on higher power variants for firm board attachment.

The unit operates efficiently at 74 percent efficiency and is fully electrical and flash tested to ensure quality. It supports frequencies between 50 Hz and 60 Hz and withstands maximum operating temperatures of up to 40 degrees Celsius, making it suitable for various industrial, HVAC, and manufacturing applications.

Single primary and secondary winding for effective signal conversion and isolation. Vacuum resin moulded to UL94-V0 rating for excellent fire resistance. Compact size facilitating integration in limited PCB spaces. Complies with VDE and UL international safety standards for reliable operation.

Designed and manufactured in Germany assuring high build quality. Low radiated noise output suitable for sensitive electronics. Tested for electrical integrity and flash safety. Ideal for electronic component, power supply, and transformer applications.

Block VC 10/1/12 is a trusted choice for professionals in electronics and power supply design needing a compact, efficient PCB Transformer. Browse the Electronics & Electricals category on EnvMart for more advanced transformers and power components.
