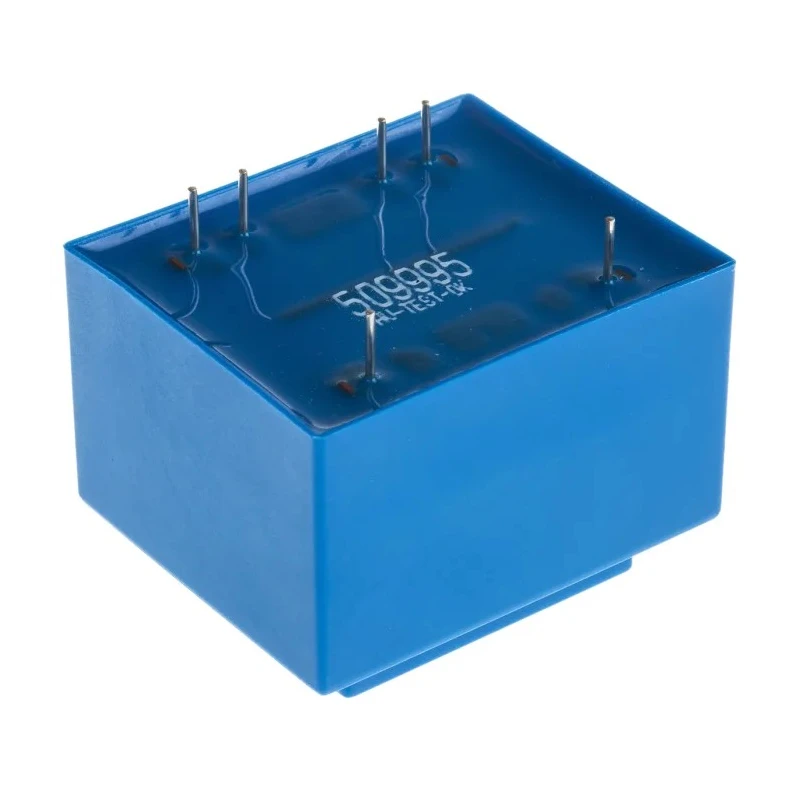

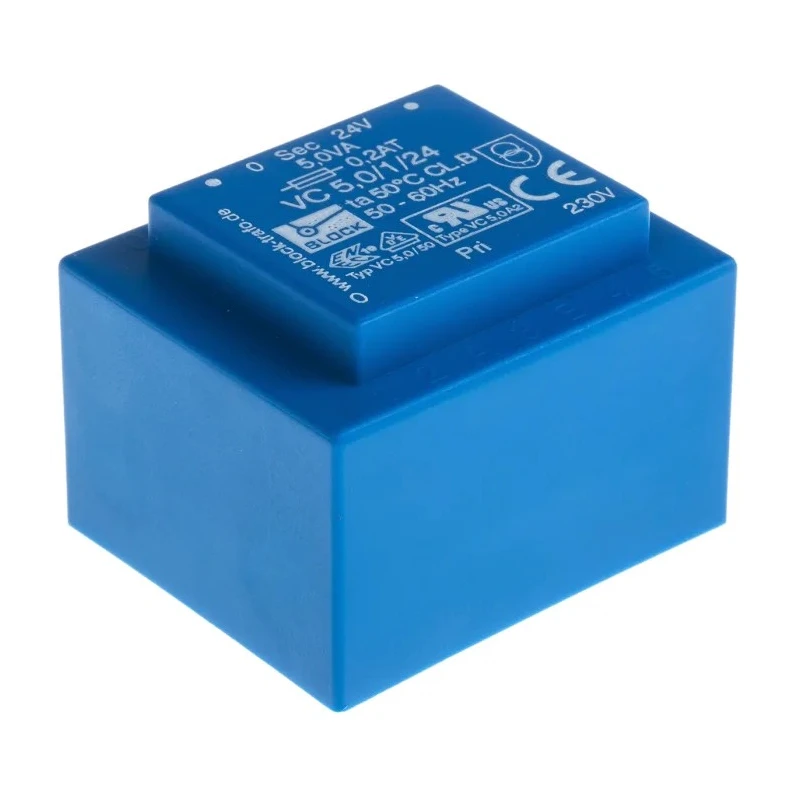

Block PCB Transformer 230 V ac Primary, 24 V ac Secondary, 1 Output Pin, 5 VA, Pin Mount VC 5,0/1/24

Block VC 5,0/1/24 is a high-quality PCB transformer designed for reliable power supply in electronic and industrial applications. It features a 230 V ac primary winding and a single 24 V ac output pin with a power rating of 5 VA, suitable for various power supply circuits on printed circuit boards.

This transformer is pin mounted with dimensions 44 mm length, 37 mm width, and 33 mm depth, making it compact for PCB integration. It offers an isolation voltage of 5000 V, providing excellent electrical safety. The device is vacuum resin moulded with a UL94-V0 flame retardant rating, ensuring safe operation under demanding electrical conditions.

With an efficiency of 68%, it operates effectively over a frequency range of 50 Hz minimum to 60 Hz maximum. The maximum operating temperature is 50°C, enabling it to withstand standard operating environments. Low inter-winding capacitance and low radiated noise minimize electrical interference, making it ideal for sensitive electronic assemblies.

The VC 5,0/1/24 series transformers are 100% electrically and flash tested to guarantee performance. They comply with international standards including C-UL-US and ENEC 10 (VDE), ensuring certification for safety and quality. Manufactured in Germany, this transformer is suited for industrial, electronic, and power supply applications requiring reliable PCB mounting transformers.

Designed for PCB mounting with pin mounting type. Provides 24 V ac secondary voltage at 5 VA power rating. High isolation voltage of 5000 V for robust safety. Vacuum resin moulded with UL94-V0 flame retardant rating. Low inter-winding capacitance and minimal radiated noise.

Compliant with C-UL-US, ENEC 10 (VDE) international standards. Tested for electrical and flash safety at 100% quality assurance. Operates within 50 Hz to 60 Hz frequency range at 230 V ac primary voltage. Compact dimensions: 44 mm x 37 mm x 33 mm for easy PCB integration.

Manufactured in Germany ensuring premium quality and reliability.

This Block PCB Transformer is ideal for electronics manufacturers and industrial systems requiring reliable power isolation and voltage transformation on printed circuit boards. Explore more Block transformers and power supply solutions on EnvMart for your project needs.
