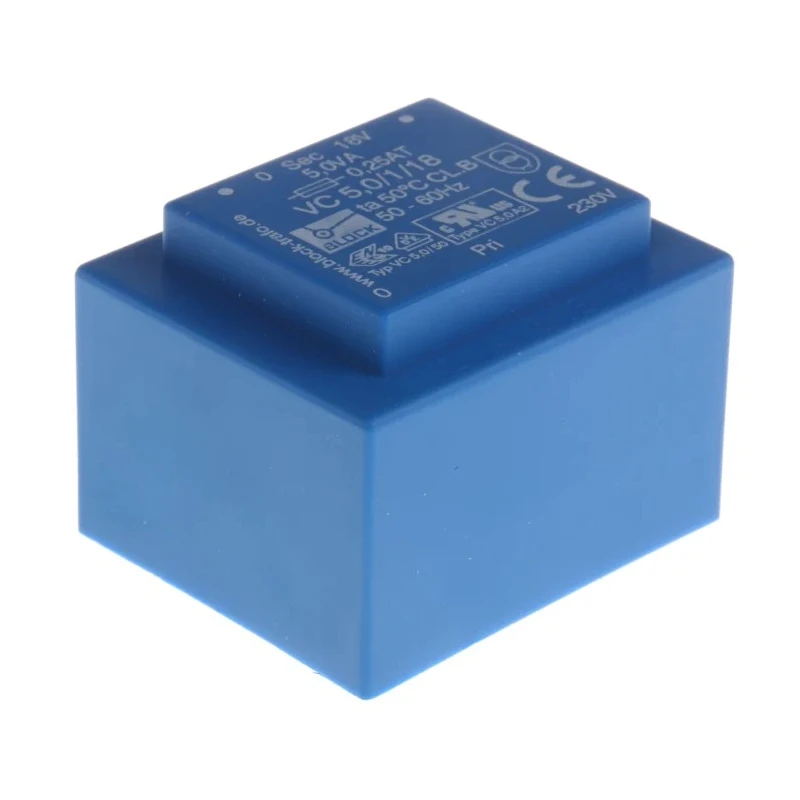

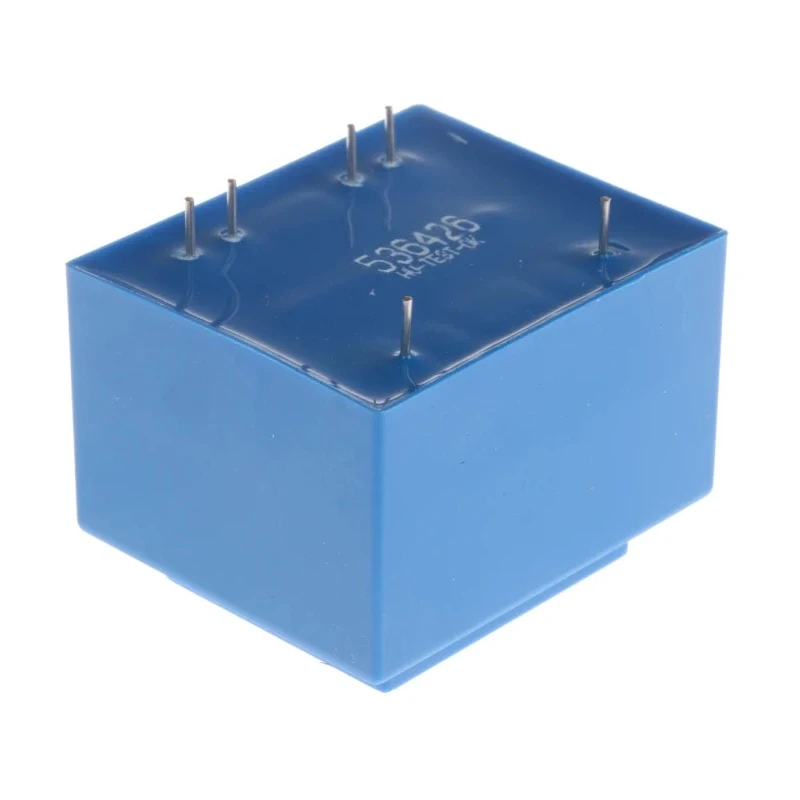

Block PCB Transformer 230 V ac Primary Voltage 18 V ac Secondary Voltage 5 VA Power 1 Output VC 5,0/1/18

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 230 V ac Primary Voltage 18 V ac Secondary Voltage 5 VA Power 1 Output VC 5,0/1/18

Name: Block PCB Transformer 230 V ac Primary Voltage 18 V ac Secondary Voltage 5 VA Power 1 Output VC 5,0/1/18
Brand: Block
SKU: 360620
Price: 17.26 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	68%
Length	44mm
Model	VC 5,0/1/18
Depth	33mm
Gross Weight	190g
Width	37mm
Mount Type	Pin
Series	VC 5.0/1/18
Maximum Operating Temperature	50°C
Number of outputs	1
Pay online using	Or choose to pay later via bank transfer
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	18 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Designed for PCB mounting with secure pin mount type.
Features vacuum resin moulding with UL94-V0 rating for safety.
Low inter-winding capacitance ensures minimal electrical noise.
Operates efficiently at 68% efficiency and isolation voltage of 5000 V.
Meets multiple standards including VDE 0570 parts 2-1 and 2-6 and IEC 61558-2-1.
Maximum operating temperature of 50°C and frequency range from 50 to 60 Hz.
Manufactured in Germany with high-quality construction and reliability.

Product Description

Block VC 5,0/1/18 PCB Transformer is engineered for high reliability in electronic power supply applications. It features a 230 V ac primary voltage and provides an 18 V ac secondary voltage output rated at 5 VA power. This transformer is designed specifically for PCB mounting with a secure pin mount type to ensure robust electrical connections.

The transformer is vacuum resin moulded to a UL94-V0 flame retardant standard, enhancing safety and durability in demanding applications. Its low inter-winding capacitance reduces electrical noise and improves overall signal integrity, critical for precise electronic operations. The unit operates with an efficiency of 68% and an isolation voltage rating of 5000 V, providing reliable electrical separation and user safety.

It complies with international and regional standards, including VDE 0570 parts 2-1 and 2-6, ENEC 10 (VDE), C-UL-US, and IEC 61558-2-1, ensuring suitability for industrial and commercial electronic equipment. The maximum operating temperature is 50°C, and it supports operating frequencies from 50 Hz to 60 Hz, making it versatile for different regional power grids.

Its compact form factor - 44 mm in length, 37 mm width, and 33 mm depth - enables easy integration into electronic assemblies without occupying excessive PCB space. Manufactured in Germany, this PCB transformer embodies high standards of quality and performance for demanding industrial and laboratory use cases.

PCB mount transformer with pin mounting. Vacuum resin moulded to UL94-V0 standard. Low inter-winding capacitance and low radiated noise. Electrical and flash tested for safety assurance. Multiple international standard approvals including VDE and IEC.

This Block VC 5,0/1/18 transformer's features make it suitable for industrial electronics, manufacturing equipment, laboratory instruments, and other applications requiring dependable power transformer solutions. Explore more PCB Transformers and related power supply components at EnvMart.
