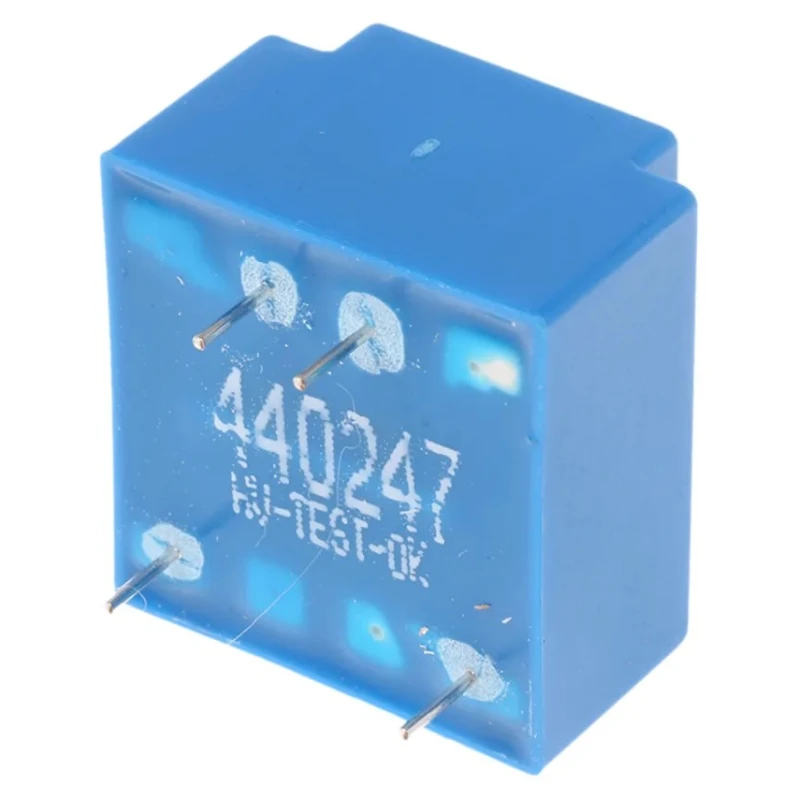

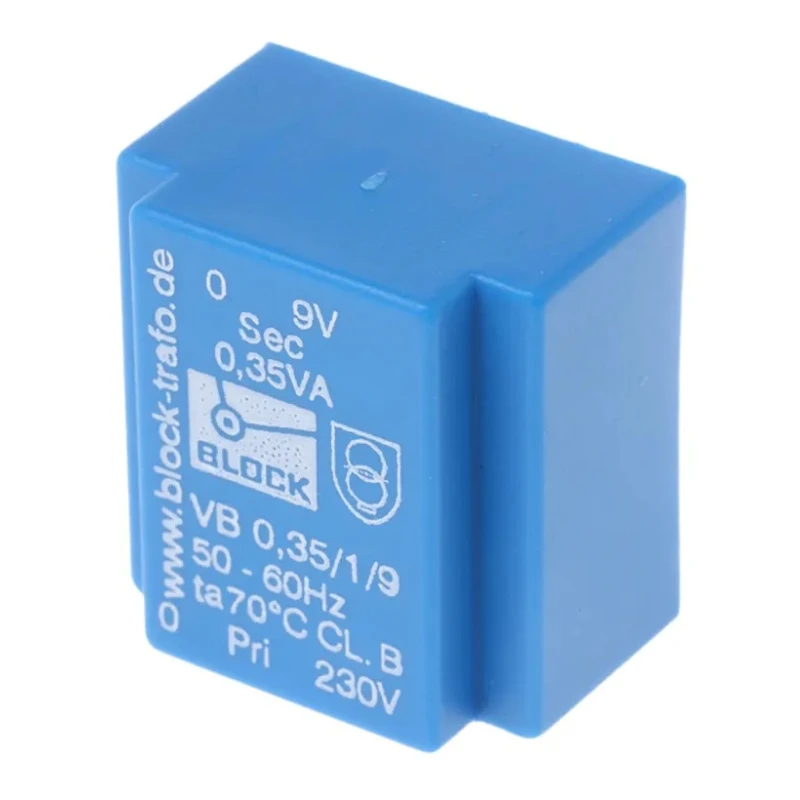

Block 9 V AC 1 Output Pin PCB Transformer, 0.35 VA, 230 V AC Primary, C-UL-US, ENEC 10 (VDE) VB 0,35/1/9

Free Delivery in India | Lowest Global Shipping Charges

Block 9 V AC 1 Output Pin PCB Transformer, 0.35 VA, 230 V AC Primary, C-UL-US, ENEC 10 (VDE) VB 0,35/1/9

Name: Block 9 V AC 1 Output Pin PCB Transformer, 0.35 VA, 230 V AC Primary, C-UL-US, ENEC 10 (VDE) VB 0,35/1/9
Brand: Block
SKU: 360616
Price: 15.27 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	30%
Length	22mm
Model	VB 0,35/1/9
Depth	15mm
Gross Weight	20g
Width	22.7mm
Mount Type	Pin
Maximum Operating Temperature	70°C
Number of outputs	1
Standards/Approvals	C-UL-US, ENEC 10 (VDE)
Pay online using	Or choose to pay later via bank transfer
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	9 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

This transformer has a single output with a pin mount type.

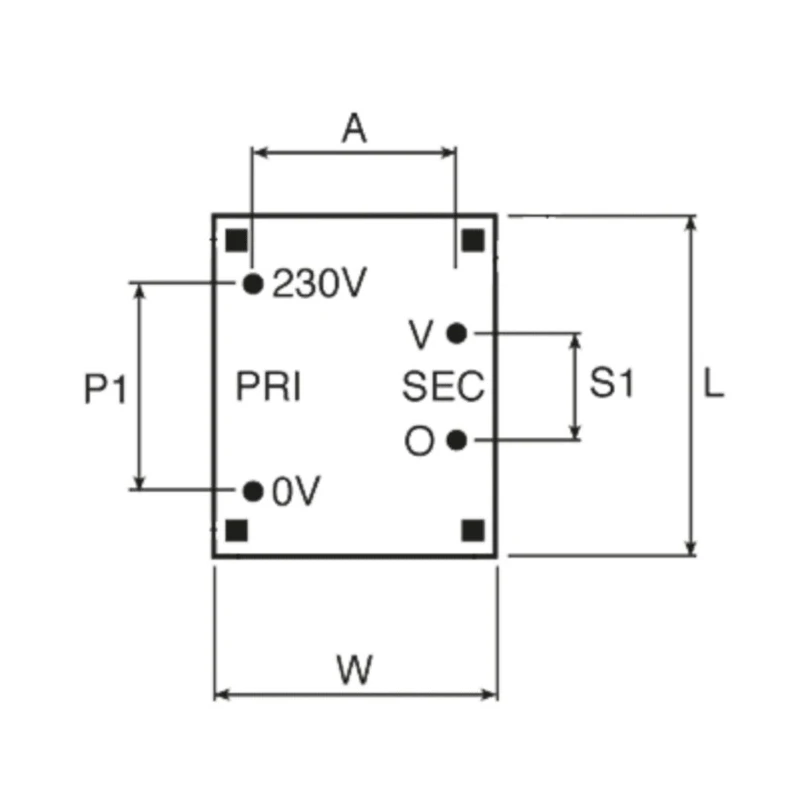

It features a compact design with dimensions of 22 mm length, 22.7 mm width, and 15 mm depth.
The component is vacuum epoxy resin moulded to UL94-V0 rating ensuring safety and durability.
It provides an isolation voltage of 5000 V and operates efficiently with 30% efficiency.
Designed according to standards including C-UL-US and ENEC 10 (VDE) approvals.
The maximum operating temperature is 70°C and it operates in frequency range 50 Hz to 60 Hz.
Its bobbins are made of double section glass fibre reinforced polyamide.
The transformer is inherently short circuit proof, suitable for demanding industrial environments.

Product Description

Block VB 0,35/1/9 PCB Transformer is a durable electronic component designed for reliable power supply applications. It offers a primary voltage of 230 V AC and delivers a 9 V AC output with a power rating of 0.35 VA. This transformer is mounted with pins ensuring easy PCB integration and compact footprint with exact dimensions of 22 mm length, 22.7 mm width, and 15 mm depth.

The transformer is vacuum epoxy resin moulded achieving UL94-V0 standard flame retardance and utilizes double section glass fibre reinforced polyamide bobbins for increased mechanical strength. Certified with C-UL-US and ENEC 10 (VDE) approvals, it complies with rigorous safety and quality standards. The isolation voltage rating is 5000 V, making it well suited for applications requiring strong electrical isolation.

It features low inter-winding capacitance and low radiated noise, enhancing performance in sensitive electronic and industrial settings. The transformer is short circuit proof, eliminating common failure modes and ensuring longer operational lifetime. Designed to operate efficiently with 30% efficiency at 50 to 60 Hz frequencies and withstand up to 70°C operating temperatures, this PCB transformer is ideal for use in power supplies, industrial electronics, and other electrical equipment requiring secure and stable voltage transformation.

This product is manufactured in Germany adhering to high-quality industrial manufacturing standards. Its compact and robust design suits industrial, laboratory, and commercial power conversion applications. Installation is simplified by its pin mount style and extra fixing holes are available for enhanced mounting security on higher power variants.

Overall, the Block VB 0,35/1/9 PCB Transformer combines safety, efficiency, and reliability, serving various power supply needs in industrial and commercial electronics. Browse related transformers and components at EnvMart to find compatible items and more.
