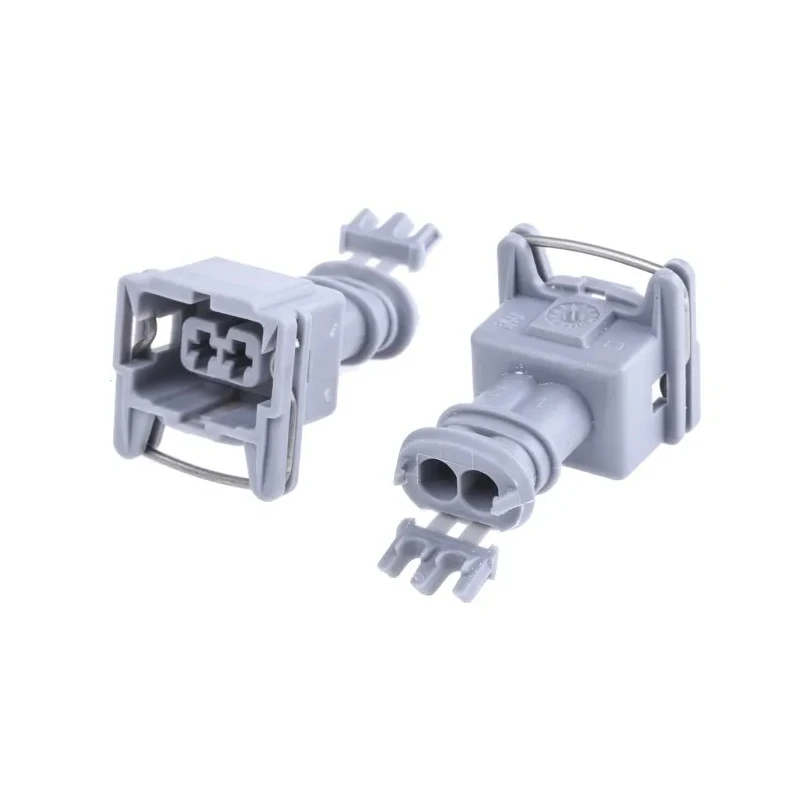

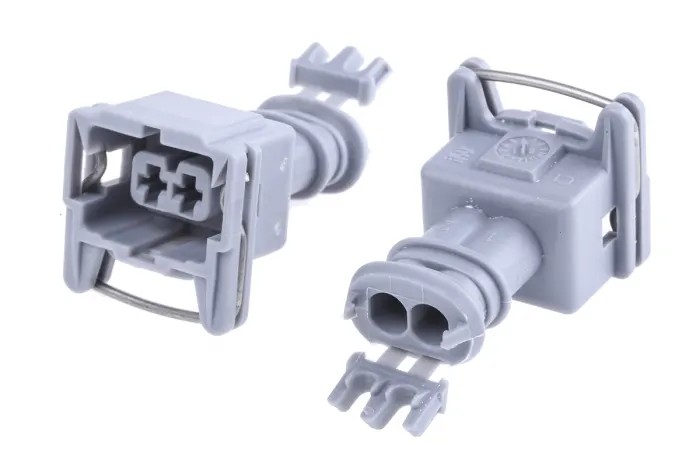

TE Connectivity Junior Power Timer Automotive Connector Female Grey Cable 2 Way Solder Termination 282680-1

TE Connectivity 282680-1 Junior Power Timer Automotive Connector Female Grey is an advanced connector housing designed specifically for automotive electrical systems requiring reliable and secure connections. This 2-position receptacle style connector housing supports female terminals and features a secondary locking mechanism integrated within the housing to ensure robust retention and vibration resistance.

Constructed of high-quality grey nylon material, the connector offers excellent durability and resistance to environmental factors. It complies with IP54K rating, providing protection against dust ingress and water splashes, making it ideal for automotive environments where exposure to harsh conditions is common.

The connector is rated for continuous current of 20 Amps and can operate safely between temperature extremes from -30 degrees Celsius up to 125 degrees Celsius. Its compact physical dimensions of 23.5 mm width, 23.4 mm height, and 37.5 mm depth make it suitable for applications with limited space requirements.

The Junior Power Timer series is characterized by a 5 mm pitch design, allowing compatibility with a broad range of timer contacts and socket contact options. This connector supports cable mount installation and features solder termination for secure electrical contact.

These automotive connectors are widely used in industries such as automotive manufacturing, industrial machinery, and electrical assembly where secure wire-to-board and wire-to-device connections are critical. The connector's design facilitates ease of assembly and maintenance, making it a practical choice for a variety of automotive electrical applications.

Connector housing with secondary locking mechanism for secure retention. Durable grey nylon material construction providing environmental protection. Rated for 20A continuous current with IP54K ingress protection. Operating temperature range from -30°C to 125°C.

Compact size suitable for tight spaces in automotive assemblies. 5 mm pitch standard for Junior Power Timer series connectivity. Solder termination suitable for cable mount installations. Designed for female terminals in wire-to-board and wire-to-device systems.

This product is an essential component in automotive electrical connector solutions and is supported by TE Connectivity’s reputation for high-quality industrial connectors. Browse the Electronics & Electricals and Automotive Connector categories at EnvMart for more specialized electrical components.
