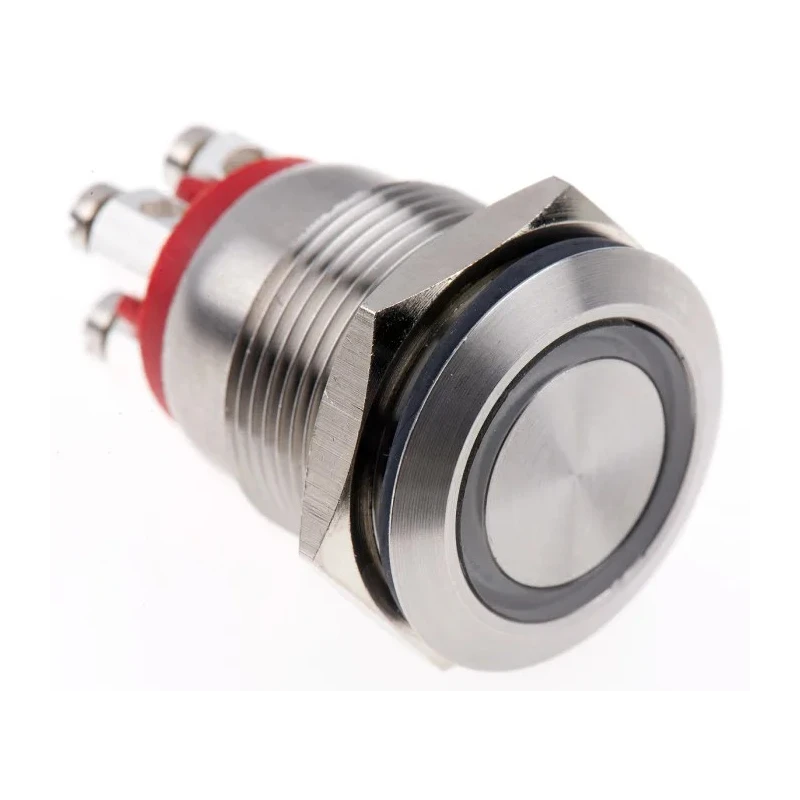

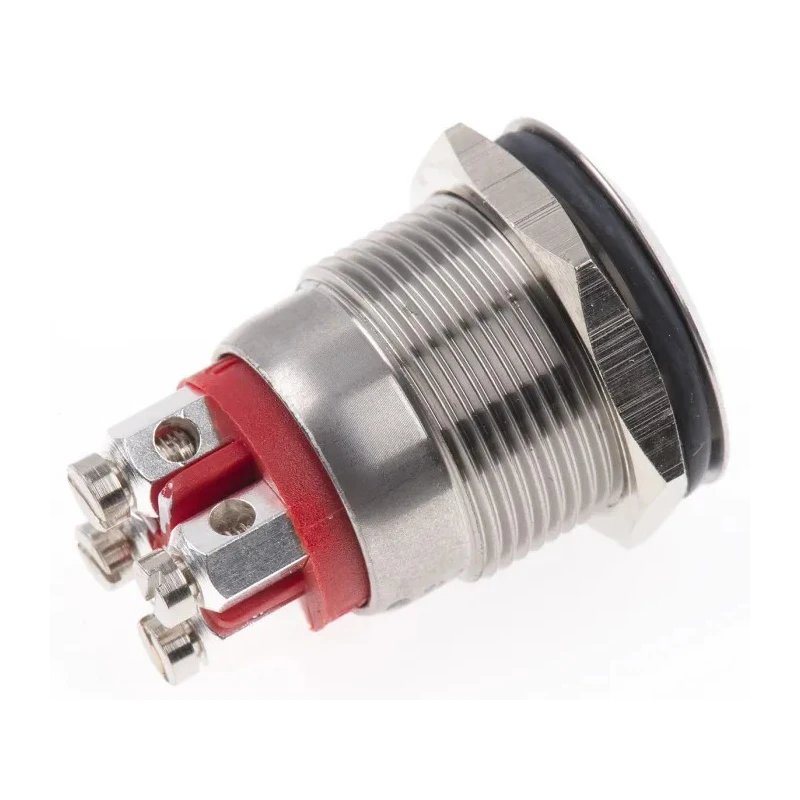

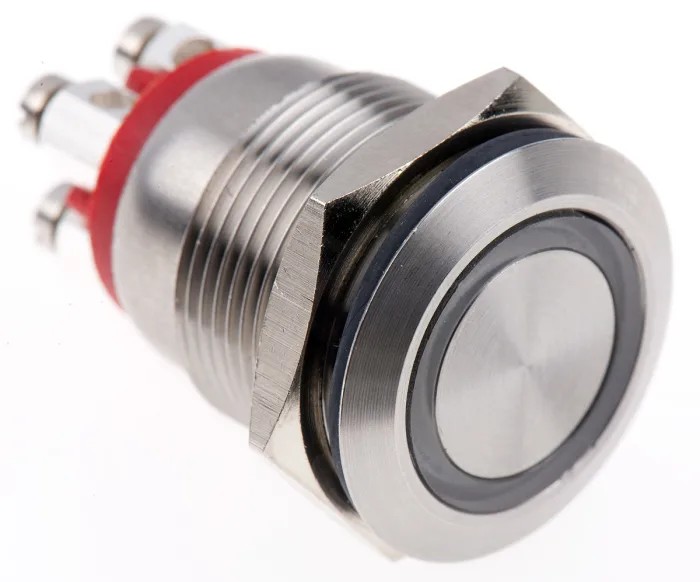

Bulgin MPI002 Series Illuminated Push Button Switch Momentary Panel 19.2 mm Cutout SPST Red LED IP66 24 V dc MPI002

Bulgin MPI002 Series Illuminated Push Button Switch is designed for industrial and automation applications requiring a reliable momentary switch with robust construction. This panel mount switch features a 19.2 mm cutout size, making it suitable for mounting into switch panels with precision. The silver actuator button provides tactile feedback and a clear interface for operators.

Illuminated by a red LED, the switch includes an integral supply resistor tailored for 24 V dc operation, ensuring stable illumination during use. The switch's SPST contact configuration supports single-pole, single-throw momentary operation, ideal for simple on/off controls or signaling within industrial control systems.

Manufactured with stainless steel materials, the switch is vandal resistant and designed to withstand wear from frequent use. The front panel is sealed to IP66, providing excellent protection against dust ingress and water jets, making it suitable for demanding environments such as manufacturing plants, commercial equipment, and automation systems.

Operating temperature ranges from -30°C to 70°C accommodate harsh environmental conditions. The switch supports a contact current rating of 50 mA suitable for low-power control circuits. Screw terminals allow for secure and reliable electrical connections.

Additional features include internal transient voltage suppression (TVS) protection and availability with various LED colors and voltage variants. The switch is RoHS compliant, ensuring it meets modern environmental standards.

The switch has a SPST contact configuration for simple on/off control. It is constructed from stainless steel with vandal-resistant design offering high durability. Illumination is provided by a red LED with integral supply resistor for 24 V dc.

The actuator style is a silver button for easy user interface. Mounting is via panel with screw terminal connections for secure wiring. The switch is rated IP66 for front panel sealing against dust and water ingress. Operating temperature ranges from -30°C to 70°C for harsh industrial environments.

Standard compliance includes RoHS certification. Contact current rating is 50 mA suitable for control circuits. The overall length is approximately 31 mm with screw terminals.

This illuminated Push Button Switch is ideal for use in industrial automation, electrical panels, HVAC control systems, and machinery where robust, reliable momentary switching is required. Explore more switches and innovative electrical components within the EnvMart catalog.
