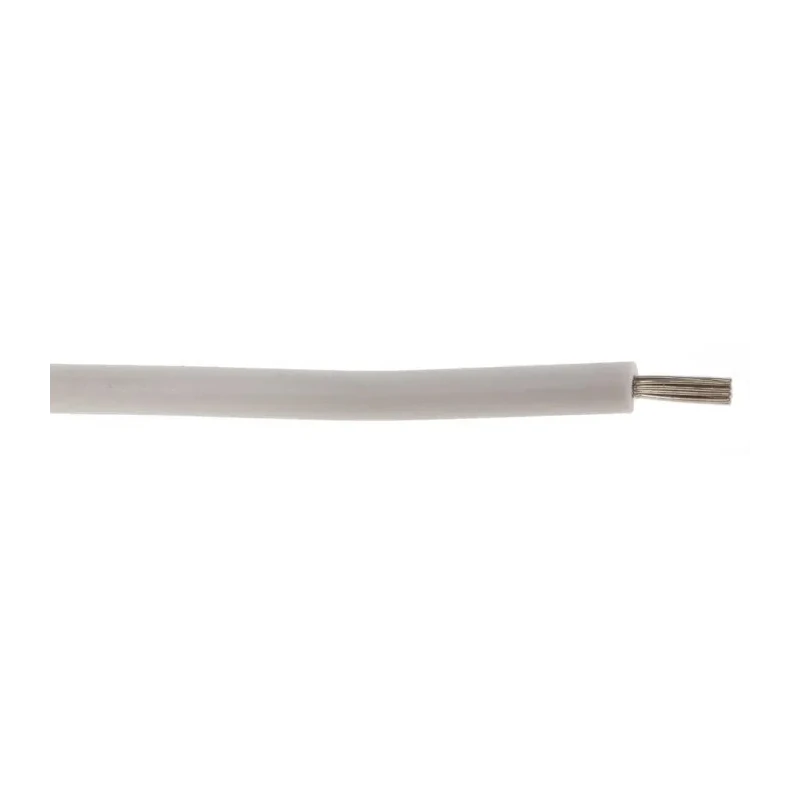

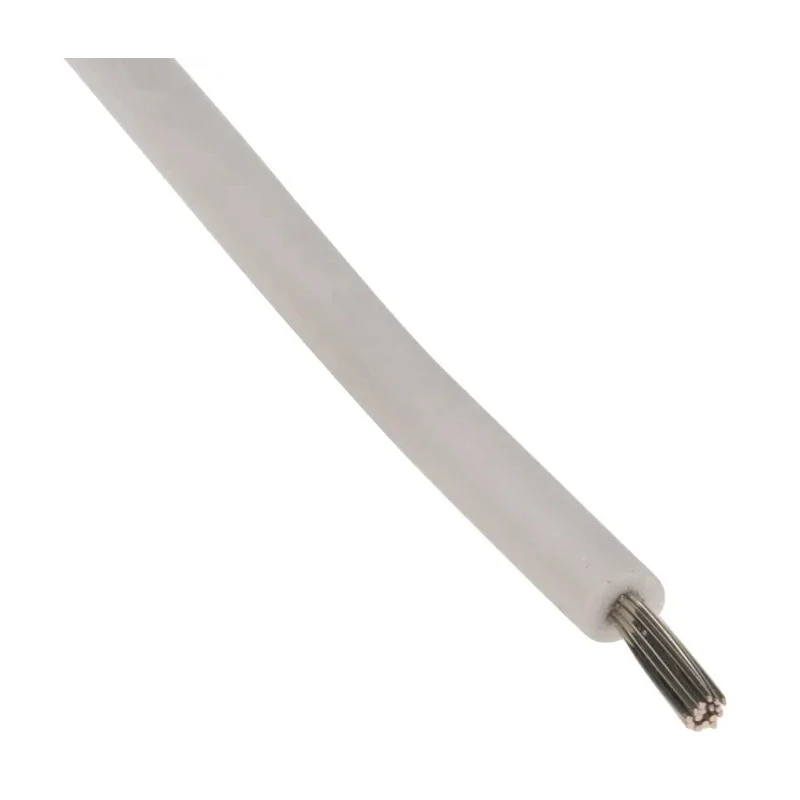

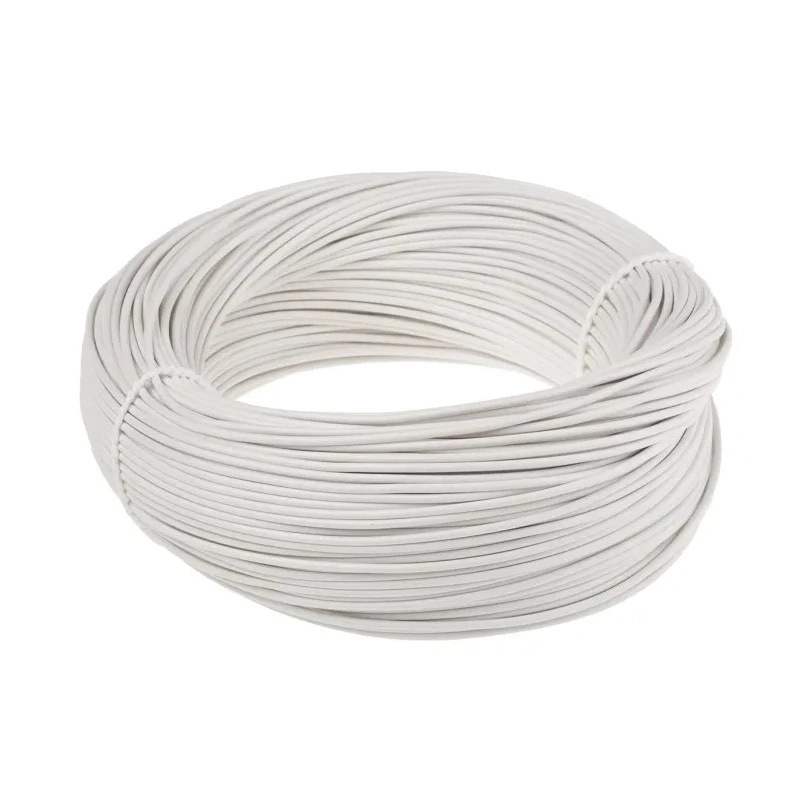

Lapp OLFLEX HEAT 180 SiF Series White 0.5 mm² Hook Up Wire, 19 x 0.25 mm Strands, 100 m Length, Silicone Rubber, Rated 48105

Free Delivery in India | Lowest Global Shipping Charges

Lapp OLFLEX HEAT 180 SiF Series White 0.5 mm² Hook Up Wire, 19 x 0.25 mm Strands, 100 m Length, Silicone Rubber, Rated 48105

Name: Lapp OLFLEX HEAT 180 SiF Series White 0.5 mm² Hook Up Wire, 19 x 0.25 mm Strands, 100 m Length, Silicone Rubber, Rated 48105
Brand: Lapp
SKU: 359858
Price: 65.94 USD
Availability: InStock



Category Hook Up Wire Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	300, 500V
Brand	Lapp
CROSS SECTIONAL AREA	0.5mm²
Model	48105
Cable Length	100m
Series	OLFLEX HEAT 180 SiF
Outside diameter	2.1mm
Maximum Operating Temperature	180°C
Conductor Material	Tin Copper Wire
Sub Type	Silicone Wire
Minimum Operating Temperature	-50°C
Jacket Material	Silicone Rubber
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	724-4480Brand: LappManufacturers Part No.: 48105Distrelec Article No.: 30158386
Jacket Colour	White
Number of Strands	19
Core Strands	19 x 0.25mm
Size of Strands	0.25mm

Key Features

This wire features 19 strands of 0.25 mm tin copper for superior conductivity.
It has a cable length of 100 meters for versatile usage.
The silicone rubber jacket is white, flame retardant, and halogen free.
Operating voltage ranges from 300 to 500 volts with maximum temperature tolerance up to 180 degrees Celsius.
The wire operates reliably in temperatures from -50 to 180 degrees Celsius.
Flame retardant properties comply with IEC 60332-1-2 standards.
It is resistant to oils, fats, and chemicals, suitable for contaminated industrial settings.
The flexible cable supports fixed installations with a minimum bending radius six times the core diameter.

Product Description

Lapp 48105 OLFLEX HEAT 180 SiF Series White 0.5 mm² Hook Up Wire is a highly durable single core silicone wire optimized for demanding electrical and industrial environments requiring stable performance under extreme temperature ranges and exposure to chemicals.

This 100-meter long hook up wire consists of 19 tightly stranded tin copper wire strands of 0.25 mm size that provide efficient conductivity and flexibility. The white silicone rubber jacket protects against flame propagation while maintaining elasticity and chemical resistance.

The cable supports operating voltages of 300 to 500 volts and withstands temperatures from -50°C to 180°C, making it ideal for HVAC systems, control panels, lighting fixtures, and electrical engineering projects exposed to harsh conditions.

Flexible design with a minimum bending radius six times the core diameter ensures ease of installation in fixed applications. Flame retardant jacket conforms to IEC 60332-1-2 standards to reduce fire hazard risks. The silicone rubber jacket is halogen free and complies with IEC 60754-1/-2 standards for corrosivity and toxic gas emissions.

Resistant to oils, fats, and chemical contact, making it suitable for industrial environments with contamination risks. Rated for use in applications requiring reliable signal and power transmission at high temperatures.

This Hook Up Wire is manufactured in Germany, reflecting high-quality standards and robust construction ensuring long-term reliability in industrial, laboratory, manufacturing, and commercial electrical automation applications.
