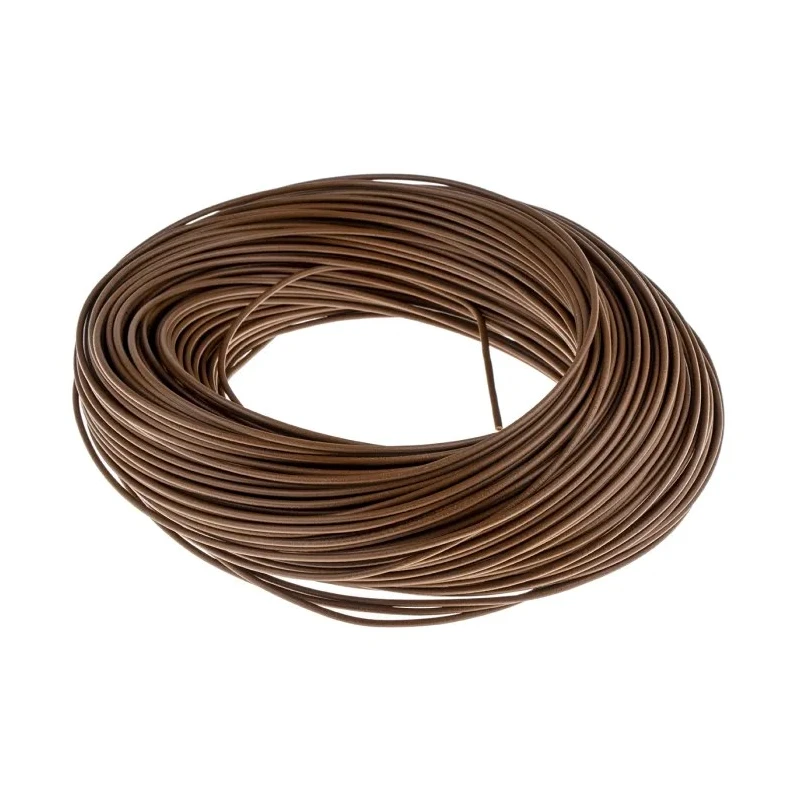

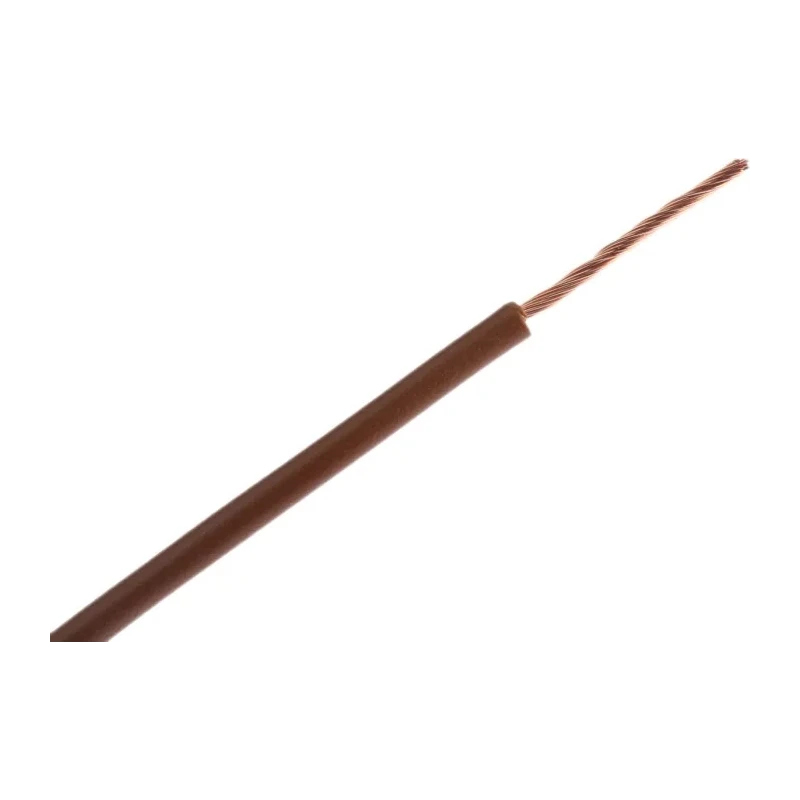

Lapp H05V-K Series Brown 1 mm² Hook Up Wire, 32/32 Strands, 100 m Length, 300/500V, Polyvinyl Chloride PVC Jacket 4510033

Free Delivery in India | Lowest Global Shipping Charges

Lapp H05V-K Series Brown 1 mm² Hook Up Wire, 32/32 Strands, 100 m Length, 300/500V, Polyvinyl Chloride PVC Jacket 4510033

Name: Lapp H05V-K Series Brown 1 mm² Hook Up Wire, 32/32 Strands, 100 m Length, 300/500V, Polyvinyl Chloride PVC Jacket 4510033
Brand: Lapp
SKU: 359843
Price: 92.03 USD
Availability: InStock



Category Hook Up Wire Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	300, 500V
Brand	Lapp
CROSS SECTIONAL AREA	1mm²
Model	4510033
Cable Length	100m
Series	H05V-K
Outside diameter	2.6mm
Maximum Operating Temperature	70°C
Conductor Material	Bare Copper
Sub Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CE marked, HAR acc. to EN 50525-2-31
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	361-737Brand: RS PRO
Jacket Colour	Brown
Number of Strands	32
Core Strands	32 x 32AWG
Size of Strands	32AWG

Key Features

The wire has a cross-sectional area of 1 mm² with 32 strands of 32 AWG copper for excellent conductivity.
It comes in a brown polyvinyl chloride (PVC) jacket providing flame retardant protection per IEC 60332-1-2 standards.
The cable length is 100 meters with 2.6 mm outside diameter.
Rated for a nominal voltage of 300/500 V and a maximum operating temperature of 70°C.
The wire operates safely in temperatures ranging from -40°C to +80°C when fixed.
It is CE marked with European HAR certification according to EN 50525-2-31.
Ideal for fixed installation inside devices, lighting equipment and control panels in industrial and commercial settings.

Product Description

Lapp 4510033 H05V-K Series Brown 1 mm² Hook Up Wire is a single core electrical cable designed for fixed installations in power and control wiring applications. It features a fine-wired bare copper conductor with Class 5 flexibility according to VDE 0295 HD 383 S2 specifications.

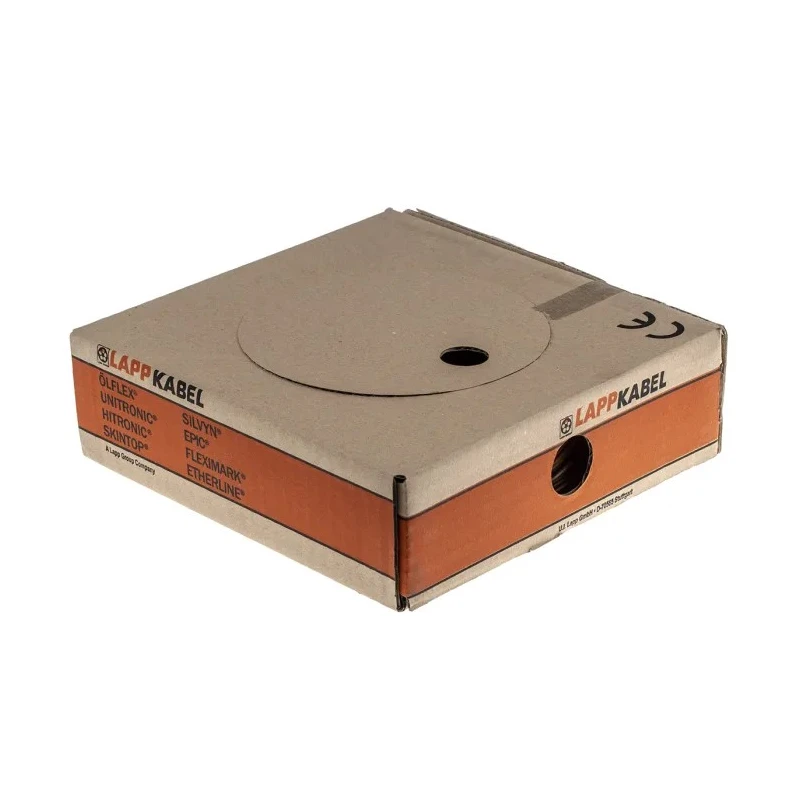

The wire has a nominal voltage rating of 300/500 volts and is jacketed with flame-retardant polyvinyl chloride (PVC), meeting the IEC 60332-1-2 flame retardant standard. The cable’s outside diameter measures 2.6 mm, with 32 strands each sized at 32 AWG. The cable length supplied is 100 meters, packaged in boxes.

Its operating temperature range spans from -40°C to +80°C when fixed, making it suitable for use in diverse environments. The product is CE marked and complies with the HAR European cable standard EN 50525-2-31, indicating high-quality construction and reliability.

This hook up wire is commonly used for internal wiring of electrical and electronic devices, industrial machinery, power management systems, and medical equipment, ensuring safe and reliable electrical connections.

The flexible stranded copper offers high conductivity and excellent mechanical strength, while the flame-retardant PVC jacket enhances safety in wiring installations. The wire consists of 32 strands of 32 AWG bare copper conductor.

Jacket material is durable polyvinyl chloride (PVC) with flame retardant properties. Nominal voltage rating is 300/500 volts suitable for power and control applications. Operating temperature range from -40°C minimum up to 70°C maximum rated temperature.

Compliant with CE marking and HAR certification to EN 50525-2-31 standard. Flexible and robust cabling provides ease of installation. Cable length of 100 meters per box, suitable for industrial and laboratory wiring needs.

This Lapp hook-up wire is ideal for applications across industrial automation, manufacturing equipment, electrical control panels, and lighting systems where safety, flame retardancy, and electrical performance are critical.
