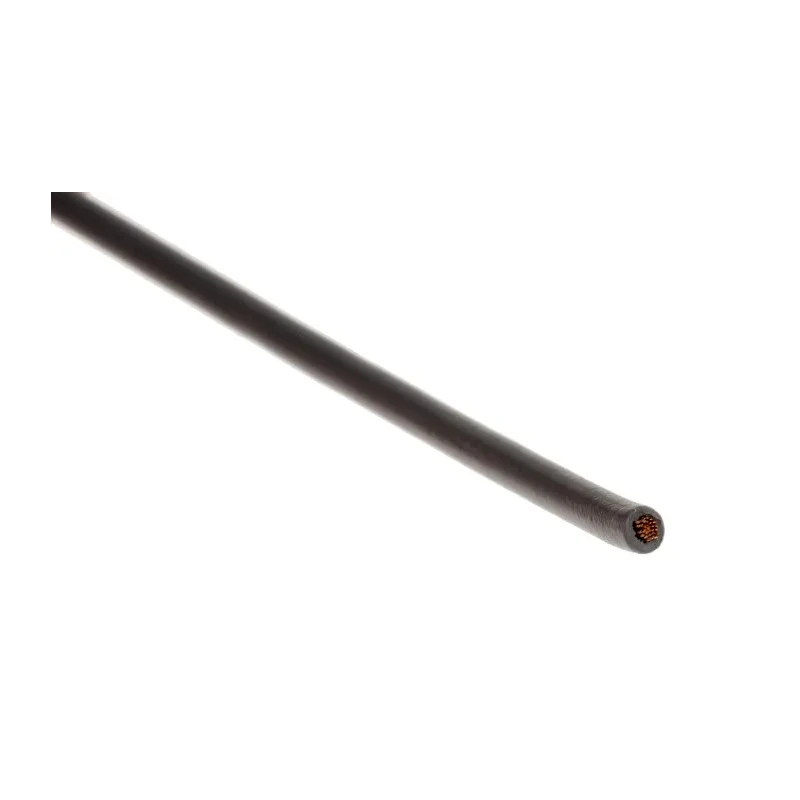

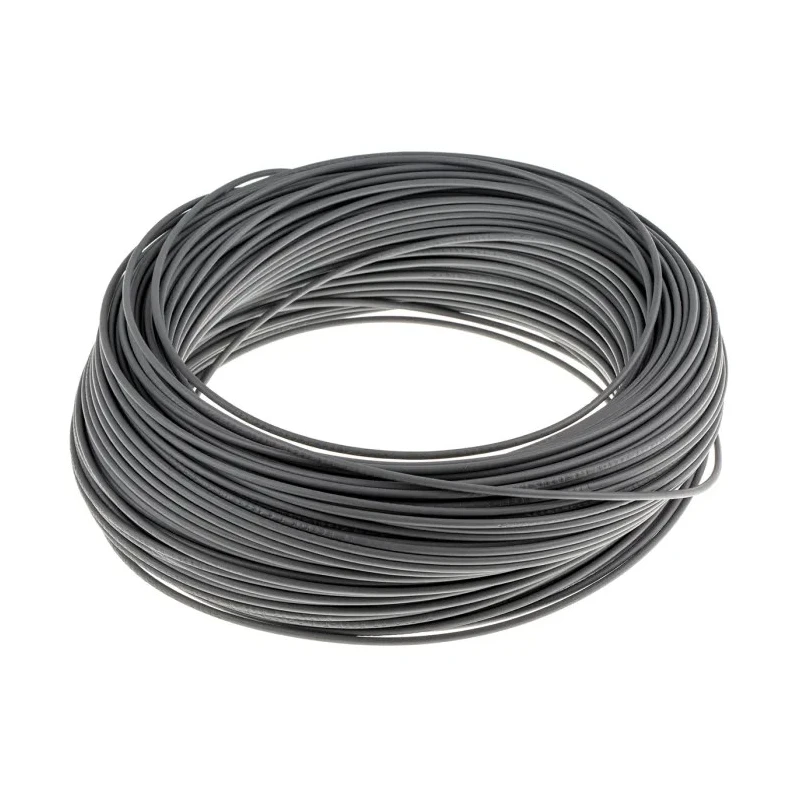

Lapp H05V-K Series Grey 0.75 mm² Hook Up Wire, 24 x 32 AWG, 100 m, Polyvinyl Chloride Jacket, 300/500V, Flame 4510062
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300, 500V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.75mm² |
| Model | 4510062 |
| Cable Length | 100m |
| Series | H05V-K |
| Outside diameter | 2.4mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Bare Copper |
| Sub Type | Single Core |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE marked, HAR acc. to EN 50525-2-31 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-4358Brand: LappManufacturers Part No.: 4510062 |
| Jacket Colour | Grey |
| Number of Strands | 24 |
| Core Strands | 24 x 32AWG |
| Size of Strands | 32AWG |
Key Features
- This hook up wire has a cross-sectional area of 0.75 mm² and consists of 24 strands of 32 AWG bare copper conductor.
- The cable length is 100 meters with an outside diameter of 2.4 mm.
- It is rated for nominal working voltages of 300 and 500 volts, with a maximum operating temperature of 70°C and a minimum of -40°C.
- The jacket is made from polyvinyl chloride, providing flame retardant performance according to IEC 60332-1-2 standards.
- The wire is certified with CE marking and HAR acc. to EN 50525-2-31 for quality assurance.
- Suitable for indoor fixed installations and protected applications in industrial, medical, and power management sectors.
- The minimum bending radius is 6 times the cable diameter, ensuring flexibility during installation.

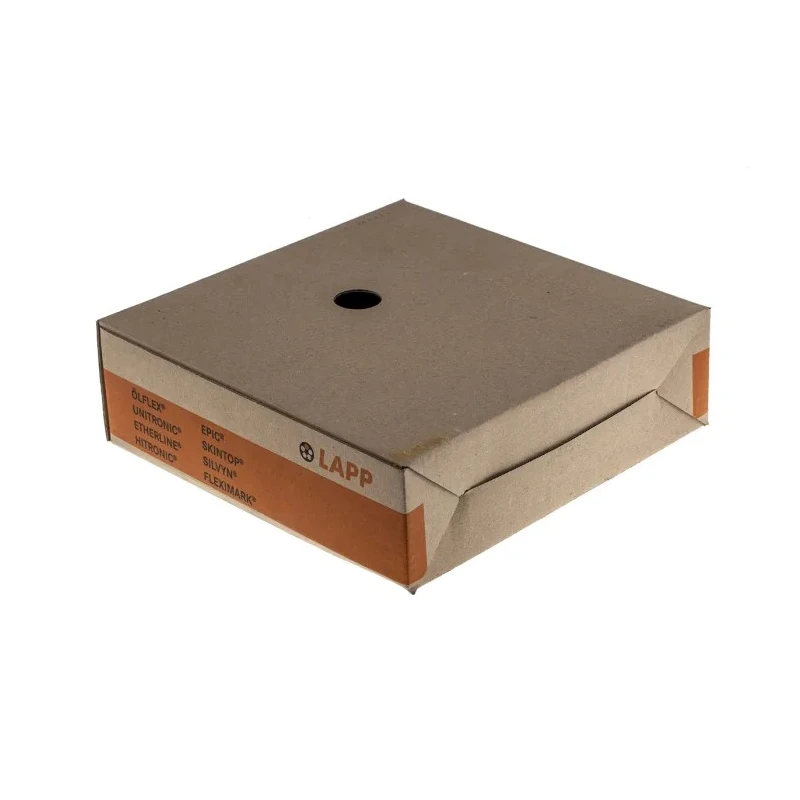

- The product is supplied in boxes of 100 meters, not reels, for ease of handling.
Product Description
Lapp 4510062 H05V-K Series Grey 0.75 mm² Hook Up Wire is a single-core cable designed for fixed installations in power and control applications. The cable features a finely stranded bare copper conductor insulated with a PVC-based jacket that is flame retardant and compliant with European HAR cable type certification.
The nominal working voltage is rated at 300/500 V, supporting reliable operation in diverse industrial and commercial environments. Operating temperatures range from -40°C to 70°C (maximum), enabling use in varied environmental conditions.
The wire has 24 strands sized 32 AWG, with a cable length of 100 meters and an overall diameter of 2.4 mm, making it ideal for precise wiring tasks requiring flexibility and durability. The minimum bending radius is 6 times the cable diameter, which facilitates easier installation in tight spaces without compromising cable integrity.
The PVC jacket material offers robust protection against mechanical stress and flame, meeting flame retardancy standards IEC 60332-1-2 and EN 60332-1-2. This ensures safer installations by limiting fire spread risks.
Applications typically include internal wiring of devices, protected installations on lighting equipment, industrial machinery, medical equipment, and power management systems. The wire is particularly suited for indoor use but can withstand brief outdoor exposure due to its broad temperature range.
Unlike reels, this product is supplied in boxed format for convenient storage and transport. Users benefit from a high-quality cable that meets CE and HAR certification for assured quality and compliance with European standards.
This Hook Up Wire features bare copper conductors according to VDE 0295 class 5 HD 383 S2. Nominal working voltage is 300/500 volts for versatile applications. The cable has a flame-retardant polyvinyl chloride jacket enhancing safety.
Minimum bending radius is 6 times the cable diameter for flexible installation. Rated operating temperature ranges from -40°C to +70°C when fixed. Meets CE marking and HAR certification according to EN 50525-2-31 standards.
Explore our extensive range of high-quality cables and wires in the Electronics & Electricals category at EnvMart for more expert solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this hook up wire is 0.75 mm².
The maximum operating temperature for this model is 70°C.
This wire supports nominal working voltages of 300V and 500V.
The wire is supplied in a length of 100 meters per box.
The jacket of this hook up wire is made from polyvinyl chloride (PVC).
The minimum operating temperature for this wire is -40°C.
The outside diameter of this hook up wire is 2.4 mm.
This wire consists of 24 strands of 32 AWG bare copper conductor.
This wire is CE marked and complies with HAR standards according to EN 50525-2-31.
The minimum bending radius for installation is 6 times the cable diameter.
This hook up wire is suitable for indoor fixed installations in industrial, medical, and power management sectors.
The conductor material used in this wire is bare copper.
