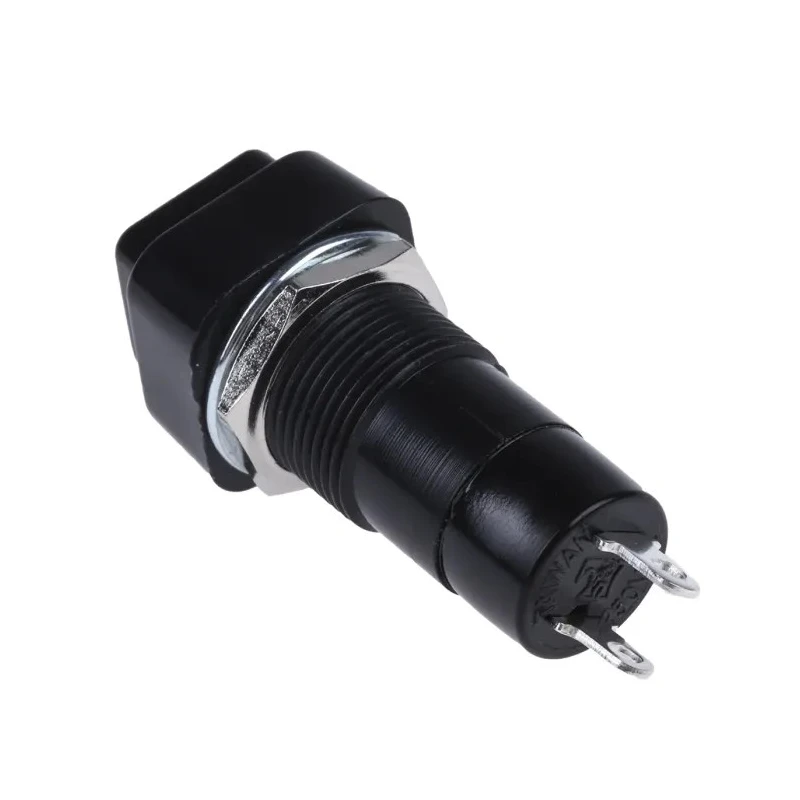

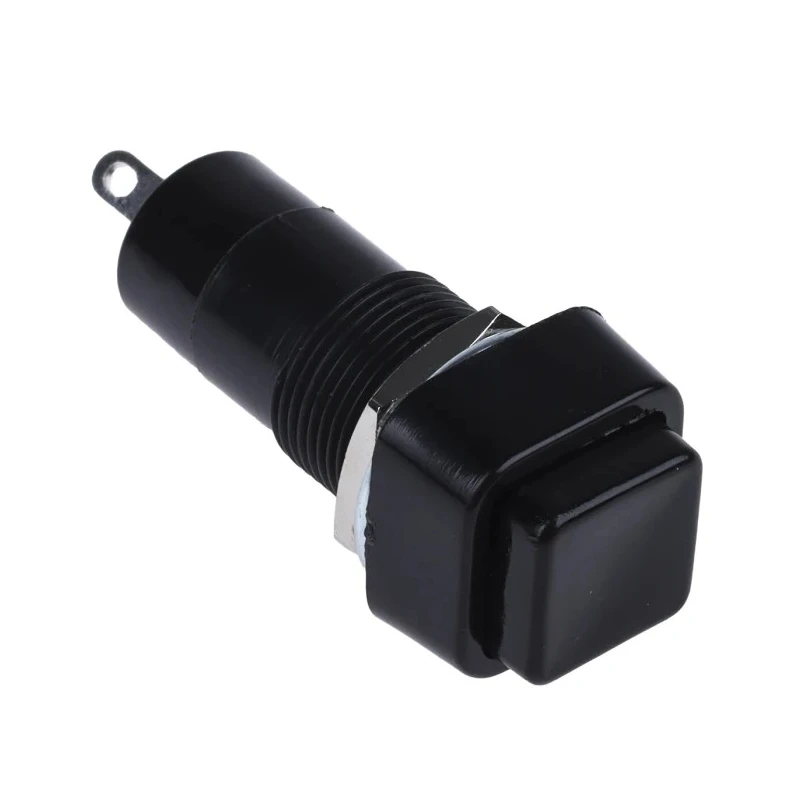

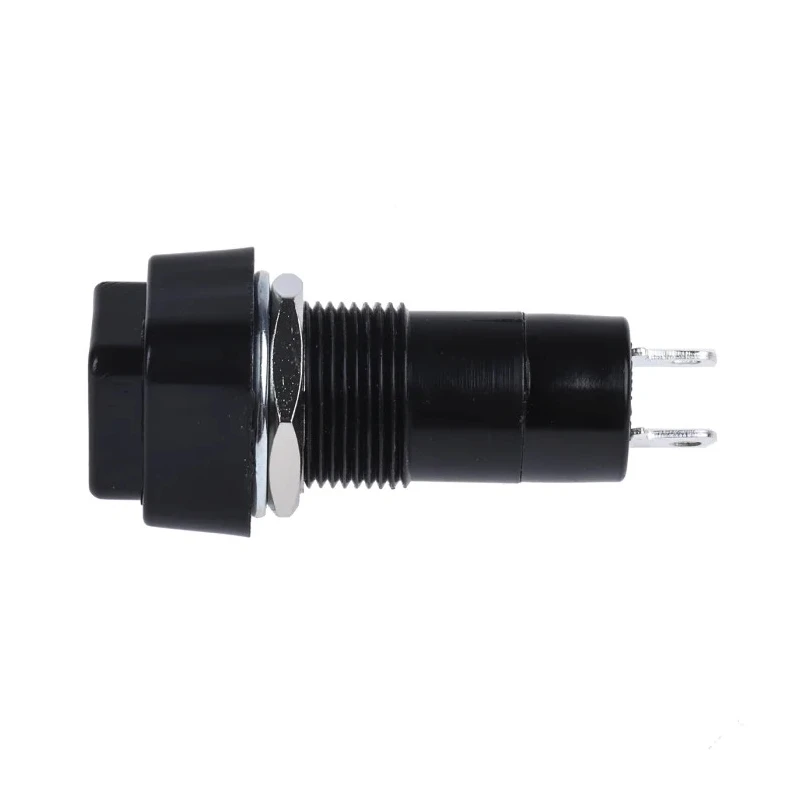

Lumberg PBS-001B Series Push Button Switch, Momentary, Panel Mount, 12 mm Cutout, SPST, IP40/IP67, 250 V AC PBS-001B-2
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Lumberg |
| Model | PBS-001B-2 |
| IP Rating | IP40, IP67 |
| Mount Type | Panel |
| Series | PBS-001B |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Panel Cutout Size | 12 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-3324Brand: LumbergManufacturers Part No.: PBS-001B-2Distrelec Article No.: 30401816 |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Style | Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a black nylon actuator button with a square faced 15.5 mm bezel.
- Designed for panel mounting with solder tag terminals for secure connections.
- Rated for IP40 and IP67 ingress protection classes, suitable for dust and temporary immersion protection.
- Supports a maximum contact AC voltage of 250 V and a contact current of 3 A.
- Capable of withstanding mechanical life greater than 10,000 operations for durability.
- Operates reliably up to a maximum temperature of 120°C.
- Approvals include CSA and UL standards ensuring safety and quality compliance.
- Ideal for industrial and electrical automation applications requiring momentary push button control.
Product Description
Lumberg PBS-001B-2 is a high-quality push button switch featuring a momentary on-off configuration designed for panel mounting. This series includes switches with robust ABS bodies and nylon actuator buttons in black color, ideal for industrial control panels and automation systems.
The switch requires a 12 mm panel cutout and offers SPST (single pole, single throw) contact configuration with solder tag terminals. It is built to handle 250 V AC voltage at a current rating of 3 A, ensuring reliable electrical performance.
The device is protected against dust ingress up to IP40 and temporary immersion according to IP67 standards, making it suitable for harsh environments. The mechanical life expectancy exceeds 10,000 operations, indicating long-term durability.
Operating temperatures up to 120°C allow its use in elevated temperature conditions typical in electrical cabinets or machinery. It holds certifications from CSA and UL for recognized safety and quality assurance.
Typical applications include electrical automation, control panels, and machinery requiring a momentary push button for user input or control functions. The actuator button is black nylon with a square-faced bezel measuring 15.5 mm for a secure and tactile interface.
Panel mounting is facilitated with a precise 12 mm cutout size. Solder tag terminals enable dependable electrical connections. Ingress protection ratings of IP40 and IP67 protect against dust and temporary water immersion conditions.
Rated for 3 A contact current at 250 V AC makes it suitable for a range of control circuits. Meets CSA and UL standards ensuring adherence to international electrical safety requirements. Mechanical durability supports over 10,000 operational cycles.
Choose Lumberg PBS-001B Push Button Switches for reliable, durable, and well-certified momentary control solutions in demanding electrical and industrial environments. Explore other solutions and similar products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum contact AC voltage of 250 V.
The switch has a contact current rating of 3 A.
It is rated for IP40 and IP67, providing protection against dust and temporary immersion in water.
The switch requires a panel cutout size of 12 mm for proper installation.
It features solder tag terminals for secure electrical connections.
The mechanical life expectancy exceeds 10,000 operations, indicating long-term durability.
It can operate reliably at temperatures up to 120°C.
This model features a momentary on-off configuration with SPST contact.
It holds approvals from CSA and UL, ensuring compliance with safety and quality standards.
The actuator is a black nylon button with a square-faced bezel.
It is ideal for industrial control panels and electrical automation applications requiring momentary push button control.
This model is part of the PBS-001B series, designed for panel mounting.
