Lapp ÖLFLEX® H07Z-K 90° Series Black 1.5 mm² Hook Up Wire 100 m Low Smoke Zero Halogen Cross Linked 4726011

Lapp 4726011 ÖLFLEX® H07Z-K 90° Series Black 1.5 mm² Hook Up Wire offers a high standard low smoke zero halogen (LSZH) option for electrical wiring needs. This 100 m cable is designed to provide enhanced safety by releasing minimal smoke and no halogen when exposed to fire, protecting personnel and equipment in critical environments.

The wire features a black LSZH cross linked insulation jacket with an outside diameter of 3.5 mm, suitable for voltages of 450 and 750 volts and a maximum operating temperature of 90°C. The conductor is made of bare copper, ensuring excellent electrical conductivity and flexibility.

Manufactured to harmonized standards, including EN 50525-3-41, CE, and EAC, the ÖLFLEX® H07Z-K series meets flame retardant requirements of IEC 60332-1-2 and EN 60332-1-2. It is intended for use in dry rooms and installations inside conduits and sealed glands, commonly found in control cabinets, distribution panels, and switchgear.

This Hook Up Wire is well suited for applications with stringent safety requirements, such as underground railways, marine equipment, power plants, and nuclear installations where low smoke and halogen-free cables are critical. Its properties reduce toxic gas emissions and corrosive residues in the event of fire, essential for low ventilation areas like aircraft and offshore facilities.

The 1.5 mm² single-core wire is designed for wiring devices and fittings, providing reliable performance in industrial automation, electrical installations, and manufacturing plants. The HAR certification further confirms the wire's suitability for most European machinery and equipment.

This cable is low smoke zero halogen (LSZH) rated. Meets harmonized (HAR) certification standards for reliable European use. Fire retardant as per IEC 60332-2-2 ensuring safety under fire conditions. Complies with smoke density IEC 61034 and halogen content IEC 60754-1 standards.

Wide operational temperature range of -15°C to +90°C for various environments. Ideal for electrical cabinets, switchgear, and control panels. Recommended for hazardous area installation with no hazardous certification. Compatible with Lapp Cable accessories including SKINTOP CLICK cable glands and fittings.

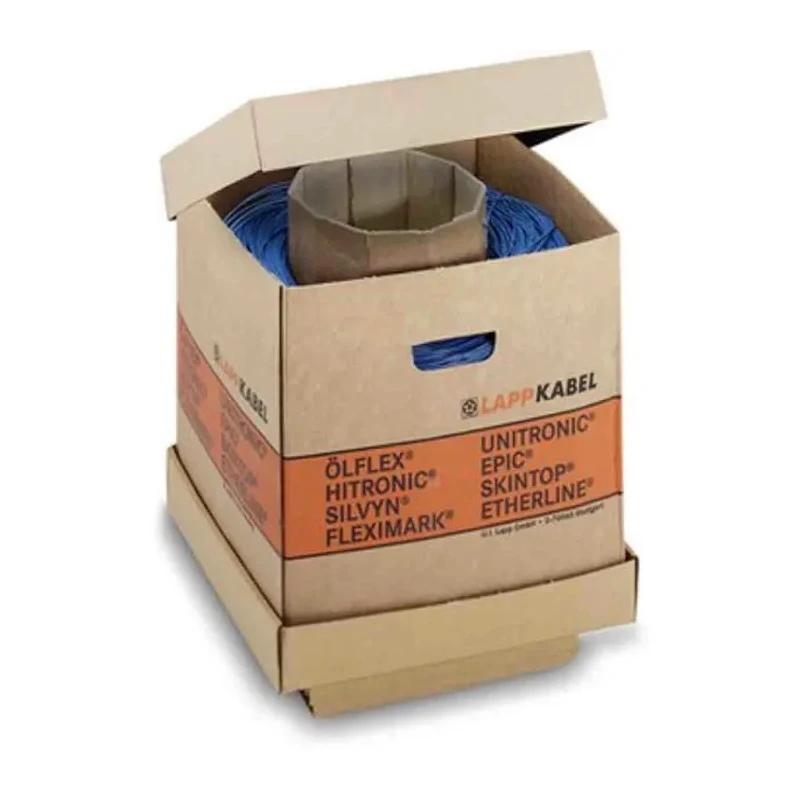

Available in a 100 m length for versatile electrical installation needs.

Choose Lapp ÖLFLEX® H07Z-K 4726011 for safe, durable, and flame-retardant hook up wiring in industrial, commercial, and transportation applications. Explore more quality electrical cables at EnvMart.
