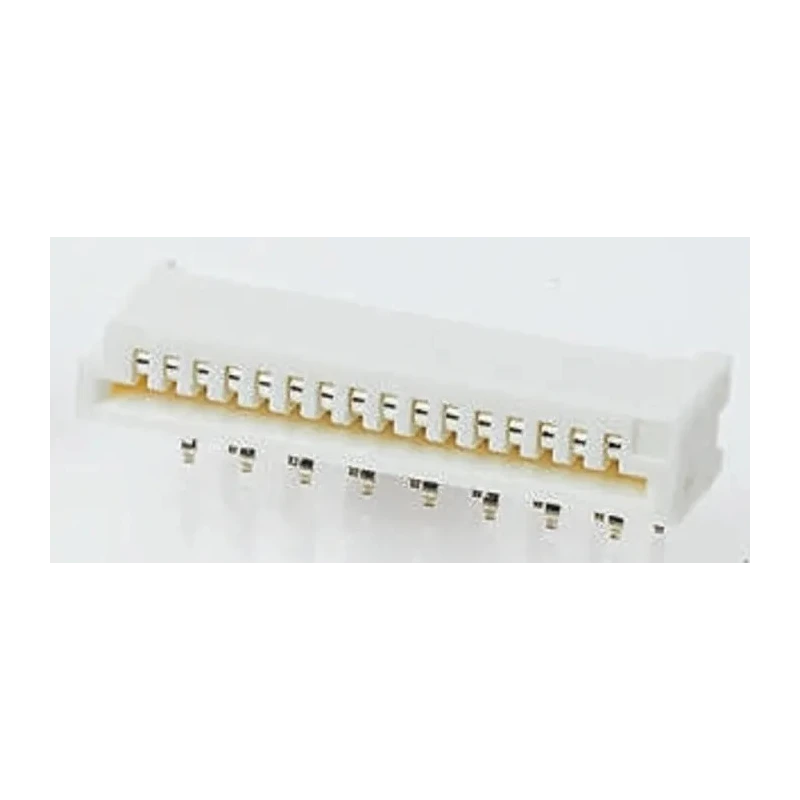

TE Connectivity FPC 1 mm Pitch 18 Way Right Angle Female FPC Connector, Solder 1-84953-8
Specifications
| Country of Origin | Singapore |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-8696PBrand: TE ConnectivityManufacturers Part No.: 1-84953-8 |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Features a slide lock actuator for easy cable insertion and secure connection.
- Constructed with phosphor bronze contacts plated with tin over nickel for durability.
- Operates at a voltage of 200V AC and current rating of 1A.
- Suitable for use in industrial equipment, business equipment, medical devices, and consumer electronics.
- Made with liquid crystal polymer housing for high temperature resistance ranging from -40°C to 85°C.
- Zero Insertion Force (ZIF) design reduces wear and increases mating cycles.
- Right angle orientation with top contact position optimizes PCB space usage.
- Includes solder tabs for enhanced PCB retention without need for additional tooling.
Product Description
TE Connectivity 1-84953-8 FPC Connector is a high-quality, right angle female FPC connector with a 1 mm pitch and 18 contacts, designed for surface mounting with solder termination. This connector features a Zero Insertion Force (ZIF) slide lock actuator that facilitates easy cable insertion while providing secure retention, minimizing wear and enhancing durability in high vibration environments.
Constructed from phosphor bronze contacts plated with tin over nickel and housed in liquid crystal polymer material, this connector offers excellent electrical performance and mechanical strength. It supports operating voltages up to 200V AC and currents of 1A, making it versatile for various industrial, business, medical, and consumer electronic applications.
The device operates reliably within a wide temperature range of -40°C to 85°C. Its compact right angle design with top positioned contacts allows efficient PCB layout optimization. Solder tabs provide additional mechanical retention to the PCB, enhancing connection stability without requiring extra assembly tools.
Ideal for applications including handheld scanners, set-top boxes, PCs and peripherals, industrial devices, and medical equipment, this connector meets demanding technical and environmental requirements.
Slide lock actuator enables secure and easy cable insertion. Phosphor bronze contacts with tin over nickel plating ensure reliable electrical connection. Suitable for voltages up to 200V AC and currents up to 1A. Operates between -40°C and 85°C ambient temperatures.
Right angle orientation supports compact PCB designs. Liquid crystal polymer housing offers mechanical stability and high temperature resistance. Includes solder tabs for enhanced PCB retention. Zero Insertion Force design reduces contact wear and increases mating cycles.
This TE Connectivity FPC connector is manufactured in Singapore and is supplied new. It is ideal for various electronics and industrial applications where space saving and reliable connections are essential. Explore more in the FPC Connector category at EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 200V AC and has a current rating of 1A.
This connector operates reliably within a temperature range of -40°C to 85°C.
It features phosphor bronze contacts plated with tin over nickel and a housing made of liquid crystal polymer.
The ZIF design reduces wear on the contacts and increases the number of mating cycles, enhancing durability in high vibration environments.
It has a right angle orientation, which optimizes PCB space usage.
This model has 18 contacts.
It uses solder termination for surface mounting.
It is suitable for use in various applications including industrial equipment, business equipment, medical devices, and consumer electronics.
The pitch of this connector is 1 mm.
Yes, it includes solder tabs for enhanced PCB retention without the need for additional tooling.
The contact position is top positioned, which aids in efficient PCB layout optimization.
This connector is manufactured in Singapore.
