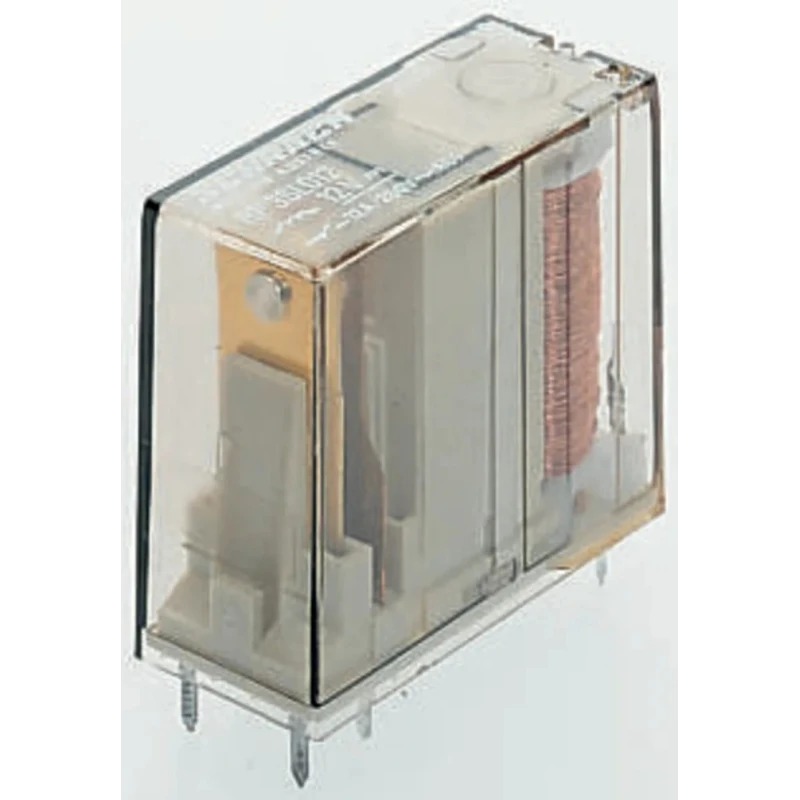

TE Connectivity PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST Contact Configuration 6-1393231-5

TE Connectivity model 6-1393231-5 is a high-quality PCB power relay designed with a 12V DC coil and a switching current capacity of 16A. This relay features a Single Pole Single Throw (SPST) contact configuration, making it ideal for controlling electrical circuits with high switching capability.

The device is manufactured under the RP3SL series and employs silver alloy contact material to ensure excellent conductivity and durability. It has a coil resistance of 1.1kΩ and a coil power rating of 500 milliwatts, which balances power efficiency and performance. The relay is engineered for a wide operating temperature range from -40°C to 70°C, allowing reliable operation in harsh environments.

With dimensions of 29mm length, 25.5mm height, and 12.6mm width, this relay ensures compact integration into printed circuit boards. It supports a maximum switching voltage of 400V AC and a switching power rating of 4 kVA. An isolation voltage of 4000 Vac between coil and contacts provides strong electrical isolation protection. The relay's quick 20ms inrush capability can handle currents up to 120A.

It is suitable for industrial, laboratory, and commercial applications including lighting control, timers, motor controls, and home automation systems. The relay is compliant with RoHS directives and IEC 61810 standards, ensuring environmentally friendly and reliable performance.

This power relay accommodates PCB mounting with solder terminal type. The relay comes from the RP3SL series with silver alloy contact material for reliable conduction. Operating temperature range spans from -40°C to 70°C, suitable for various applications.

The coil resistance is 1.1kΩ, with a coil power rating of 500 mW for efficient operation. It supports a maximum switching AC voltage of 400V AC and switching power up to 4 kVA. Dimensions are compact: length 29mm, height 25.5mm, and width 12.6mm, fitting standard PCB footprints.

Applications include lighting control, timers, motor control, and home automation systems. The relay complies with RoHS and IEC 61810 standards for quality and safety assurance. Explore EnvMart for more TE Connectivity products and a wide range of Power Relays to meet your electrical control needs.
