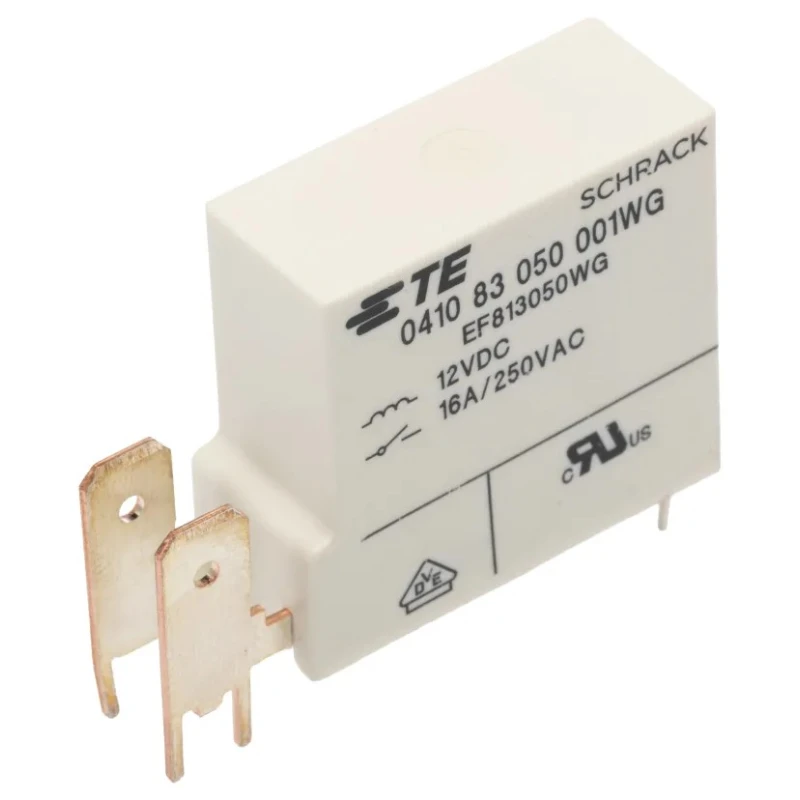

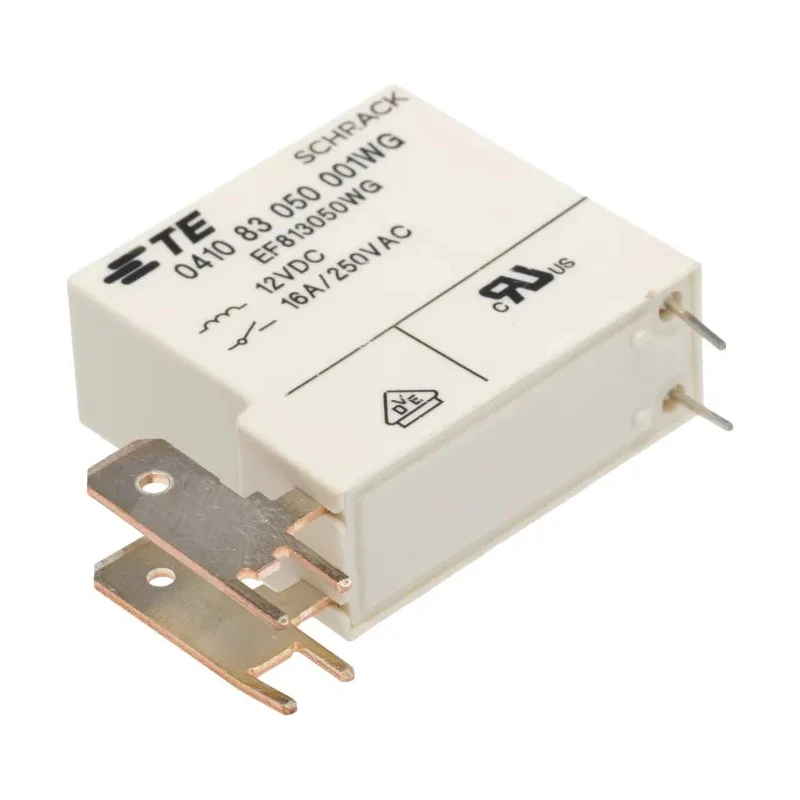

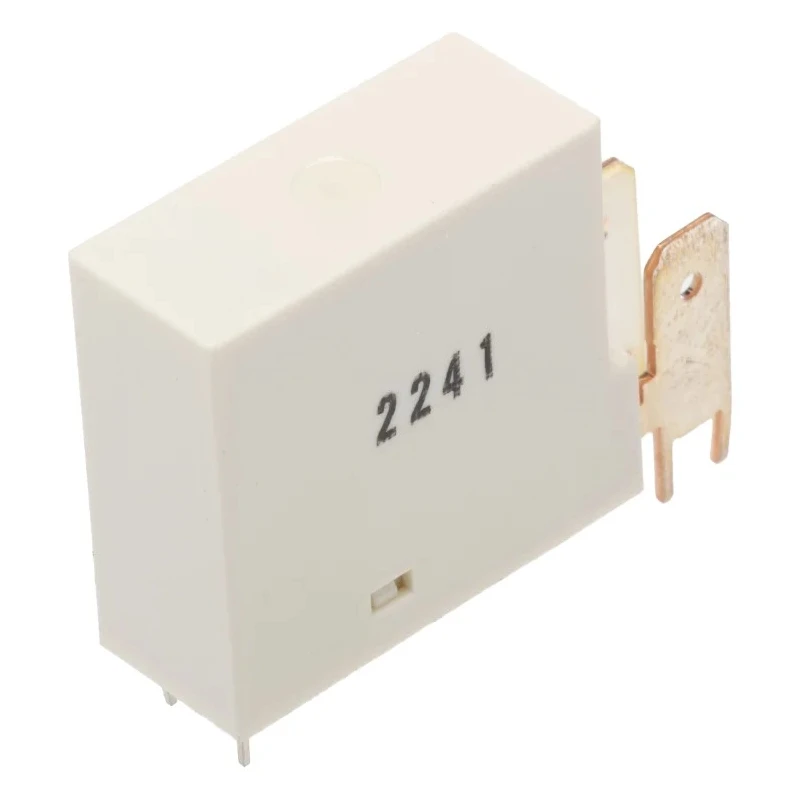

TE Connectivity PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST, Silver Alloy Contacts, 41083 Series 8-1415536-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 28.5mm |
| Length | 31.5mm |
| Width | 12.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 41083 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, REACH, IEC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1847PBrand: TE ConnectivityManufacturers Part No.: 8-1415536-7 |
| Coil Resistance | 400Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 360mW |
Key Features
- The relay features silver alloy contacts ensuring high conductivity and durability.
- It supports a switching AC voltage of 400V AC and switching power of up to 4kVA.
- Coil resistance is rated at 400 ohms with a coil power consumption of 360mW.
- Operating temperature ranges from -20°C to a maximum of 85°C ensuring stable performance.
- Compact dimensions of 31.5mm length, 28.5mm height, and 12.5mm width suit PCB mount applications.
- Constructed with high-quality materials meeting standards including VDE, UL, RoHS, REACH, and IEC.
- Typical uses include industrial and domestic appliances requiring safe, efficient power switching.
- The 41083 series relay provides quick connect terminals for efficient installation and maintenance.
Product Description
TE Connectivity 8-1415536-7 PCB Power Relay is a high-quality electrical component designed for reliable switching operations in industrial and domestic environments. This relay operates with a 12V DC coil and supports a switching current of 16A, utilizing an SPST contact configuration. Its silver alloy contact material ensures excellent conductivity and durability, ideal for demanding electrical control applications.
The relay has a robust construction designed for PCB mounting, featuring precise dimensions of 31.5mm in length, 28.5mm in height, and 12.5mm in width. It consumes 360mW coil power with a coil resistance of 400Ω, supporting switching AC voltages up to 400V and switching power up to 4kVA. It is built to endure ambient temperatures from -20°C to 85°C, with a maximum operational temperature of 105°C at 10A, making it suitable for various electrical control and automation tasks.
This 41083 series relay conforms to multiple international standards and approvals including VDE, UL, RoHS, REACH, and IEC, which affirm its safety and compliance for use in electrical equipment. Its quick connect terminals facilitate easy and efficient connection on the load side, streamlining installation in both manufacturing and domestic applications.
Its typical applications include washing machines, tumble dryers, and other domestic appliances that require absolute safe power supply disconnection. Additionally, it is well-suited for industrial automation systems and electrical control circuits where dependable power relay functionality is critical.
The relay provides an effective solution for reliable power switching with 16A current capacity. Compact and robust design aligns with PCB mounting requirements in automated systems. Silver alloy contacts guarantee long-term performance and corrosion resistance.
Compliance with major global safety standards ensures quality and reliability. Quick connect terminals enable efficient wiring and maintenance processes. Suitable for both industrial and domestic use incorporating strict safety protocols.
Ambient temperature operation range covers diverse environmental conditions. High switching voltage and power capacity enable versatile electrical applications. Explore more products in our Power Relays category at EnvMart for advanced electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a switching current of 16A.
It utilizes an SPST (Single Pole Single Throw) contact configuration.
The coil voltage rating for this relay is 12V DC.
The relay measures 31.5mm in length, 28.5mm in height, and 12.5mm in width.
It can handle a maximum switching AC voltage of 400V AC.
The coil resistance is rated at 400 ohms.
The coil power consumption is 360mW.
The operating temperature ranges from -20°C to a maximum of 85°C.
The contacts are made of silver alloy, ensuring high conductivity and durability.
It complies with VDE, UL, RoHS, REACH, and IEC standards.
It features solder type terminals for connection.
Typical applications include industrial and domestic appliances such as washing machines and tumble dryers.
