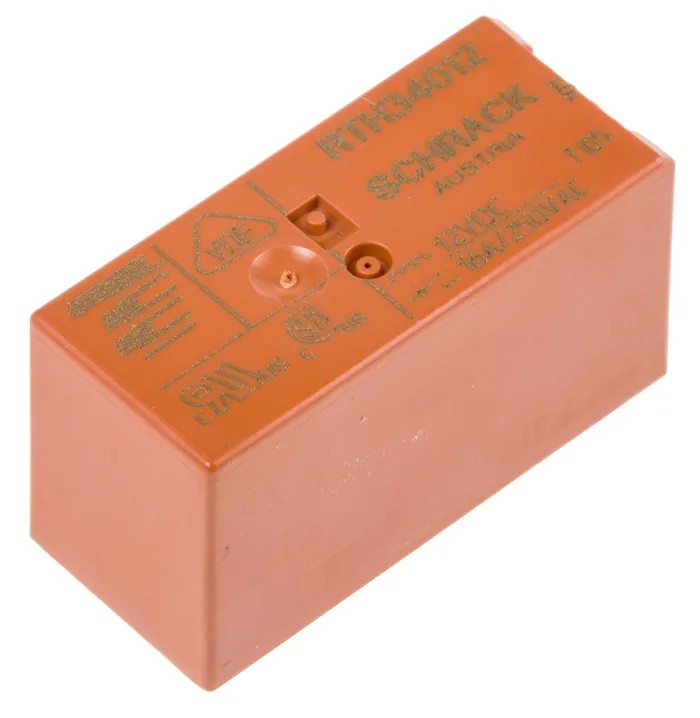

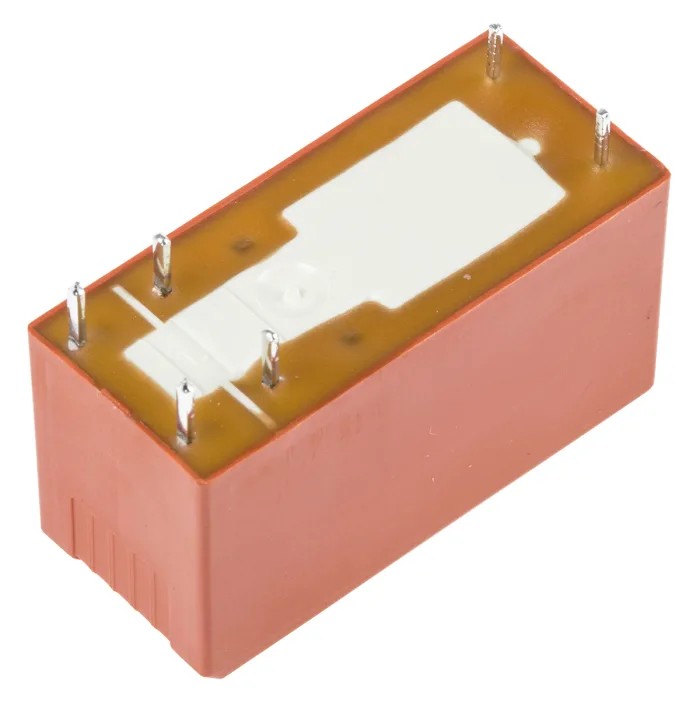

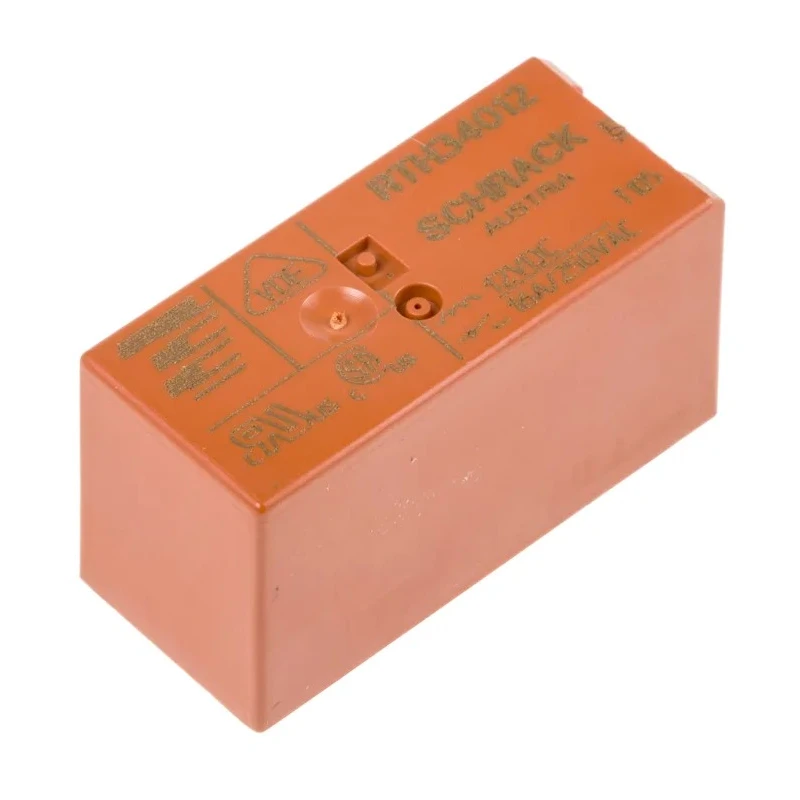

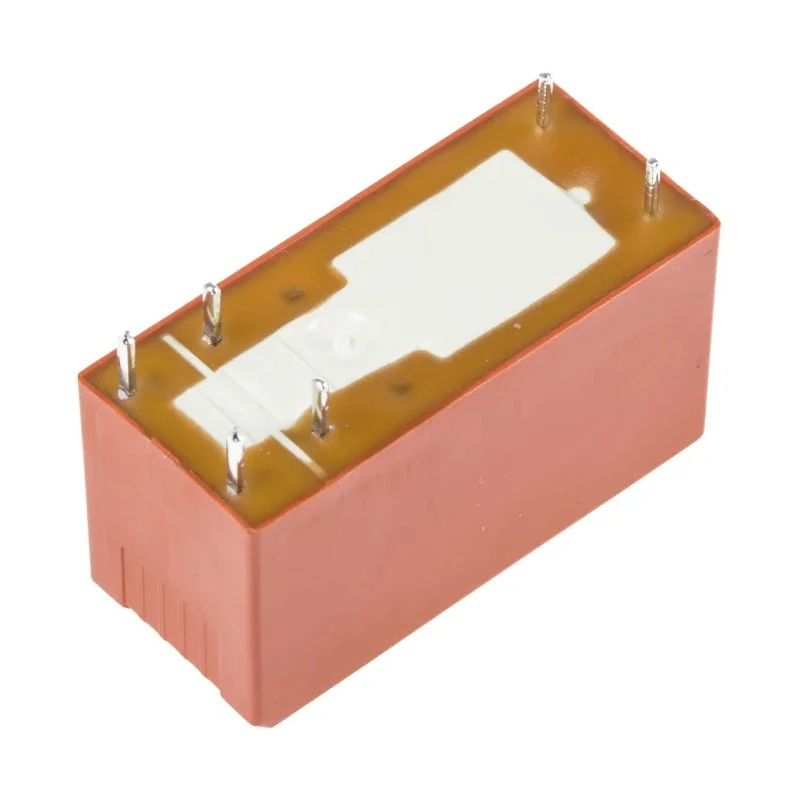

TE Connectivity PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST RTH34012
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTH34012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RTH |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | REACH, ELV, CSA, VDE, UL, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1759Brand: TE ConnectivityManufacturers Part No.: RTH34012Distrelec Article No.: 301-19-737 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for high temperature operation up to 105°C ambient temperature.
- Flux proof orange enclosure with reinforced insulation ensures reliable performance.
- 5mm pinning for through-hole PCB mounting capability.
- Coil power sensitivity of 400mW provides energy-efficient operation.
- Ideal for oven control, cooking plate control, and other industrial applications.
- Silver alloy contact material offering durable and efficient switching.
- Meets standards including REACH, ELV, CSA, VDE, UL, and RoHS compliance.
- Compact size with dimensions 29mm length, 15.7mm height, and 12.7mm width.
Product Description
TE Connectivity RTH34012 PCB Power Relay is a high-quality power relay designed for demanding industrial electrical and automation applications. The relay features a 12V DC coil with a sensitive 400mW coil power, enabling low power consumption and efficiency.
This relay supports a switching current of 16A and contact configuration of SPST, suitable for controlling electrical loads in devices such as ovens and cooking plates. It is built for durability with a reinforced insulation design and a flux-proof orange enclosure that withstands temperatures up to 105°C ambient.
The relay is intended for through-hole PCB mounting employing 5mm pinning and solder terminal type for secure electrical connections. Its compact form factor with length 29mm, height 15.7mm, and width 12.7mm allows for flexible integration into tight circuits.
Constructed with silver alloy contacts, it ensures reliable electrical switching performance and longevity. The coil resistance is optimized at 360 Ω for consistent operation. It supports a maximum switching AC voltage of 400V AC, making it versatile for various industrial power control needs.
Compliant with multiple international standards including REACH, ELV, CSA, VDE, UL, and RoHS, this relay meets stringent safety and environmental requirements. The RTH series is recognized for high temperature and quality performance, making it an essential component in industrial automation, HVAC, manufacturing, and electrical control systems.
Designed for high temperature operation up to 105°C ambient temperature. Flux proof orange enclosure with reinforced insulation ensures reliable performance. 5mm pinning for through-hole PCB mounting capability. Coil power sensitivity of 400mW provides energy-efficient operation.
Ideal for oven control, cooking plate control, and other industrial applications. Silver alloy contact material offering durable and efficient switching. Meets standards including REACH, ELV, CSA, VDE, UL, and RoHS compliance.
Compact size with dimensions 29mm length, 15.7mm height, and 12.7mm width. Maximum switching AC voltage of 400V AC supports various power electronics needs. Coil resistance rated at 360 Ω for stable electrical characteristics.
Explore more power relay options and comprehensive industrial electrical solutions on EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this relay is 16A, making it suitable for controlling electrical loads in various applications.
This model operates with a coil voltage of 12V DC, providing efficient control for electrical circuits.
The dimensions of this relay are 29mm in length, 15.7mm in height, and 12.7mm in width, allowing for compact integration into circuits.
The maximum operating temperature for this relay is 105°C, suitable for high-temperature environments.
This relay features a Single Pole Single Throw (SPST) contact configuration, ideal for various switching applications.
The coil power sensitivity of this model is 400mW, which contributes to its energy-efficient operation.
The contacts of this relay are made from silver alloy, ensuring reliable electrical switching performance.
The minimum operating temperature for this relay is -40°C, allowing it to function in low-temperature environments.
The coil resistance is rated at 360 Ω, providing stable electrical characteristics during operation.
This relay meets several international standards including REACH, ELV, CSA, VDE, UL, and RoHS, ensuring compliance with safety and environmental requirements.
This model is designed for through-hole PCB mounting using 5mm pinning and solder terminal type for secure electrical connections.
The maximum switching AC voltage supported by this relay is 400V AC, making it versatile for various industrial power control needs.
