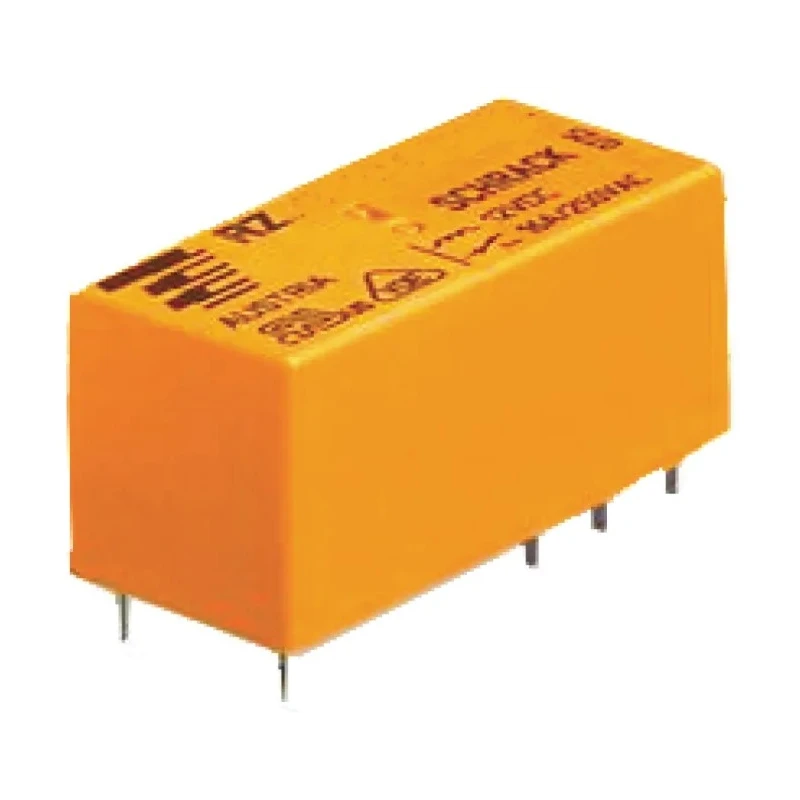

TE Connectivity RZ Series PCB Power Relay SPDT 12V DC Coil 12A Switching Current 400V AC 400mW Coil Power 1-1415899-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 29.00 x 12.70 x 15.70 mm |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RZ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, REACH, IEC, CQC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1718Brand: TE ConnectivityManufacturers Part No.: 1-1415899-0 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Operates with a coil voltage of 12V DC and coil power consumption of 400mW.
- Supports a switching AC voltage of up to 400V AC for versatile applications.
- Features a SPDT contact configuration with silver alloy contacts for reliable performance.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height fit standard PCB layouts.
- Designed for a temperature range from -40°C to 85°C for durable use in varied environments.
- Constructed from robust materials meeting VDE, UL, RoHS, REACH, IEC, and CQC standards.
- Equipped with solder terminals and 3.5mm pinning to ensure stable PCB connectivity.
- Meets appliance industry safety requirements per IEC60335-1.
Product Description
TE Connectivity 1-1415899-0 PCB Power Relay from the RZ Series offers a reliable SPDT contact configuration with a 12V DC coil and 12A switching current, making it suitable for a wide range of industrial and electrical automation applications. Designed for PCB mounting, this relay supports switching AC voltage up to 400V and consumes only 400mW coil power, optimizing power efficiency.
Its compact size with dimensions 29.00 x 12.70 x 15.70 mm and solder terminal type ensures easy integration on printed circuit boards. The silver alloy contacts provide long-lasting conductivity and durability. This relay operates safely within a temperature range of -40°C to 85°C, making it suitable for diverse environmental conditions.
The relay meets multiple international standards including VDE, UL, RoHS, REACH, IEC, and CQC, ensuring compliance and quality assurance for industrial automation, manufacturing machinery, HVAC systems, and electrical control panels. Robust reinforced insulation rated at 5kV/10mm provides enhanced protection against electrical faults and safety hazards.
Designed for high reliability, the RZ Series relay is flux tight with silver nickel contacts and is compatible with standard 3.5mm pinning to ensure a secure connection to PCBs. Its compliance with appliance industry standard IEC60335-1 highlights its suitability for electrical appliances and control devices.
Operates at 12V DC coil voltage with 400mW coil power consumption. Supports 12A switching current at 400V AC switching voltage. SPDT contact configuration with silver alloy contacts. Compact dimensions: 29 x 12.7 x 15.7 mm for PCB mounting.
Operating temperature range from -40°C to 85°C. Meets VDE, UL, RoHS, REACH, IEC, and CQC standards. Features reinforced insulation of 5kV/10mm spacing. Solder terminal type with 3.5mm pinning. Suitable for industrial automation, manufacturing, HVAC, and electrical applications.
EnvMart offers this high-quality TE Connectivity power relay for use in advanced industrial and automation systems, reinforcing performance and safety standards.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay operates with a coil voltage of 12V DC and has a coil power consumption of 400mW.
It supports a maximum switching current of 12A and a switching AC voltage of up to 400V AC.
The dimensions of this relay are 29.00 mm in length, 12.70 mm in width, and 15.70 mm in height.
This model features a Single Pole Double Throw (SPDT) contact configuration.
It is equipped with solder terminals and has a pinning of 3.5mm for stable PCB connectivity.
The relay can operate within a temperature range of -40°C to 85°C.
It meets several international standards including VDE, UL, RoHS, REACH, IEC, and CQC.
The contacts are made from silver alloy, providing reliable conductivity.
This relay is designed for PCB mounting, making it suitable for integration into printed circuit boards.
It features reinforced insulation rated at 5kV/10mm, enhancing protection against electrical faults.
This power relay is suitable for industrial automation, manufacturing machinery, HVAC systems, and electrical control panels.
The coil resistance is 360Ω.
