TE Connectivity PCB Power Relay 24V dc Coil 5A Switching Current SPDT 2-1393219-2

Free Delivery in India | Lowest Global Shipping Charges

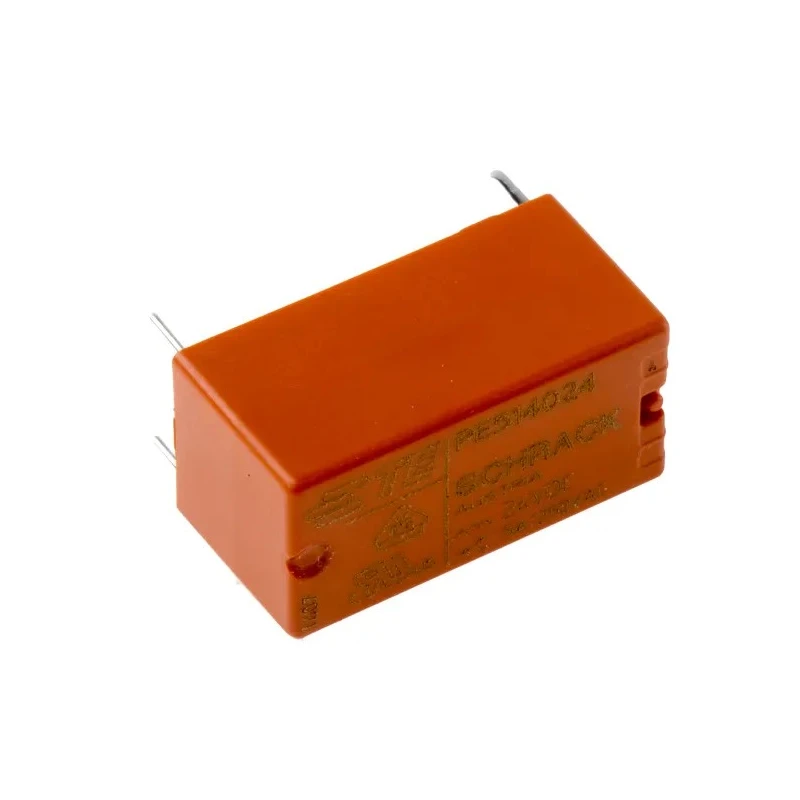

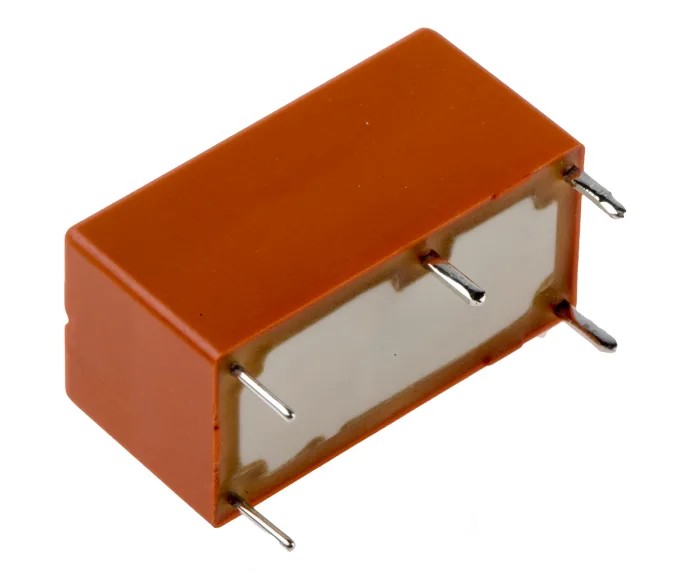

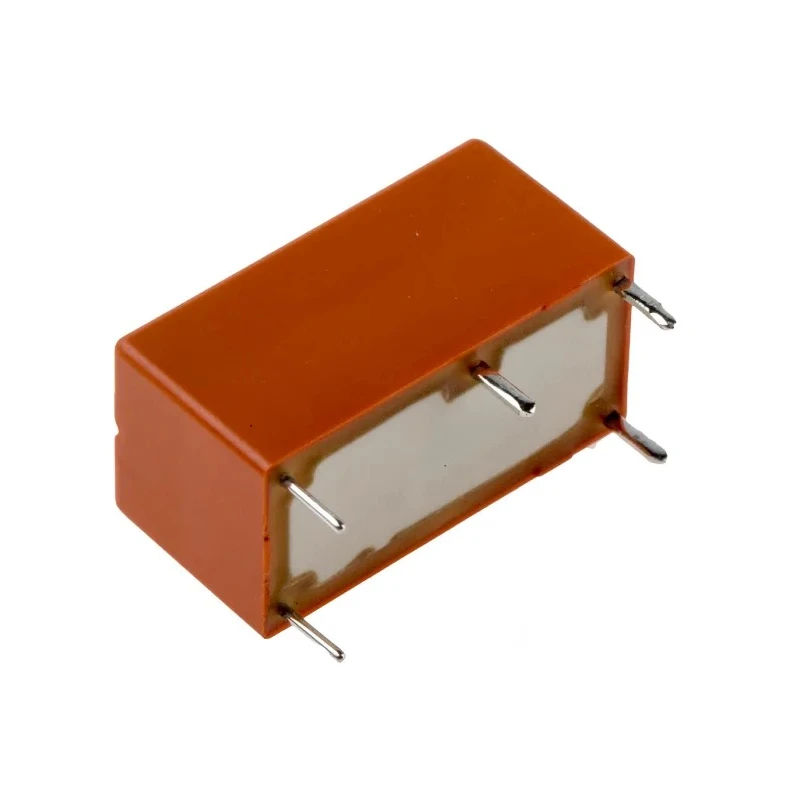

TE Connectivity PCB Power Relay 24V dc Coil 5A Switching Current SPDT 2-1393219-2

Name: TE Connectivity PCB Power Relay 24V dc Coil 5A Switching Current SPDT 2-1393219-2
Brand: TE Connectivity
SKU: 358030
Price: 6.38 USD
Availability: InStock



Category Power Relays Brand TE Connectivity Condition New

Specifications

Country of Origin	Austria
Brand	TE Connectivity
Height	10mm
Operating Temperature Range	-40 to +85°C
Length	20mm
Width	10mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	PE
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	5A
Terminal type	Solder
Standards/Approvals	UL, RoHS, REACH, IEC
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	718-1705Brand: TE ConnectivityManufacturers Part No.: 2-1393219-2Distrelec Article No.: 30221329
Coil Resistance	2.7kΩ
Coil Voltage	24V dc
Switching AC Voltage	400V ac
Coil Power	200 mW
High Coil sensitivity	200mW

Key Features

Operates with a coil voltage of 24V dc ensuring low power consumption.
Single Pole Double Throw (SPDT) contact configuration suitable for versatile circuit control.
Designed for mounting on printed circuit boards (PCB) with solder terminal type for secure connections.
Supports switching current up to 5 amps and switching AC voltage up to 400V ac.
High coil sensitivity of 200mW reduces energy use during operation.
Operating temperature range from -40°C to 85°C for robust performance in harsh environments.
Made with silver alloy contacts to ensure durability and excellent conductivity.
Complies with UL, RoHS, REACH, and IEC standards assuring quality and safety.

Product Description

TE Connectivity 2-1393219-2 PCB Power Relay features a 24V dc coil and 5A switching current with Single Pole Double Throw (SPDT) contact configuration. This relay is engineered for use in industrial electronics, household appliances, and control equipment, offering reliable operation with high coil sensitivity of 200mW which reduces power consumption.

Designed to be mounted on PCBs, it includes solder terminals to ensure secure and durable electrical connections. The relay supports a switching AC voltage of up to 400V ac and can operate efficiently within a temperature range from -40°C to 85°C, making it suitable for demanding environmental conditions.

The compact relay housing dimensions are 20mm in length, 10mm in width, and 10mm in height, enabling easy integration in tight spaces. The contact material is silver alloy, enhancing the relay's conductivity and longevity. This product complies with internationally recognized standards including UL, RoHS, REACH, and IEC, ensuring safety and environmental compliance.

Manufactured in Austria, this PCB power relay is ideal for various industrial, laboratory, and commercial applications where precise and dependable switching is required. Its PE series design provides high coil sensitivity and versatile functionality for control systems, automation, and electronic circuits.

Operates on 24V dc coil voltage with low coil power consumption of 200mW. Single Pole Double Throw contact configuration for multiple switching options. PCB mounting with solder terminal type for secure electrical connections.

Handles switching currents up to 5A and switching voltages up to 400V ac. Robust operating temperature range from -40°C to +85°C for reliable use. Compact dimensions make it suitable for space-constrained applications. Contact material silver alloy for excellent conductivity and durability.

Complies with UL, RoHS, REACH, and IEC standards. Manufactured in Austria ensuring premium quality. Explore the wide range of Power Relays and related products at EnvMart, designed for industrial, electrical, and automation needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The relay operates with a coil voltage of 24V dc, ensuring low power consumption during operation.

It supports a maximum switching current of up to 5 amps.

This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.

The relay has compact dimensions of 20mm in length, 10mm in width, and 10mm in height, making it suitable for space-constrained applications.

It operates efficiently within a temperature range from -40°C to 85°C, suitable for demanding environmental conditions.

This unit features solder terminals for secure and durable electrical connections on printed circuit boards.

The relay has a low coil power consumption of 200mW, contributing to its high coil sensitivity.

It can handle a maximum switching AC voltage of up to 400V ac.

The contacts are made of silver alloy, which enhances conductivity and durability.

It complies with UL, RoHS, REACH, and IEC standards, ensuring safety and environmental compliance.

This model is manufactured in Austria, ensuring quality in production.

It is engineered for use in industrial electronics, household appliances, and control equipment, providing reliable operation in various applications.
