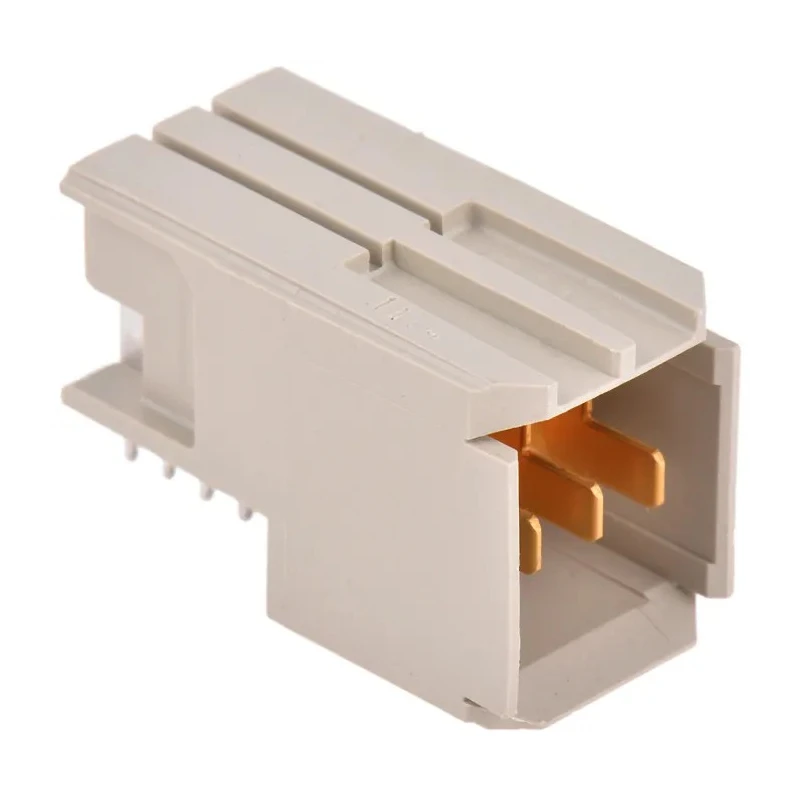

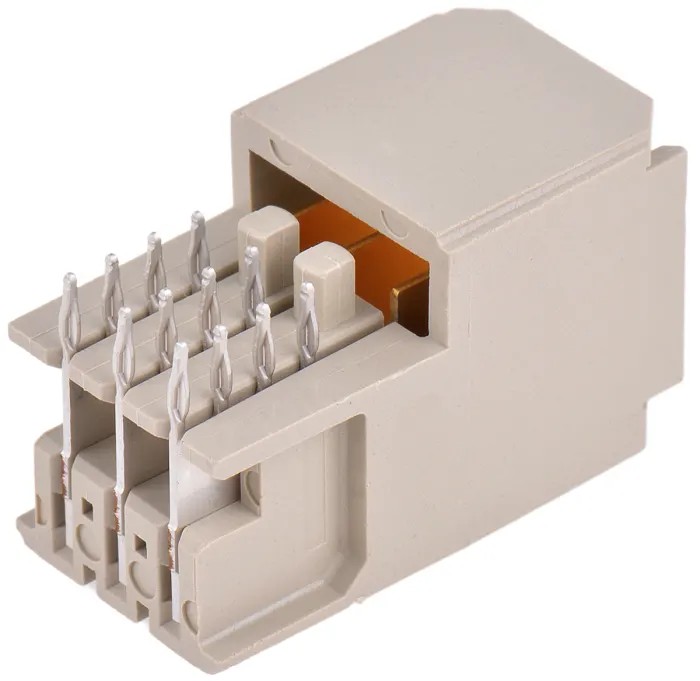

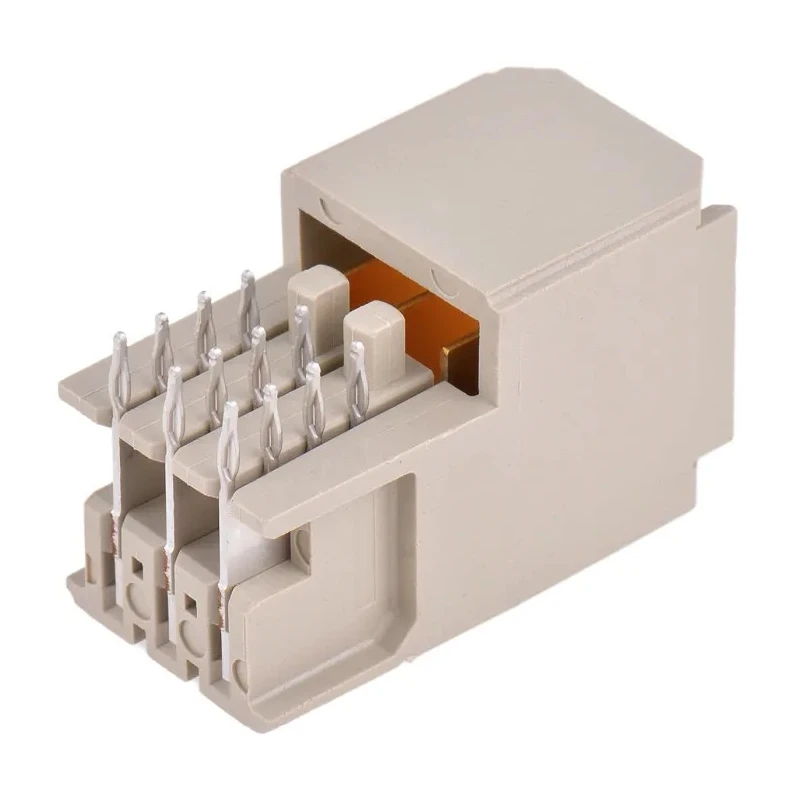

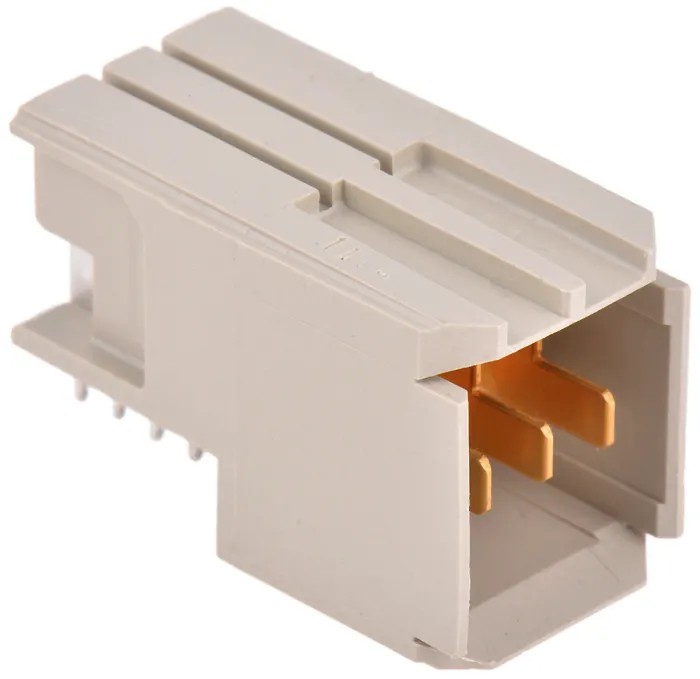

TE Connectivity Z-PACK HM 2 mm Pitch Universal Power Module Backplane Connector Right Angle Male 1 Row 3 Way 5-5223961-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 10A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | Z-PACK HM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1550PBrand: TE ConnectivityManufacturers Part No.: 5-5223961-1 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Male |
| Backplane Connector Type | Universal Power Module |
Key Features
- The connector features a 2 mm pitch for precise board-to-board interfacing.
- Its housing is made of durable liquid crystal polymer ensuring thermal stability.
- The contacts are phosphor bronze with gold over nickel plating for reliable conductivity and corrosion resistance.
- It supports a voltage rating of 250 V and a continuous current of 10 A.
- Designed for through-hole mount type with a single row configuration.
- The connector operates efficiently in a temperature range from -55°C to 125°C.
- Compatible with TE Connectivity's Z-PACK HM series for universal power modules.
- Ideal for applications involving motherboard and backplane interconnections in electronic and industrial equipment.
Product Description
TE Connectivity 5-5223961-1 is a high-quality universal power module backplane connector engineered for reliable board-to-board electrical connections in industrial and electronic applications. Featuring a 2 mm pitch and right angle male orientation, it is designed to deliver dependable performance in compact layouts.
The housing utilizes liquid crystal polymer material providing excellent mechanical strength and thermal stability, suitable for harsh environments. Contact materials include phosphor bronze with gold over nickel plating, ensuring optimal electrical conductivity and long-term corrosion resistance.
Operating within a wide temperature range of -55°C to 125°C and supporting up to 250 V and 10 A, this connector is well suited for demanding power and signal transmission tasks. Its through-hole mounting and single-row design facilitate secure and easy PCB integration.
The 3-position modular configuration is compatible with TE Connectivity’s Z-PACK 2 mm HM interconnection systems, allowing seamless interface with daughterboards and motherboards, making it ideal for use in industrial automation, telecommunications, and other electronics manufacturing processes.
The connector has a 2 mm pitch for precise board alignment. Liquid crystal polymer housing ensures durability and performance stability. Phosphor bronze contacts plated with gold over nickel provide excellent conductivity.
Voltage rating of 250 V and current capacity of 10 A. Right angle male connector suitable for through-hole mounting. Operates efficiently from -55°C to 125°C. Compatible with Z-PACK HM series for universal power modules.
Designed to connect fixed boards and daughterboards in PCBs.
This TE Connectivity backplane connector is essential for industrial, laboratory, and electronic manufacturing environments requiring reliable, high-performance power module solutions. It helps ensure operational stability and reduces downtime in critical electronic systems. Browse the full range of TE Connectivity products and related backplane Connectors at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 250 V.
It supports a continuous current of 10 A.
The connector features a 2 mm pitch for precise board-to-board interfacing.
The housing is made of liquid crystal polymer, while the contacts are phosphor bronze with gold over nickel plating.
It operates efficiently in a temperature range from -55°C to 125°C.
This model features 3 contacts in its configuration.
It is designed for through-hole mounting.
The connector has a right angle male orientation.
Yes, it is compatible with TE Connectivity's Z-PACK HM series for universal power modules.
The connector features male contacts.
The country of origin for this connector is India.
It is ideal for applications involving motherboard and backplane interconnections in electronic and industrial equipment.
